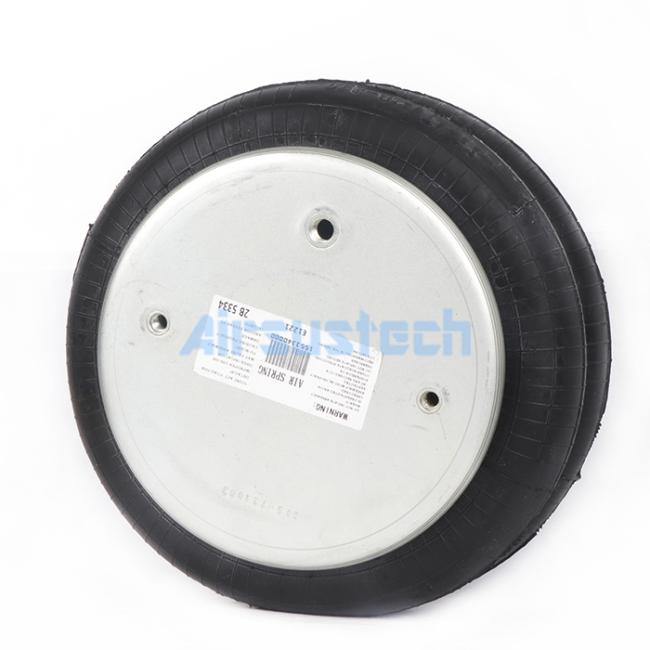

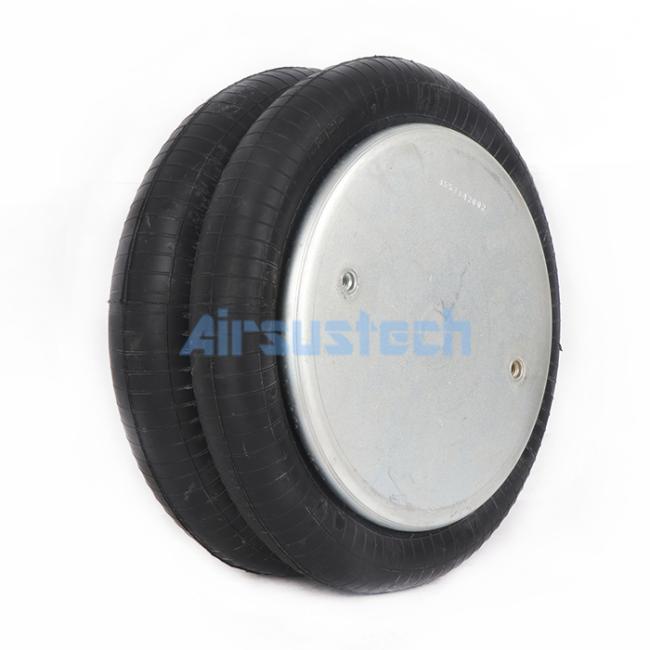

Imperial Suspension Air Spring for Freightliner 16-10769-000 Goodyear 2B12-309

Imperial Suspension Air Spring for Freightliner 16-10769-000 Goodyear 2B12-309

Product Description

AIRSUSTECH air springs are available in single, double, or triple bellows designs and perform a wide range of functions in different suspensions and applications. AIRSUSTECH air springs can be found in numerous trucks, trailers, and industrial equipment. These air springs are characterized by their ability to perform linear or angular movements while requiring less space than conventional cylinders. They are highly adaptable and perform a wide range of functions in pressing, clamping, rolling, conveying, lifting, and packaging machines. In addition, they can act as shock absorbers, effectively reducing the damaging effects of vibration.

OEM Cross References

Freightliner 16-10769-000

Firestone W01-358-7400 / 22
Contitech FD 330-22 313
Goodyear 2B12-309 / 316
Goodyear 578-92-3-309
Triangle 6316 / 4313
Fab Tek 04-0080
GMC 693230
Granning 2726
Hendrickson S1013
Neway 90557016
R & S Truck & Body 1027519
Watson & chalin As0003
Ridewell 1003587400C
Dayton 354700
Vol-vo 3130488
Scania 670199

Product Detailed Data

Important Tips to Remember When Installing New Equipment

1. Inspect the balance valve, linkage and transmission parts for wear and damage and replace damaged parts if necessary.
2. Check the shock absorbers for leaks and perform a shock test. Faulty shock absorbers must be replaced.
3. Once the air tube is disconnected, inspect it for cracks or other damage along its entire length. Replace worn parts.
4. With the air spring removed, the other parts of the air suspension become more accessible. Inspect the frame hangers, trailing arm bushings, torsion bars, trailing arms and air spring brackets for wear or damage. Parts can also be replaced if necessary.
5. Inspect the outer spring bellows air bearing for external damage, deformation, sharp edges and proper connections.
6. Before installing a new unit, clean the air spring mounting plates to ensure they are properly installed in the suspension.
7. Always use new connecting bolts for installation and pay attention to the tightening torque. Never use old bolts as they may fall off.
8. Check the balance valve connection to ensure it is working properly. Under load, the linkage must move from the neutral position to the input position. This allows air to enter the spring, which returns the lever to the neutral position. This allows air to enter the spring, which returns the lever to the neutral position. This opens the bleed valve, allowing air to escape until the lever returns to the neutral position. Then check the ride level.
