Industrial Convoluted Air Spring Phoenix SP1B04 for Veegoo Machine Air Suspension
Industrial Convoluted Air Spring Phoenix SP1B04 for Veegoo Machine Air Suspension

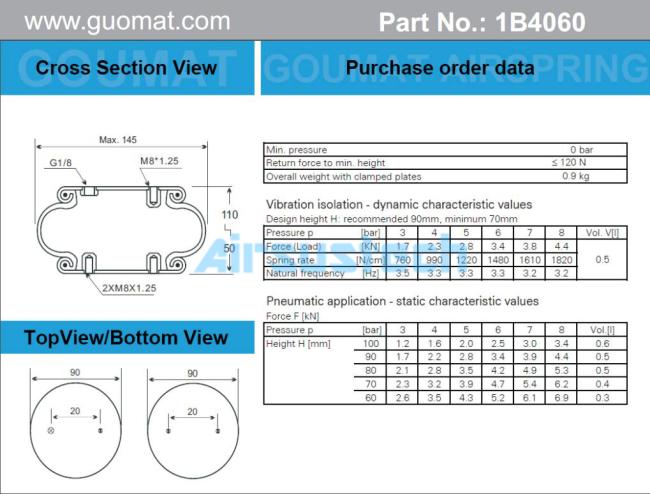

Product Information
| Nut/Blind nuts Nut length: no Number of screws on the top cover: 2 Number of bottom cover screws: 2 Top cover plate screw (nut) tooth: 2×M8 Top cover screw center distance: 20 mm Screw (nut) teeth of the bottom cover plate: 2×M8 Center distance of bottom cover plate screw: 20 mm |
| Air hole/air inlet/air connector Air hole/air inlet: G1/8 |
| Cover plate Top cover diameter: 90 mm Diameter of bottom cover: 90 mm |
|
Rubber bellows |
OEM Cross References
Continental Contitech FS 40-6, FS40-6
Continental Contitech FS 406, FS406
Continental Contitech FS 40 6, FS40 6
Phoenix Air Bellow SP 1B 04
Phoenix Air Bellow SP 1B04
Phoenix Air Bellow SP1B04
Weforma Air Spring WBE 100-E1, WBE100-E1
Weforma Air Spring WBE 100E1, WBE100E1
Weforma Air Spring WBE 100 E1, WBE100 E1
The Description of AIRSUSTECH Air Springs
Unmatched Durability & Performance
AIRSUSTECH air springs deliver exceptional longevity and reliability across diverse industrial applications. Engineered with fabric-reinforced Neoprene/Natural Rubber flex members and corrosion-resistant end retainers, they withstand harsh operating conditions while maintaining precise performance.
Comprehensive Product Range
- Choose from our industry-leading selection:
- Single/Double/Triple Convoluted Bellows – Optimized stroke length and load capacity
- Rolling Lobe Designs – Superior performance for high-cycle applications
- Sleeve-Type Units – Space-efficient solutions for compact installations
Key Features:
- Wide size range for perfect application matching
- Custom end retainers for seamless integration
- Pressure ratings from 0.3-0.7MPa for versatile performance
Ideal For:
- Industrial automation systems
- Heavy equipment vibration control
- Precision machinery isolation
- Transportation suspension upgrades
Other Kinds of Industrial Air Springs
| 1B12-305 | FS 40-6 CI | SP2906 |
| 1B14-350 | FS 50-5 CI | SP2334 |
| 1B14-352 | FS 70-7 CI | SP2913 |
| 1B14-364 | FS 100-10 CI | SP1536 |
| 1B15-376 | FS 120-10 CI | SP1537 |
| 1B15-378 | FS 120-12 CI | SP2523 |
| 1B12-313 | FS 200-10 CI | SP1540 |
| 1B14-351 | FS 310-12 CI | SP1543 |
| 1B14-362 | FS 330-11 CI | |
| 1B15-377 | FS 330-14 CI | |
| 1B15-375 | FS 530-11 CI | |
| FS 530-14 CI | ||
| FS 960-12 CI | ||
| FS 1330-11 CI |

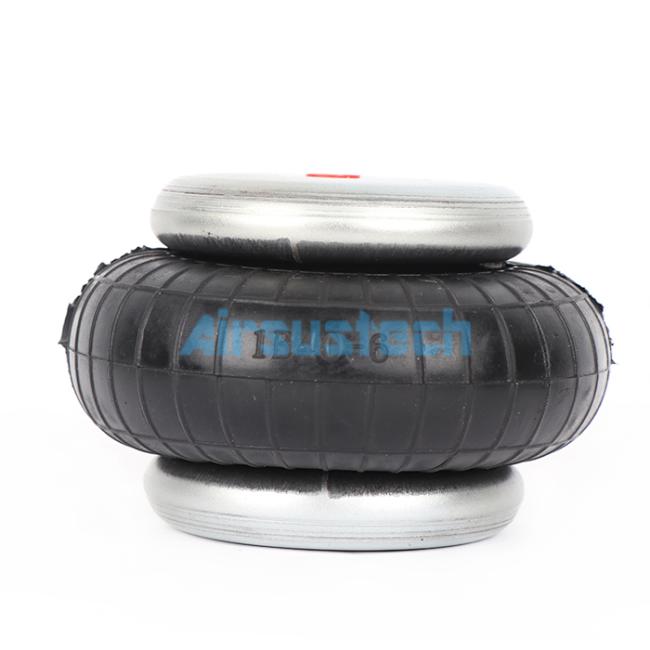

The Real Photos of 1B4060
