Industrial Single Convoluted Air Spring 1B5171 with 1/4NPTF Air Inlet Air Actuator

Industrial Single Convoluted Air Spring 1B5171 with 1/4NPTF Air Inlet Air Actuator

Product Description

Due to its low quality, good comfort and fatigue resistance, the rubber air spring has the advantages of long service life, vibration reduction and noise reduction. Widely used in industrial machinery, instrumentation and other equipment. The production process and production process of the surface fabric of the air spring machine penetrate into the gap of the fabric, and the bonding of the process rubber and the fabric of the rubber rope formed by tight carding. Reduce shrinkage: The elastic deformation of the rubber should be reduced, so that the surface of the pressed rubber wire is smooth and the dimensional change is small. The air spring film required for the production of air springs usually uses a three-roller air spring machine. Through this process, it embodies the protection of the air spring in many ways, thus prolonging its service life.

Product Specifications

[1] Stroke: 105 mm

[2] Minimum height: 55 mm

[3] Maximum height: 160 mm

[4] Maximum diameter: 325 mm

[5] Air fitting: 1/4NPTF

[6] Threaded hole of top plate: 3×3/8-16UNC

[7] Threaded hole of bottom plate: 4×3/8-16UNC

[8] Cover plate diameter: 231 mm

[9] Center distance diameter: 157.5 mm

The Applications of AIRSUSTECH Convoluted Air Bags

• Large Drying Machines
• Vibratory Conveyors
• Electronic Equipment
• Compressors
• Conveyor Loading Points
• Textile Looms
• Rotary Shaft Actuators
• Conveyor or Transfer Systems
• Vertical Lift Force for Platforms and Rotating Tables
• Injection or Ejection of Parts in Manufacturing Equipment
• Scissor Lifts
• Clutch and Brake Systems
• Amusement Park Rides
• Palletizers, Label Applicators in Packaging Equipment
• Bin-Tilting Devices
• Presses
• For Conveyor End Stop
• Industrial Equipment
• Machine Accessories
• Industrial Lifting Air Bags
• Excavator
• High-Speed Punch Press Balance Die Pad

Other Single Types Rubber Air Bellows OEM Numbers

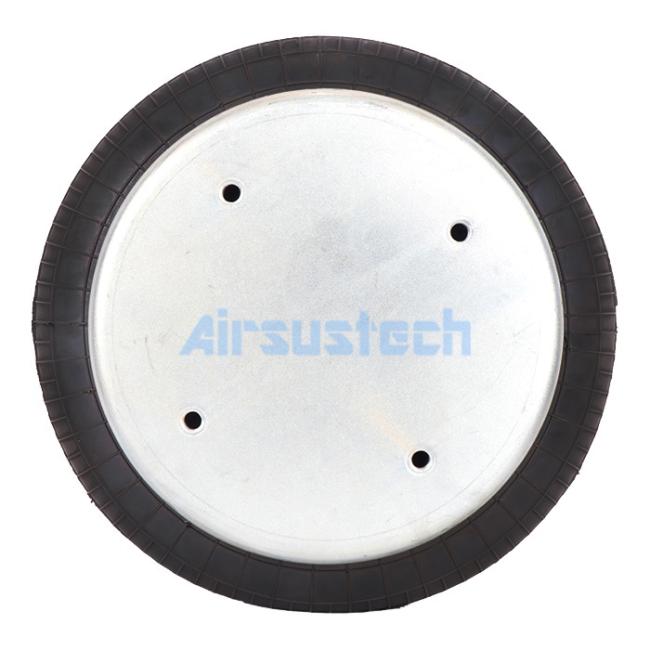

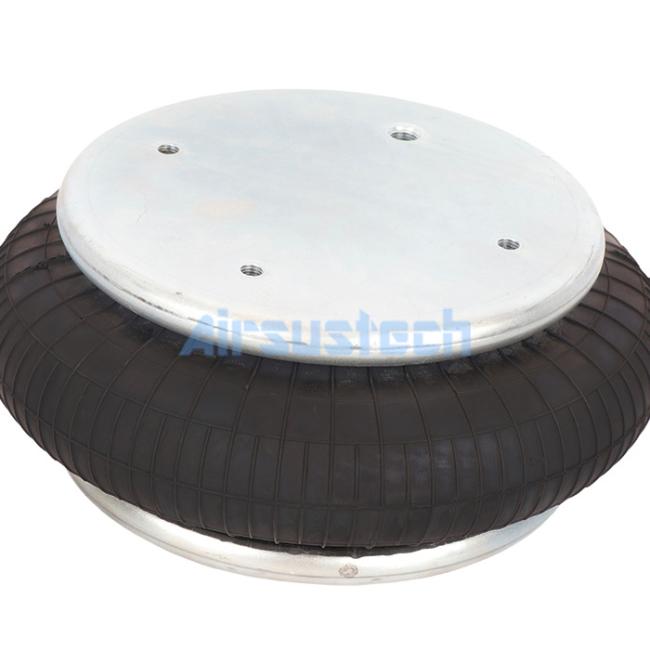

Product Photos
