Phoenix SP 1 B 07 Air Spring Assembly 1B1209P Industrial Convoluted Rubber Bellows
Price:
Negotiable
MOQ:
1 Piece
Delivery Time:
3-8 Working Days
Brand:
AIRSUSTECH
Product Description
Phoenix SP 1 B 07 Air Spring Assembly 1B1209P Industrial Convoluted Rubber Bellows
Phoenix SP 1 B 07 Air Spring Assembly 1B1209P Industrial Convoluted Rubber Bellows
Technical Datas: AIRSUSTECH 1B1209 VS. Phoenix SP 1 B 07
| Model Number | 1B1209 | SP 1 B 07 |
|---|---|---|
| Center Distance Diameter | 53 mm | 54 mm |
| Cover Plate Width | 135 mm | 134 mm |
| Distance Between Air Hole and Holes | 26 mm | 27 mm |
| Design Height | - | 113 mm |
| Minimum Height | 50 mm | - |
| Max. Extended Height | 115 mm | - |
| Air Connection | G1/4 | G1/4 |
| Threaded Hole Type | 2×M8 | 2×M8 |
| Maximum Outer Diameter | 215 mm | 215 mm |
Same Air Bellows Other OEM Numbers
AIRSUSTECH: 1B1209P
Cross References: Phoenix SP 1 B 07
Cross References: Phoenix SP 1 B 07
AIRSUSTECH: 1B1209 M8-G1/4
Cross References: Firestone W01-M58-6166, Contitech FS 120-9, Dunlop(FR) 8''×1 S08100, Bos ch 822419008, Weforma WBE 300-E2
Cross References: Firestone W01-M58-6166, Contitech FS 120-9, Dunlop(FR) 8''×1 S08100, Bos ch 822419008, Weforma WBE 300-E2
AIRSUSTECH: 1B1209 M8-G3/4
Cross References: Firestone W01-M58-6165, Contitech FS 120-9, Dunlop(FR) 8''×1 S08101, Bos ch 822419003, Weforma WBE 300-E1, Festo EB-215-80, Norgren PM/31081(8×1), Airtech 140293 / 111003 / 1B-190FB, Megatech 1S120-9 3/4 M8
Cross References: Firestone W01-M58-6165, Contitech FS 120-9, Dunlop(FR) 8''×1 S08101, Bos ch 822419003, Weforma WBE 300-E1, Festo EB-215-80, Norgren PM/31081(8×1), Airtech 140293 / 111003 / 1B-190FB, Megatech 1S120-9 3/4 M8
Industrial Air Springs Key Functions in Material Handling Systems
- Load Support and Leveling: They maintain consistent platform height by automatically adjusting internal air pressure, ensuring stability whether the load is light or heavy. This is crucial for conveyor systems and lifting tables where uneven surfaces could cause operational issues.
- Shock and Vibration Absorption: Air springs dampen vibrations and shocks from machinery like conveyor belts or industrial mixers, protecting both the equipment and fragile goods during transport. This reduces long-term maintenance needs and noise levels.
- Precise Height Adjustment: By regulating air pressure, operators can finely control the height of platforms (e.g., scissor lifts or dock levelers), facilitating ergonomic loading/unloading and seamless integration with other machinery.
Industrial air springs are vital components in material handling systems, leveraging compressed air to provide superior load support, vibration isolation, and precise height adjustment. Their application enhances efficiency, safety, and durability across various equipment types.
FAQ
Q: I can not find out the items what i want from your website, can you offer the products i need?
A: YES.One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
Q: What is your advantage?
A: (1) High quality - Natural rubber.
(2) Fast delivery - Stock sales.
(3) Best service - 24 hours online.
(2) Fast delivery - Stock sales.
(3) Best service - 24 hours online.
Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.

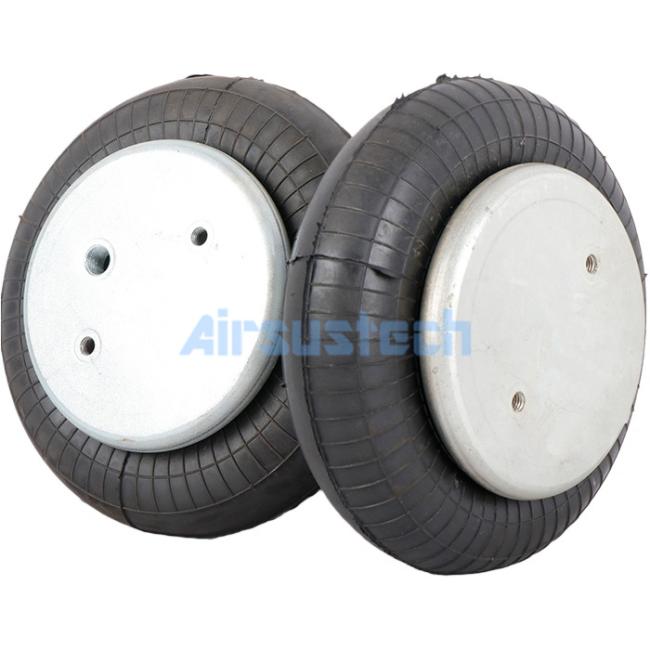

The Detailed Pictures of 1B1209P Industrial Air Bags
Sample Room
Advanced Production Equipment
