Industrial Air Spring 2H230214 Flange Air Bellows Actuator for Vibration Test Bench
Price:
Negotiable
MOQ:
1 Piece
Delivery Time:
3-8 Working Days
Brand:
AIRSUSTECH
Product Description
Industrial Air Spring 2H230214 Flange Air Bellows Actuator for Vibration Test Bench
High-performance damping component designed for vibration test benches, providing stable isolation and precision performance in demanding testing environments.
2H230214 Air Spring Description
The 2H230214H air spring serves as a critical high-performance damping component within vibration test equipment. This specialized component is internally charged with compressed air, utilizing its unique structural design to effectively absorb and mitigate external vibrations and impacts through controlled cycles of air compression and release. Operating on advanced pneumatic principles, it ensures stable and reliable isolation in precision testing environments, contributing to accurate results and extended equipment service life.
Technical Specifications
| C-to-C Distance Diameter | 185 mm |
| Compressed Height | 88 mm |
| Expanded Height | 270 mm |
| Working Stroke | 182 mm |
| Flange Ring Diameter | 223 mm |
| Design Height | 214 mm |
| Max. Outside Diameter | 255 mm |
| Mounting Hole | 8 x M10 |
Vibration Test Bench Applications
Air springs are essential components in vibration testing rigs, providing elastic support using compressed air to isolate vibrations, dampen shocks, and deliver stable support—crucial for obtaining accurate and reliable test results.
Working Principle and Core Advantages
- Air springs are filled with compressed gas that deforms when subjected to vibration and impact, effectively absorbing and buffering vibration energy
- Compared to traditional steel springs, their core advantage lies in adjustability: changing internal air pressure allows flexible adjustment of stiffness and load-bearing capacity to adapt to different test conditions
Key Applications in Vibration Testing
- Support and Vibration Isolation: Fundamental support elements that effectively isolate external environmental vibrations and equipment-generated vibrations
- Precision Testing Guarantee: Essential for high-precision testing of electronic components and optical devices, filtering minute vibrations to ensure measurement accuracy
- Equipment Protection: Significantly reduce vibrations and noise transmission, protecting testing equipment components and extending service life
AIRSUSTECH 2H Model Industrial Air Spring Series
| Product Number | Nominal Diameter (mm) | 0.7Mpa Max.Diameter | Max. Outer O.D. (mm) | Center Distance (mm) | Bolts Quantity |
|---|---|---|---|---|---|
| 2H130142 | 80 | 150 | 140 | 112 | 6 |
| 2H156130 | 118 | 170 | 135 | 115 | 6 |
| 2H160166 | 100 | 175 | 160 | 135 | 6 |
| 2H168132 | 120 | 185 | 180 | 152 | 8 |
| 2H200142 | 150 | 220 | 180 | 152 | 8 |
| 2H220200 | 148 | 250 | 203 | 175 | 8 |
| 2H230214 | 150 | 255 | 223 | 185 | 8 |
| 2H235152 | 180 | 250 | 203 | 175 | 8 |
| 2H235210 | 180 | 250 | 203 | 175 | 8 |
| 2H250180 | 185 | 270 | 183 | 145 | 8 |
| 2H252163 | 192 | 275 | 213 | 175 | 8 |
| 2H260230 | 170 | 290 | 203 | 175 | 8 |
| 2H280214 | 200 | 305 | 275 | 237 | 12 |
| 2H290265 | 205 | 320 | 250 | 220 | 12 |
| 2H300170 | 240 | 320 | 260 | 226 | 12 |
| 2H310214 | 230 | 330 | 300 | 263 | 12 |
| 2H330214 | 250 | 355 | 322 | 284 | 14 |
| 2H330254 | 230 | 355 | 300 | 263 | 12 |
| 2H350255 | 250 | 380 | 309 | 271 | 14 |
| 2H360214 | 280 | 380 | 247 | 309 | 16 |
| 2H380221 | 300 | 405 | 358 | 320 | 16 |
| 2H400217 | 320 | 430 | 396 | 358 | 18 |
| 2H400255 | 300 | 430 | 358 | 320 | 16 |
| 2H430255 | 330 | 460 | 398 | 360 | 18 |
| 2H480217 | 400 | 510 | 476 | 438 | 20 |
| 2H520217 | 440 | 550 | 508 | 470 | 24 |
| 2H580214 | 500 | 600 | 568 | 530 | 24 |
| 2H630262 | 530 | 660 | 610 | 560 | 30 |
| 2H680262 | 580 | 710 | 642 | 605 | 32 |

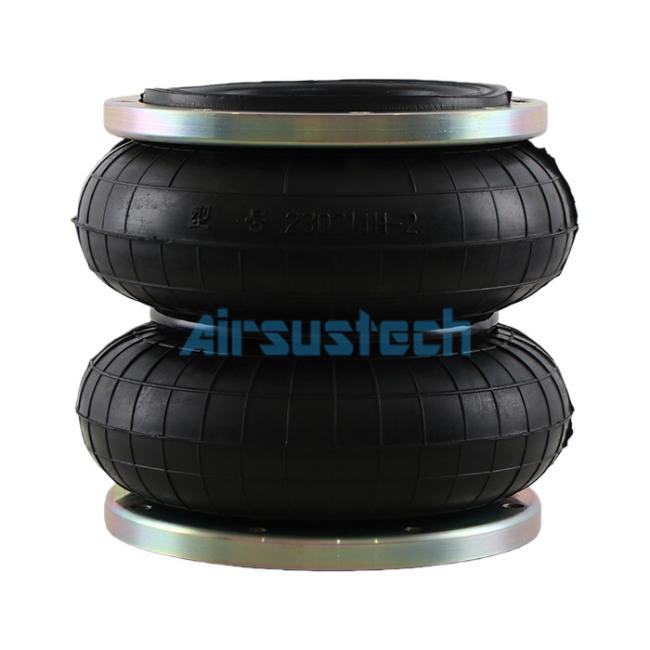

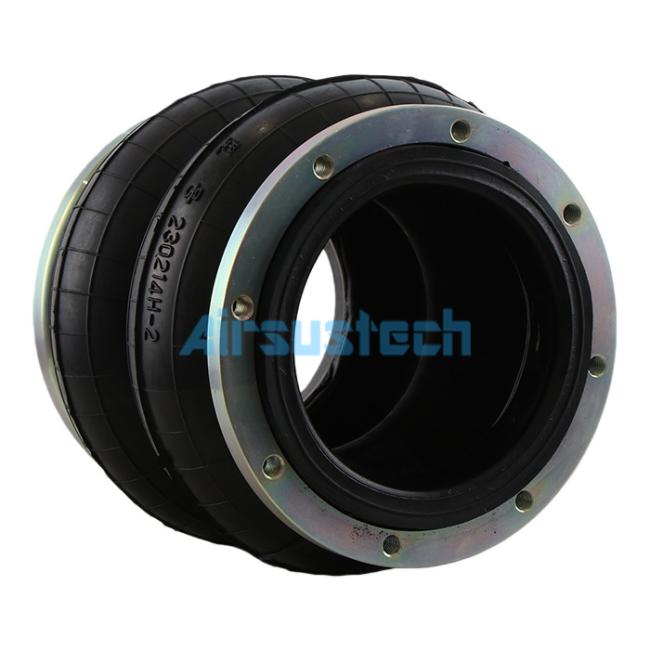

2H230214 Flange-type Rubber Air Bellows
