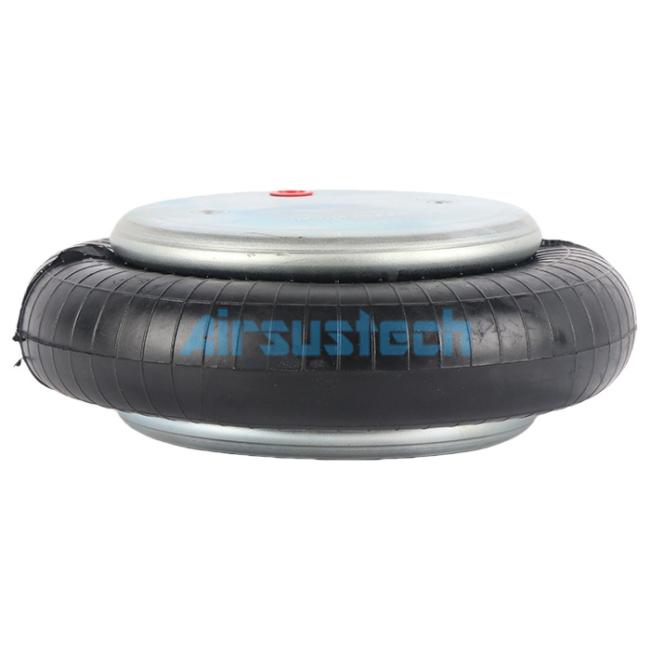

Oria M-35 Single Convoluted Bellows Type G1/4 Air Inlet SP 1B12 Phoenix Air Spring
This industrial single convoluted air spring is crafted from premium natural rubber and reinforced with steel cover plates. It delivers exceptional performance with a minimum compressed height of 50 mm, maximum extended height of 160 mm, and working stroke of 110 mm.
- Model: AIRSUSTECH NO. 1B6910
- Cover plate diameter: 160 mm
- Center-to-center distance: 89 mm
- Distance between air inlet and threaded hole: 44.5 mm
- Maximum outer diameter at 0.7 MPa: 260 mm
- Air connection: G1/4
- Installation: 2x M10 screw nuts
- Operation: Pneumatic inflation
- Komatsu Press Machine
- Industrial Washing Machines
- Agricultural Machinery
- Textile Machine
- Vibratory Conveyors
- Electronic Equipment
- Compressors
- Conveyor Loading Points
- Textile Looms
- Rotary Shaft Actuators
- Conveyor or Transfer Systems
With the rapid advancement of China's manufacturing sector, the substitution of imported air springs with high-quality domestic alternatives has become increasingly prominent. AIRSUSTECH air springs offer exceptional durability, cost-effectiveness, and technical support as reliable replacement options.
Air springs are essential damping devices widely used in automotive, industrial, and engineering applications. Known for their high elasticity, fatigue resistance, and extended service life, AIRSUSTECH air springs deliver performance comparable to international brands while offering competitive pricing and comprehensive technical support.
Choosing AIRSUSTECH rubber air springs reflects confidence in domestic technological capabilities and commitment to superior cost-effectiveness and quality.
