Convoluted Air Spring Gart 272.2.190 Torpress 245 93740 with 8 PCS M8 Holes
Price:
Negotiable
MOQ:
1 Piece
Delivery Time:
3-8 Working Days
Brand:
AIRSUSTECH
Product Description

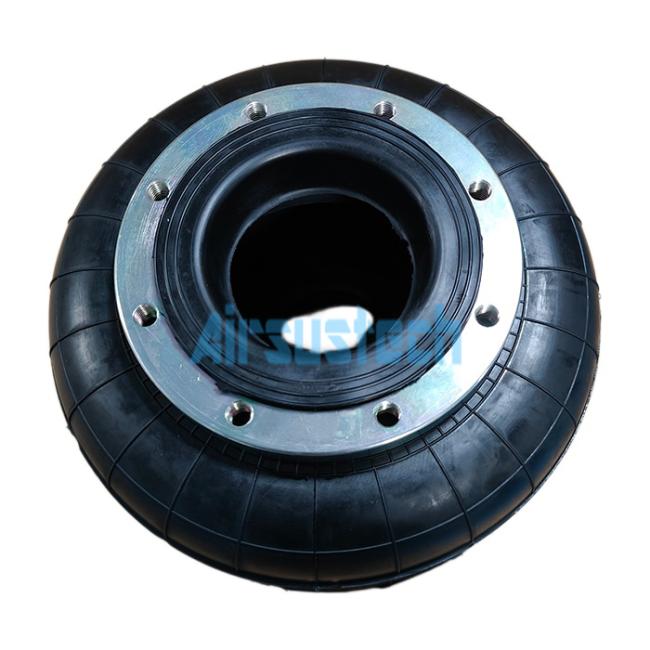

Convoluted Air Spring Gart 272.2.190 Torpress 245 93740 with 8 PCS M8 Holes
High-performance convoluted air spring designed for industrial applications with precise mounting specifications and reliable performance characteristics.
Product Specifications
Flange Ring Dimensions
- Top Flange Ring Diameter: 183 mm
- Screw Center Distance of Top Cover Plate: 145 mm
- Bottom Flange Ring Diameter: 183 mm
- Screw Center Distance of Bottom Cover Plate: 145 mm
Mounting Hardware
- Top Cover Plate Screw (Nut) Tooth: 8-M8
- Bottom Cover Plate Screw (Nut) Tooth: 8-M8
Rubber Bellow Dimensions
- Rubber Bellow Max. Diameter: 270 mm
- Minimum Height: 84 mm
- Maximum Height: 231 mm
- Design Height: 180 mm
Compatible Replacement Parts
Torpress 245
Torpress 93740
Torpress 202344
Torpress 245 93740
Torpress 245 202344
Torpress 20 86600
Gart 272.2.190
PIRELLI Torpress 245
CF gomma 93740
Airtech A2 250/K03
TRAS CAR 03003000090
ZORIZ 1006500
NOMEC 99AMM0000024
Technical Performance Data
| Load (kg) | Installation Height (mm) | 0.2 MPa | 0.3 MPa | 0.4 MPa | 0.5 MPa | 0.6 MPa | 0.7 MPa |
|---|---|---|---|---|---|---|---|
| 84 | 755 | 1125 | 1484 | 1868 | 2239 | 2610 | 2980 |
| 126 | 668 | 1015 | 1360 | 1694 | 2041 | 2388 | 2746 |
| 168 | 530 | 848 | 1144 | 1426 | 1735 | 2030 | 2327 |
| 180 | 520 | 795 | 1073 | 1345 | 1627 | 1904 | 2195 |
| 206 | 412 | 638 | 857 | 1089 | 1321 | 1554 | 1798 |
| 230 | 312 | 494 | 676 | 857 | 1045 | 1243 | 1446 |
Stiffness and Frequency at Design Height
| Parameter | 0.2 MPa | 0.3 MPa | 0.4 MPa | 0.5 MPa | 0.6 MPa | 0.7 MPa | 0.8 MPa |
|---|---|---|---|---|---|---|---|
| Vertical Stiffness (Kg/cm) | 101 | 120 | 150 | 184 | 212 | 231 | 257 |
| Inherent Frequency (Hz) | 2.21 | 1.94 | 1.87 | 1.85 | 1.81 | 1.74 | 1.71 |
| Inherent Frequency (cpm) | 133 | 116 | 112 | 111 | 109 | 104 | 103 |
Frequently Asked Questions
What is the model number of the Flange-typed Air Springs?
The model number of the Flange-typed Air Springs is 2H250180.
Where are the Flange-typed Air Springs manufactured?
The Flange-typed Air Springs are manufactured in Guangzhou, China.
How long does it take to get product after placing the order?
The delivery time of your ordered product varies as per what you've ordered and the shipping method that you've chosen. The estimated delivery time is mentioned during the checkout process.
Can you produce according to samples?
Yes, it can be developed according to your samples or technical drawings.
