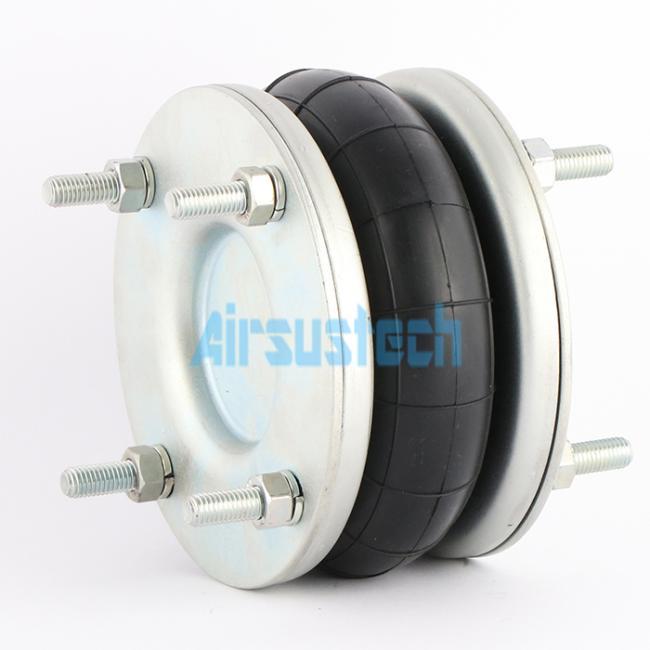

Dunlop Pneuride 6"X1 Firestone W01-R58-4052 Air Spring Complete Assembly 4XM10
- Cover Plate: Top and Bottom Diameter: 153.5 mm, Screw Center Distance: 127 mm
- Nut/Blind Nuts: Top and Bottom Cover Plate Screw: 4XM10
- Air Inlet: G1/2 gas hole
- Rubber Bellow: Natural Diameter: 159 mm, Design Height: 77.5 mm
- Impact and vibration absorption for cargo, drivers, and passenger protection
- Vehicle height adjustment for easier boarding and cargo operations
- Stable vehicle height maintenance during travel through air pressure adjustment
- Increased truck axle weight for improved slope starting and driving force
- Reduced part quantity (diaphragm type) contributing to weight reduction
| AIRSUSTECH No. | Specifications | Reference Numbers |
|---|---|---|
| 1B6X1T |
Center Distance: 127 mm Cover Plate O.D.: 153.5 mm Design Diameter: 159 mm Static Height: 77.5 mm Air Hole: G1/2 Bolts Type: 4-M10 |
Firestone W01-R58-4052 Dunlop Pneuride 6"X1 (Steel) Dunlop Springride SP1536 Dunlop PNP 30551 01 13 Contitech FS 76-7 DS Contitech Order No. 70216 Norgren M/31061 Parker 9109004 Oria 6''X1ST |
| 2B6X2T |
Center Distance: 127 mm Cover Plate O.D.: 153.5 mm Design Diameter: 159 mm Static Height: 135.5 mm Air Hole: G1/2 Bolts Type: 4-M10 |
Firestone W01-R58-4053 Dunlop Pneuride 6''X2 (Steel) Dunlop Springride SP1482 Contitech FD 76-14 DS Norgren M/31062 Parker 9109001 Dunlop PNP 30551 01 11 Oria 6''X2 |
| 3B6X3T |
Center Distance: 127 mm Cover Plate O.D.: 153.5 mm Design Diameter: 159 mm Static Height: 193.5 mm Air Hole: G1/2 Bolts Type: 4-M10 |
Firestone W01-R58-4095 Dunlop Pneuride 6''X3 Dunlop Springride SP2861 Contitech FT 76-20 DS Norgren M/31063 Parker 9109007 Dunlop PNP 30551 01 18 Oria 6''X3 |
