Rubber Air Spring YOKOHAMA S-120-2R F-120-2 Double Convoluted with 148MM Max. H.
Rubber Air Spring YOKOHAMA S-120-2R F-120-2 Double Convoluted with 148MM Max. H.
AIRSUSTECH Part No.: F-120-2 Specifications
| Model No. | F-120-2 | Cross | Yohkohama S-120-2R |
| Design H. | 98 mm | Max. H. | 148 mm |
| Min. H. | 53 mm | Max. Diameter | 180 mm |
| Stroke | 45 mm | Max. Internal Pressure | 0.88 MPa |
AIRSUSTECH F-120-2 Refer Numbers
Yokohama S-120-2
Yokohama S-120-2R
Yokohama S1202
Yokohama S1202R
Yokohama S 1202
Yokohama S 120 2R
AIRSUSTECH Other Air Bellows with 180MM Diameter
| AIRSUSTECH NO. | Yokohama Reference No. | Hight H(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | |||
| F-120-4 | S-120-4 | 206 | 306 | 111 | 180 |
| F-120-3 | S-120-3 | 152 | 227 | 82 | 180 |
| F-120-2 | S-120-2 | 98 | 148 | 53 | 180 |
Why AIRSUSTECH F-120-2 Punch Air Bellows can Replace YOHOHAMA S-120-2?
1. Same Air Spring Type and Design
Both AIRSUSTECH F-120-2 and Yokohama S-120-2 are single-convolution air bellows designed for vibration isolation, shock absorption, and load support. They operate on the same principle: compressed air contained in a reinforced rubber bellow absorbs vibrations and transmits force while supporting dynamic loads. This design ensures consistent damping and stability across a wide range of pressures and displacements.
2. Material and Performance Equivalence
Both models are constructed using multi-layer reinforced rubber with fabric cord reinforcement and durable metal end plates. These features provide:
- High load-bearing capacity
- Excellent vibration isolation
- Long-term fatigue resistance
- Shock absorption under dynamic industrial conditions
AIRSUSTECH F-120-2 can withstand similar working pressures and environmental conditions as the Yokohama S-120-2, ensuring equivalent operational reliability.

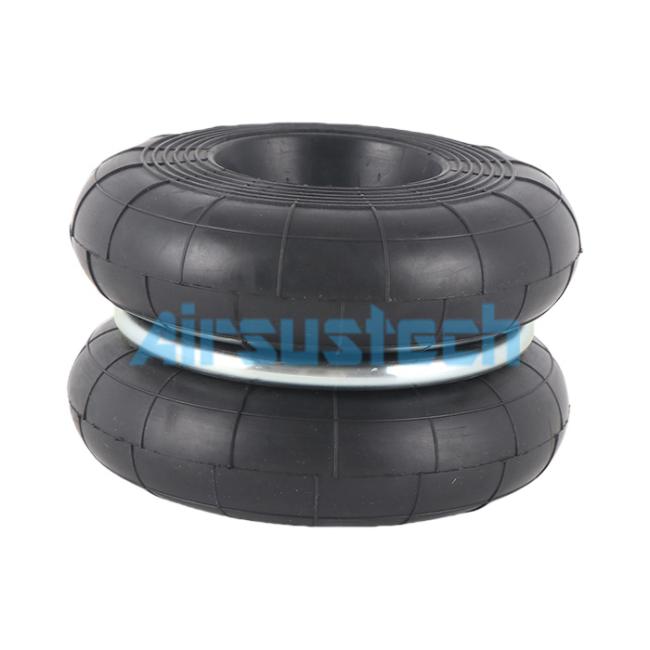

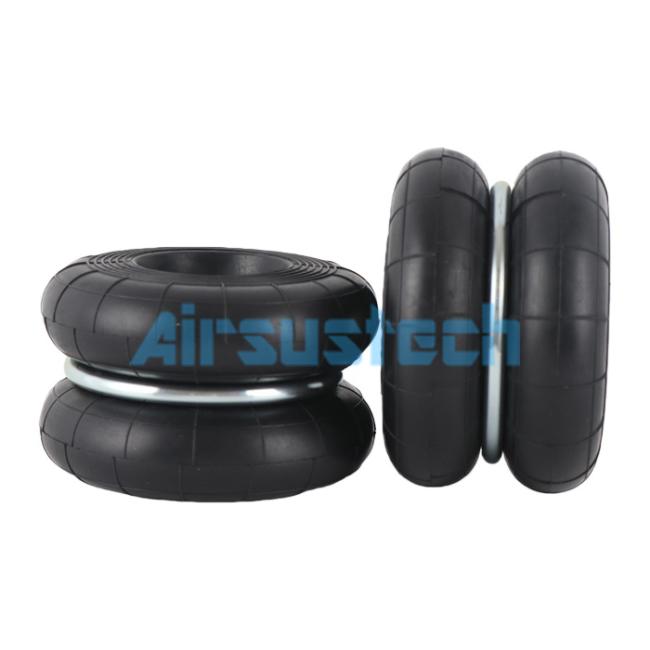

The Physical Pictures of F-120-2 AIRSUSTECH Air Bellows
