7X3 Suspension Air Springs 132mm Triple Convoluted Rubber Shocks
Suspension Air Springs 7X3 Triple Convolution Without Metal Parts 3b7X3 Rubber Shocks
GUOMAT 3B7X3 Data
Nut/ Blind Nut

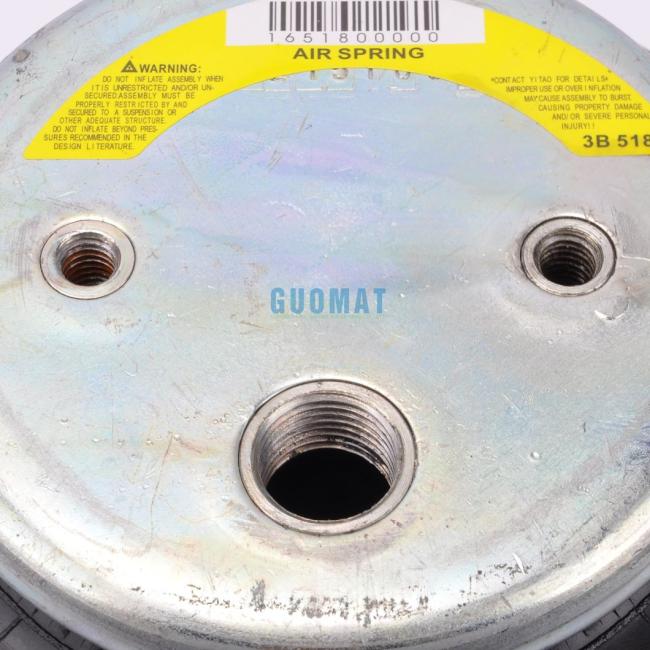

Top cover screw (nut) teeth: 2 x 3 / 8-16UNC
Top cover screw center distance: 69 mm

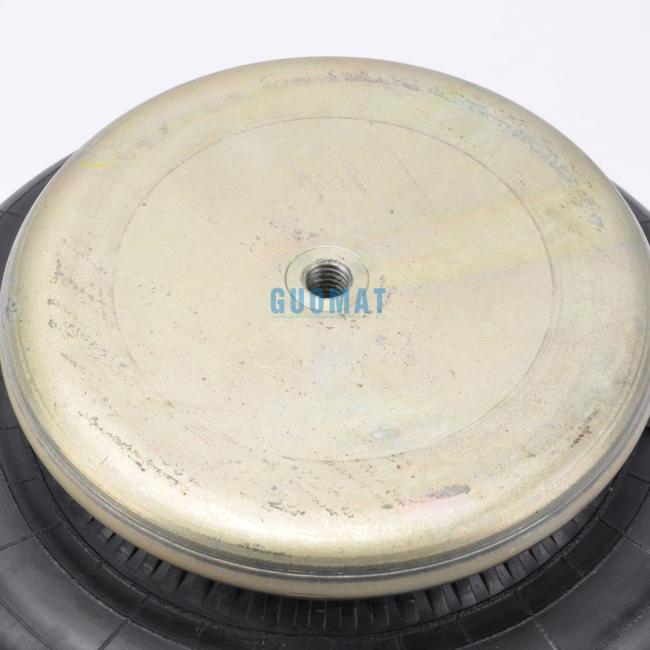

Bottom cover screw (nut) teeth:1 X 3 / 8-16UNC
air hole / air inlet / air connector
Air vent / air inlet: 3 / 8-18 NPTF
Screw center distance between air vent and nut: 33 mm
cover
Top cover diameter (width): 130 mm / 5.31 inches
Bottom cover diameter (width): 130 mm 5.31 inches
Rubber bellows
Rubber bellows MAX diameter: 203 mm
Working stroke: MIN 117 mm to MAX 460 mm
Maximum height: 460 mm
Minimum height (compression height): 117 mm
Stroke height: 343 mm
bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Belt hoop: a band loop
