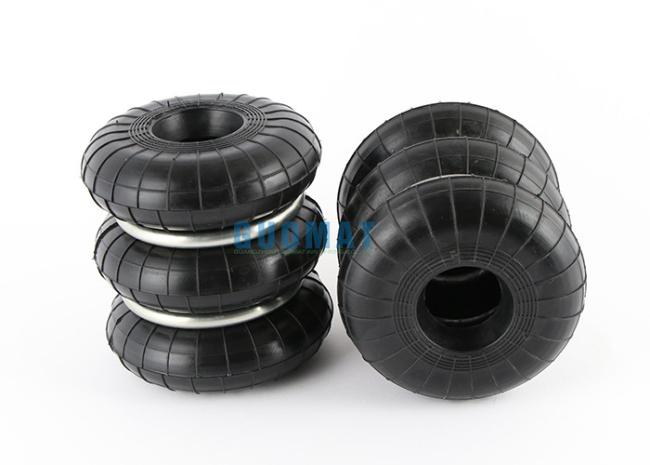

Stainless Steel 120-3 Yokohama Air Spring Cushion S-120-3 Triple Convolutions Press
Stainless Steel 120-3 Yokohama Air Spring Cushion S-120-3 Triple Convolutions Press
AIRSUSTECH F-120-3 Cross other OE:
AIRSUSTECH Part No.: F-120-3
Yokohama Part No.: S-120-3
Yokohama Part No.: S120-3
Yokohama Part No.: S-120-3R
Yokohama Part No.: S120-3R
AIRSUSTECH F-120-3 weight and packing size:
Net Weight:1.7 KG
Gross Weight:2.5 KG
Package Size:24mm*24mm*24mm
Compressed height:87mm
Maximum Height:222mm
Full stroke:105mm
Working medium:water, air
Working pressure:< 0.7Mpa
Burst pressure:> 1.6Mpa
Endurance cycle:> 10"
Temperature:-35℃ ~+60℃
F-100-3 items Detailed Parameter Table:
F-120-3 items Detailed Parameter Table:
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| F-120-3 | S-120-3 | 152 | 227 | 82 | ±53 | 180 |
| GUOMAT NO. | Reference No. | Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) | ||||
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) | ||||
| F-120-3 | S-120-3 | 113 | 2.1 | 5.2 | 98 | 2.2 | 0.88 | 2.9-3.9 |
How long does it take to receive my order?
GUOMAT ships may take 2-8 work days, depending on what items are ordered and Whether the parts have in stock or not. We always deliver the air spring by DHL, UPS,FEDEX and TNT .They are all can very quickly to deliver the package to you.
