Air Spring Actuator AIRSUSTECH 1B 5080 Bellows No. 1B-131 With M10 Screws

1B 5080 Specifications and Detailed Technical Parameters

Air Spring; Single Convolution; 1/4" NPT Center Port; Type 1 Bead Plate; 2; M10 Blind Nut on 1.75" Center

❶ Nut/Blind Nut

Top plate screw (nut) teeth: 2pcsXM10x1.5
Screw center distance: 44.5mm Bottom cover
Screw (nut) teeth: 2pcsXM10x1.5
Screw center bottom cover distance: 44.5 mm

❷ Air hole/air inlet/air connector/air fitting
Air hole/air inlet: 1/4NPTF
Screw center distance between air hole and nut: 22 mm

❸Cover plate
Top plate diameter: 115 mm
Bottom cover diameter: 115 mm

❺Bell-shaped rubber bellows Rubber bellows
Maximum diameter: 165 mm rubber bellows
Natural diameter: 145 mm
Working stroke: min. 50 mm to max. 110 mm
Maximum height: 110 mm
Minimum height: 50 mm
Stroke height: 60 mm

Buffer block/buffer block
unbuffered block

❻ Belt loop / Belt loop
With hoop: without no hoop

AIRSUSTECH 1B 5080 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH 1B5080 can replace Firestone Bellow 131 Air Spring Shocksdescription:

The air spring shock absorber AIRSUSTECH 1B5080 can replace Firestone Bellow 131 Air Spring Shocks can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 1B5080 can replace Firestone Bellow 131 Air Spring Shocks to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 1B5080 can replace Firestone Bellow 131 Air Spring Shocks must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 1B5080 can replace Firestone Bellow 131 Air Spring Shocks , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 1B-131 can replace Firestone Bellow 131 Air Spring Shocks shall not be in contact with other parts

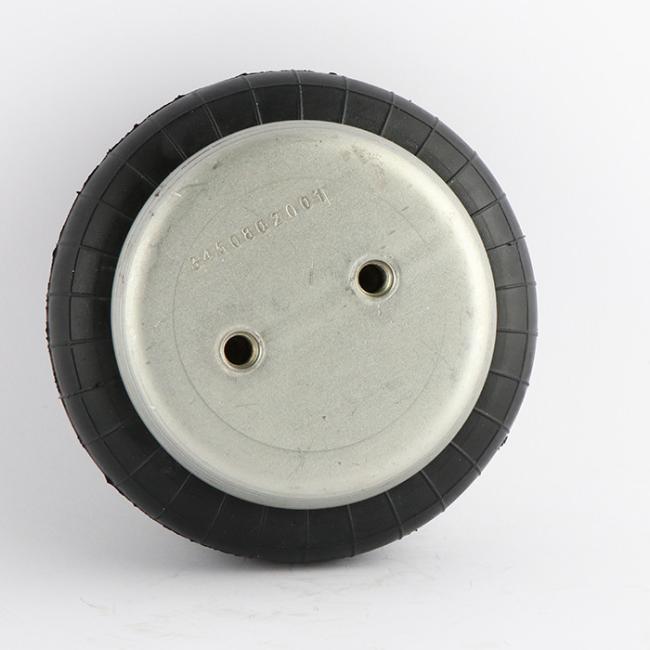

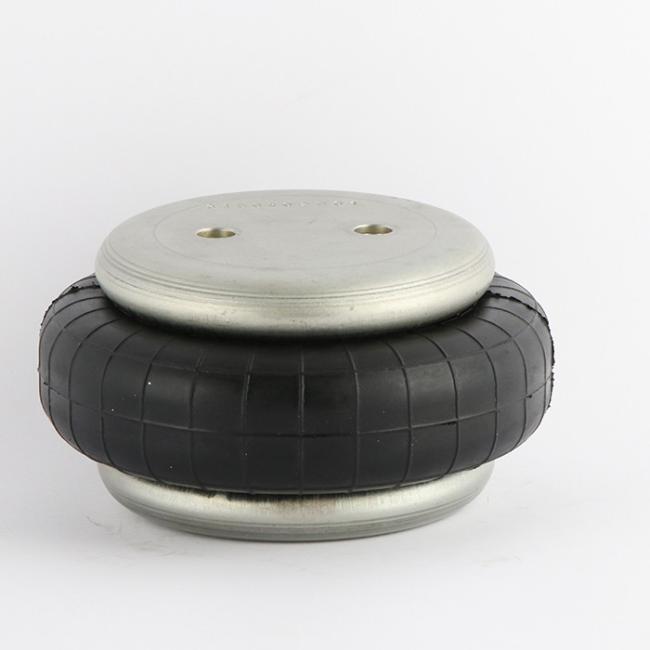

The real photos of AIRSUSTECH 1B5080 :
