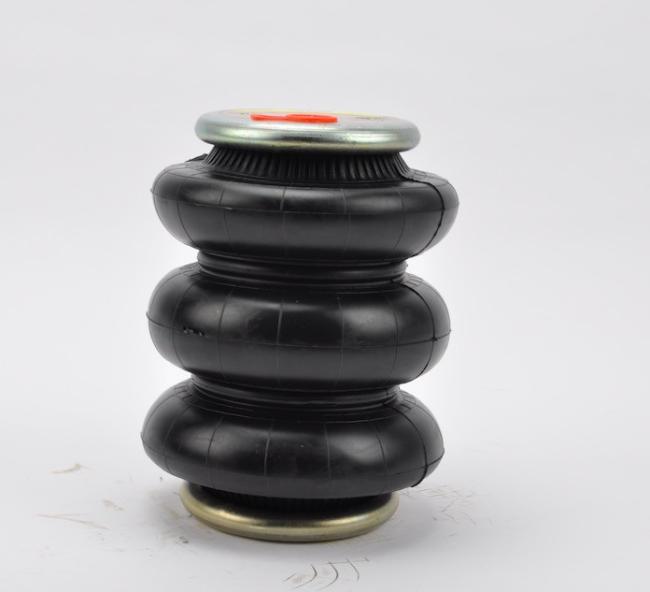

0.8MPA Air Spring Actuator 3B7X3 Suspension Rubber Dia. 176mm Triple Convoluted Shocks
Air Spring Actuator 3B7X3 Suspension Rubber Dia. 176mm Triple Convoluted Shocks
AIRSUSTECH NO. 3B7X3 technical parameter
| Maximum Diameter @ 100 PSIG (mm) | Bead plate type |
| 195 | 1 |
| Maximum Height (mm) | Blind Nut Center (mm) |
| 320 | 69 |
| Maximum travel (mm) | Install the isolator |
| 200 | Design height |
| Minimum Usable Height (Mm) | 257 |
| 120 | Load (at design height): 40 psig |
| Style | |
| 7x3/ 3E10x3 | |
| Material | |
| natural rubber and metal plate | |

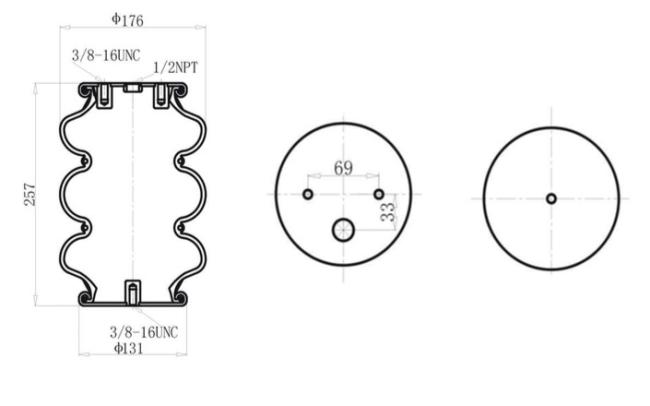

AIRSUSTECH 3B7X3 Sizes:
Nut/ Blind Nut
Top cover screw (nut) teeth: 2 x 3 / 8-16UNC
Top cover screw center distance: 69 mm
Bottom cover screw (nut) teeth:1 X 3 / 8-16UNC
air hole / air inlet / air connector
Air vent / air inlet: 3 / 8-18 NPTF
Screw center distance between air vent and nut: 33 mm
cover
Top cover diameter (width): 130 mm / 5.31 inches
Bottom cover diameter (width): 130 mm 5.31 inches
Rubber bellows
Rubber bellows MAX diameter: 203 mm
Working stroke: MIN 117 mm to MAX 460 mm
Maximum height: 460 mm
Minimum height (compression height): 117 mm
Stroke height: 343 mm
bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Belt hoop: a band loop
