SP1640 Dunlop Air Spring Single Convoluted AIRSUSTECH Number 12 ×1 Bellow Air Bags
Price:
Negotiable
MOQ:
3Pieces
Delivery Time:
5-8 Working Days
Brand:
AIRSUSTECH
Product Description
Single Convoluted AIRSUSTECH Number 12 ×1 Bellow Air Bags Dunlop SP1640 Air Spring
OEM NO.
- Firestone: 12 X 1 W01-R58-4060
- Firestone: 12 X 1 W01R584060
- Firestone: 12 X 1 W01 R58 4060
- Firestone Style: 12" x1/ 12"x1/12x1
- Dunlop FR: 12"x1 DUNLOP SP 1640
- Dunlop UK (Pneuride): PNP 30552 01 20 /PNP305520120
- Norgren: M/31121 / M 31121 1 M31121
- Nominal (inch) x convolutions: 12" x1/ 12"x1/12x1
- Parker: 12"x1 9109044
- ContiTech Part Number: FS 412-10 DS / FS210-10DS / FS21010DS
- ContiTech skin bagPart Number: FS 412-10 / FS412-10 / FS41210
- ContiTech Part Number: FS 412-10 DS G1/2
Specifications and Detailed Technical Parameters:AIRSUSTECH 1B12X1
| Top/Bottom Cover Plate Screw (Nut) Tooth |
4pcs X M10Nut / Blind Nut
|
| Gas Hole / Air inlet | 1/2 BSP |
| Top/Bottom Cover Plate Diameter (Width) | 210 mm |
| Material top and bottom plate | Steel |
| Stroke of Rubber Bellows | 50 mm-150m |
| Bumper block / Buffer block | Without |
| Girdle Hoop / Girdle Ring | One Pieces of Girdle Hoop |
| Rubber material Standard up to 70°C natural rubber | |

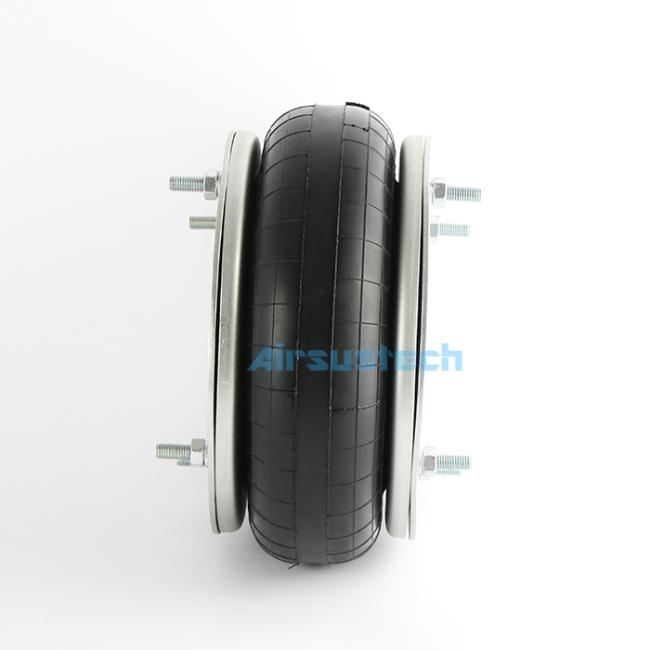

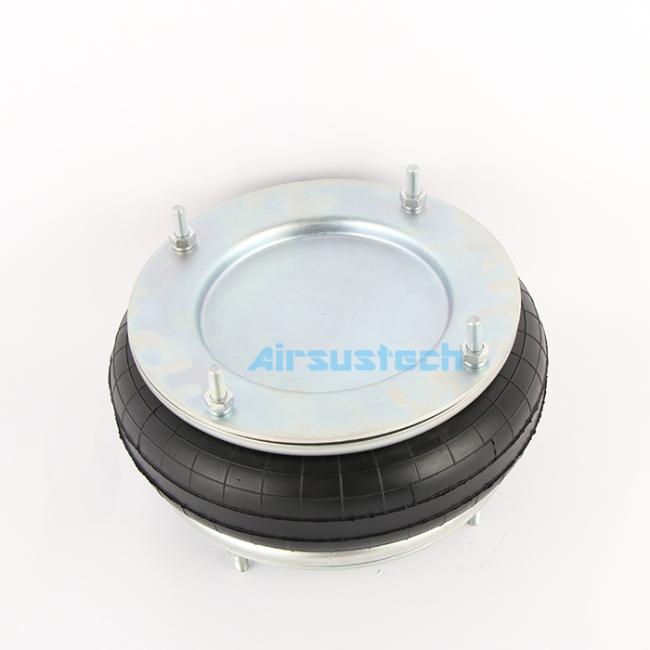

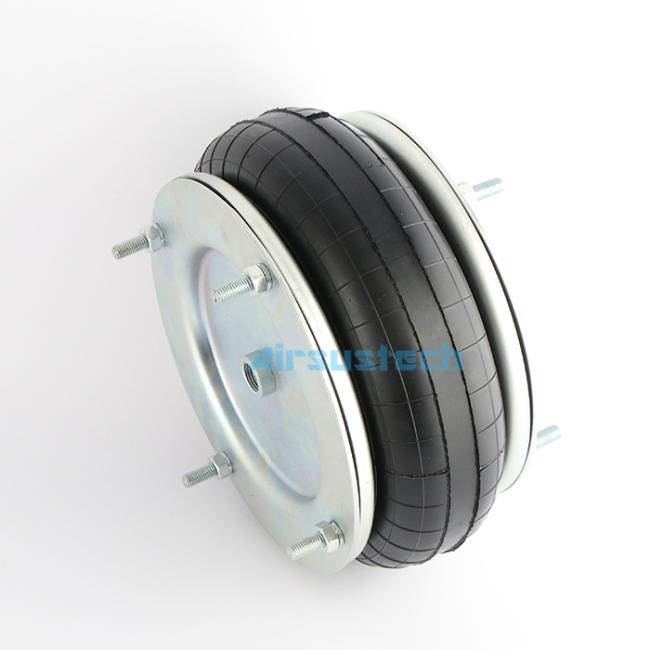

The related picture of 12×1
Air Bellows used as an actuator: Direct force; Platform lift; Hot foil stamping press; Quick lock device; Short stroke mechanical linkage; Roller tensioning; Reel tensioning;Web tensioning device
Air Bellows used as an isolator: Hopper vibration and damping; Commercial laundry machine; Wheel suspension; Impact absorbtion; Machine isolation; Mechanical handling stop
