Industial Rubber Triple Air Bag Replace For Firestone W01-358-8008
AIRSUSTECH Triple Convoluted Rubber Industrial Air Spring Replace For Firestone W01-358-8008 Bag
OEM NO.
|
Contitech
|
FT 330-29 431
|
| Contitech | FT 330 29 431 |
| Contitech | FT330-29 431 |
| Contitech | FT330 29 431 |
| Contitech | FT33029431 |
| Firestone | W01-358-8008 |
| Firestone |
W01 358 8008 |
| Firestone | W013588008 |
|
Goodyear
|
3B12-300
|
| Goodyear |
3B12 300
|
| Goodyear |
3B12300
|
|
Triangle
|
6334 |
|
Triangle
|
4431 |
|
Watson&chalin
|
AS-0019
|
|
Watson&chalin
|
AS 0019
|
| Watson&chalin | AS0019 |
| Daylon | 3548008 |
| Leland | Sc2130 |
| Ridewell | 1003588008C |
| Silent Drive | AS-0019 |
| Silent Drive | AS0019 |
| Silent Drive | AS 0019 |
| Hendrickson | S11637 |
| Hendrickson | NS50 1690 |
|
EZ RIDE
|
8030155
|
|
SAF Holland
|
57008008
|
|
Tuthill
|
6392
|
|
Histeer/Langes
|
Specifications and Detailed Technical Parameters: 3B8008
- Nut/blind nut
Top plate screw (nut) teeth: 3/8-16UNC, 3/4-16UNC
Bottom cover plate screw (nut) teeth: 2×3/8-16UNC
The screw center distance of the Top cover plate: 140 mm
The screw center distance of the bottom cover plate: 157.5 mm
- Air hole/air inlet/air fittings
Air hole/air inlet: 1/4NPTF
- Rubber Bellows
Top plate diameter (width): 231 mm
Diameter (width) of the bottom cover plate: 231 mm
- Bumper block/bumper block
Without bumper block
- Belt loop/Belt loop
With belt loop: Two pieces of belt loop
Min. pressure: 0 bar
Return force to min.height: ≤400N
Overall weight with clamped plates: 5.9kg
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 380 | 8.8 | 11.9 | 15.1 | 18.4 | 21.7 | 25.1 | 23.6 |
| 340 | 10.7 | 14.4 | 18.2 | 22.0 | 25.9 | 29.8 | 21.6 | |
| 300 | 12.3 | 16.5 | 20.8 | 25.1 | 29.5 | 33.7 | 19.2 | |
| 260 | 13.7 | 18.2 | 22.9 | 27.6 | 32.3 | 36.9 | 16.6 | |
| 220 | 14.8 | 19.5 | 24.6 | 29.6 | 34.6 | 39.5 | 13.8 | |
| 180 | 15.9 | 21.1 | 26.5 | 31.8 | 37.2 | 42.4 | 10.7 | |
| 140 | 17.0 | 22.4 | 28.1 | 33.6 | 39.1 | 44.7 | 7.5 | |

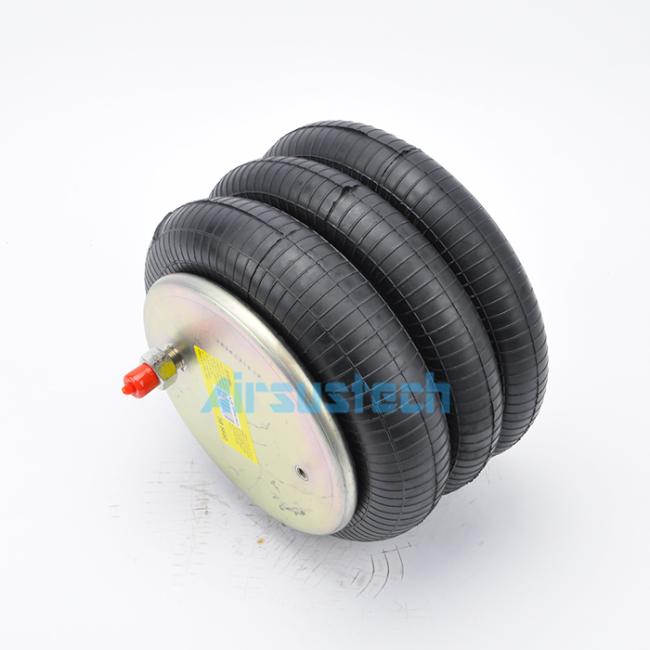

The related picture of 3B8008
Air Bag 3B8008 can replace W01-358-8008/W01 358 7994/W013588008/WO1-358-8008/WO1 358 8008/WO13588008. It is the use of compressed air (water) as the medium, is the use of its internal compressed air reaction as an elastic restoring force of an elastic element. From the point of view of structure, compound air spring, is between the capsule type and membrane type of a type, it combines the advantages of the two kinds of air spring, has a lower spring stiffness, but the manufacturing process is complex.
Application
Because of the air spring can carry on the reasonable adjustment of scheduling and vibration amplitude value and reasonable control of shock load, air spring is getting more and more widely used in transport, paper machine, elevator, medium of punching machine, vibration, vibration sieve, air hammer, vibration test machine, forging machinery which need scheduling of manipulation or shock protection facilities or equipment.
