Goodyear 3B12-304 556338334 Industrial Air Springs For Material Transfer
Goodyear 3B12-304/556338334 Triple Convoluted Industrial Air Springs For Material transfer
Refer NO.
|
Contitech
|
FT 330-29 498
|
| Contitech | FT 330 29 498 |
| Contitech | FT330-29 498 |
| Contitech | FT330 29 498 |
| Contitech | FT33029498 |
| Firestone | W01-358-8030 |
| Firestone |
W01 358 8030 |
| Firestone | W013588030 |
| Firestone | W01-358-8038 |
| Firestone | W01 358 8038 |
| Firestone | W013588038 |
| Goodyear | 556338334 |
| Goodyear | 556-33-8-334 |
| Goodyear | 578-93-3-100 |
|
Goodyear
|
3B12-304
|
| Goodyear |
3B12 304
|
| Goodyear |
3B12304
|
|
Triangle
|
4432 |
|
Triangle
|
6334 |
|
Ridewell
|
1003588030C |

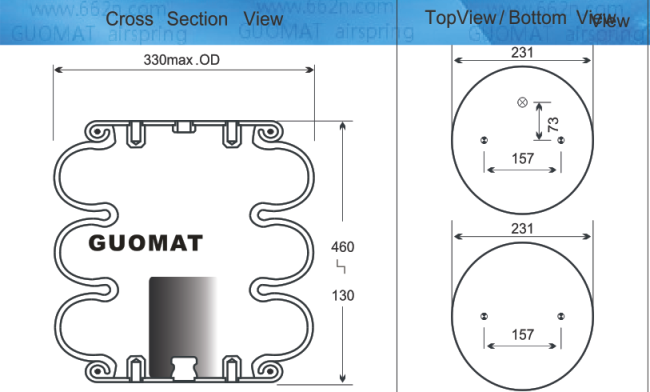

Specifications and Detailed Technical Parameters: 3B8030
- Nut/blind nut
The screw center distance of the Top cover plate: 157 mm
The screw center distance of the bottom cover plate: 157 mm
Screw And Gas Hole Distance of Top Cover Plate:73mm
- Rubber Bellows
Top plate diameter (width): 231 mm
Diameter (width) of the bottom cover plate: 231 mm
Rubber Bellows MAX Diameter: 330mm
The Working Stroke: 130mm to 460mm
- Bumper block/bumper block
With bumper block
- Belt loop/Belt loop
With belt loop: Two belt loop
Min. pressure: 0 bar
Return force to min.height: ≤400N
Overall weight with clamped plates: 5.9kg
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 380 | 8.8 | 11.9 | 15.1 | 18.4 | 21.7 | 25.1 | 23.6 |
| 340 | 10.7 | 14.4 | 18.2 | 22.0 | 25.9 | 29.8 | 21.6 | |
| 300 | 12.3 | 16.5 | 20.8 | 25.1 | 29.5 | 33.7 | 19.2 | |
| 260 | 13.7 | 18.2 | 22.9 | 27.6 | 32.3 | 36.9 | 16.6 | |
| 220 | 14.8 | 19.5 | 24.6 | 29.6 | 34.6 | 39.5 | 13.8 | |
| 180 | 15.9 | 21.1 | 26.5 | 31.8 | 37.2 | 42.4 | 10.7 | |
| 140 | 17.0 | 22.4 | 28.1 | 33.6 | 39.1 | 44.7 | 7.5 | |

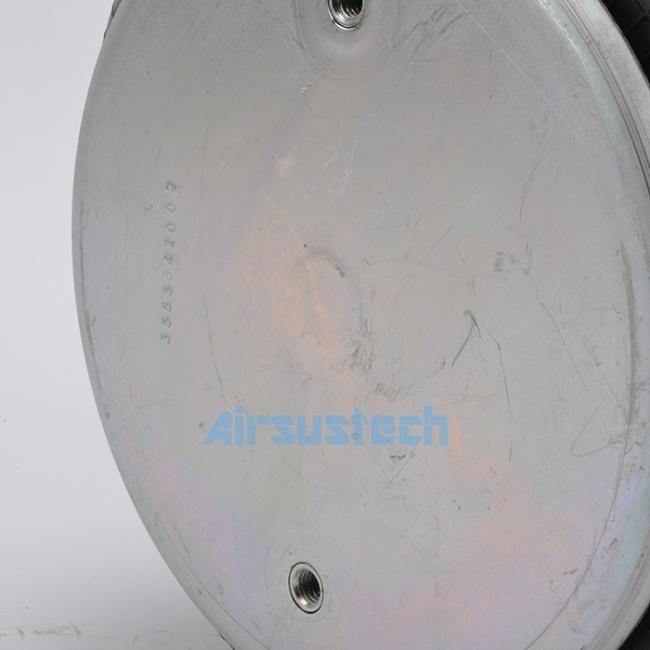

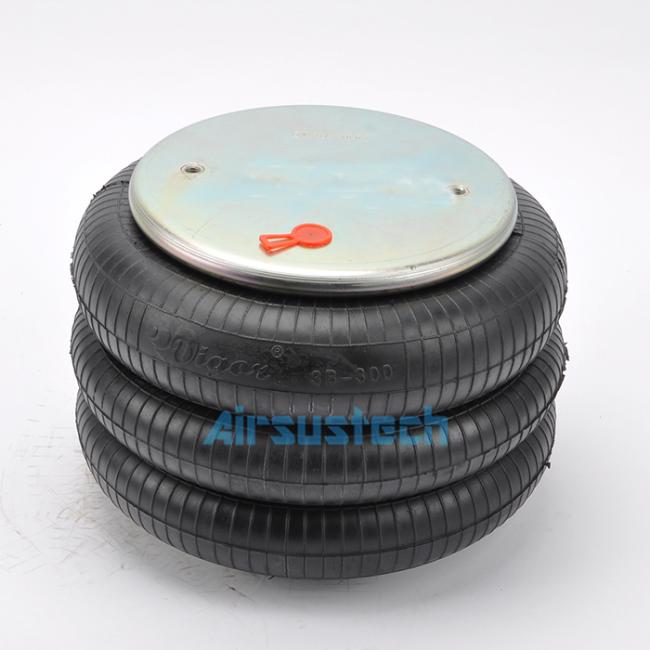

The related picture of 3B8030
What are the advantages of using air springs in material transfer?
First, we need to understand that in material transfer, the tank is driven by a vibrator to make the material mix evenly or to make the material flow into the tank. Vibration can cause fatigue and even damage of the material box supporting parts.
Therefore, isolation devices must be used, and rubber air springs have isolation function. If the rubber air spring isolator is used to adjust the air volume of the spring can be adapted to different work and height requirements.
3B8030 can replace W01-358-8030 air spring in industrial equipment, if you need to use air spring in industrial equipment, please do not hesitate to contact us.
