Triple Convoluted Industrial Air Springs Firestone W01-358-8006
Firestone W01-358-8006 Triple Convoluted Industrial Air Springs
Refer NO.
|
FIRESTONE: W01 358 8006 |
GOODYEAR : 3B12-301 |
| FIRESTONE : W01-358-8006 | GOODYEAR :3B12 301 |
| FIRESTONE : W013588006 | GOODYEAR: 3B12301 |
| CONTITECH FT : 330 29 430 | Goodyear:578 93 3 100 |
| CONTITECH FT: 33029430 | Goodyear:578933100 |
| CONTITECH FT :330-29 430 | Goodyear:578-93-3-100 |
| FIRESTONE : FLEX 38R/38D | WEFORMA WBD 500-E2 |
| BOSCH : 822419081 | WEFORMA WBD 500 E2 |

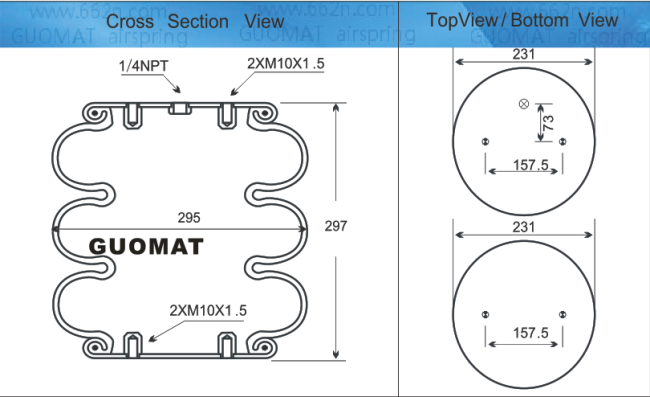

Specifications and Detailed Technical Parameters: 3B8006
- Nut/blind nut
The top/bottom cover plate screw: 2×M10×1.5
The screw center distance of the Top cover plate: 157.5mm
The screw center distance of the bottom cover plate: 157.5 mm
Screw And Gas Hole Distance of Top Cover Plate:73mm
- Rubber Bellows
Top plate diameter (width): 231 mm
Diameter (width) of the bottom cover plate: 231 mm
Rubber Bellows MAX Diameter: 295mm
The Working Stroke: 297mm
- Bumper block/bumper block
Without bumper block
- Belt loop/Belt loop
With belt loop: Two belt loop
Min. pressure: 0 bar
Return force to min.height: ≤400N
Overall weight with clamped plates: 5.9kg
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 380 | 8.8 | 11.9 | 15.1 | 18.4 | 21.7 | 25.1 | 23.6 |
| 340 | 10.7 | 14.4 | 18.2 | 22.0 | 25.9 | 29.8 | 21.6 | |
| 300 | 12.3 | 16.5 | 20.8 | 25.1 | 29.5 | 33.7 | 19.2 | |
| 260 | 13.7 | 18.2 | 22.9 | 27.6 | 32.3 | 36.9 | 16.6 | |
| 220 | 14.8 | 19.5 | 24.6 | 29.6 | 34.6 | 39.5 | 13.8 | |
| 180 | 15.9 | 21.1 | 26.5 | 31.8 | 37.2 | 42.4 | 10.7 | |
| 140 | 17.0 | 22.4 | 28.1 | 33.6 | 39.1 | 44.7 | 7.5 | |

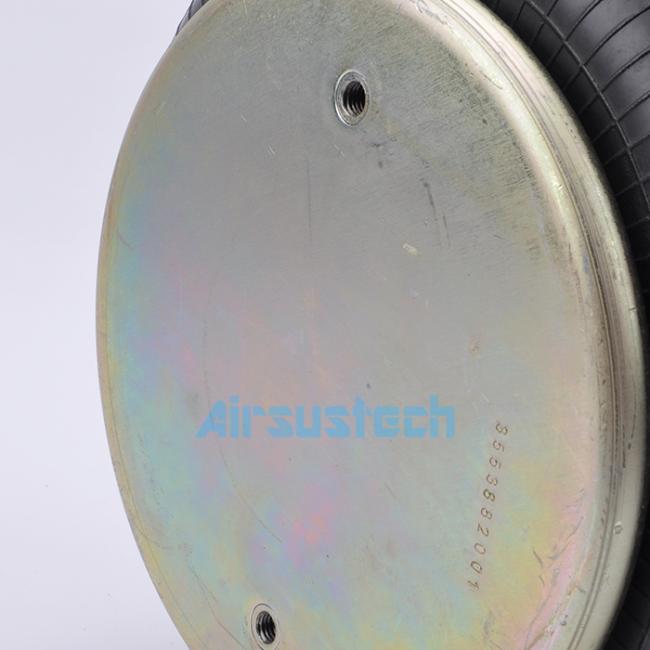

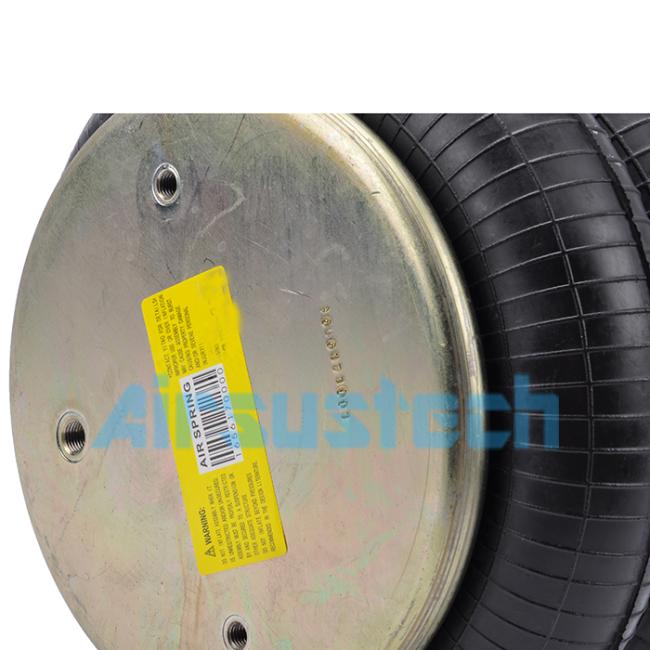

The related picture of 3B8006
The function of rubber air spring
Compared with cylinder or other elastic components with the same function, rubber air spring has simple structure, reliable operation, does not need complex parameter calculation and structural design, no sealing leakage problem, easy to use and maintenance, and long life. It can be used in all kinds of mechanical devices to play a buffer shock absorption, control motion or pressurization. Especially in the case of high pressure and small stroke.
- In the bonding process, rubber air spring can provide uniform pressure to ensure the quality of bonding.
- On drilling fluid shakers, studies have shown that rubber air springs provide better cushioning than steel compression springs, increasing equipment efficiency and extending equipment life.
- In the screw cap belt adjustment device of automatic screw cap sealing machine, rubber air spring can improve and improve the stability of bottle sealing machine at high speed and improve the quality of bottle sealing.
