Contitech FT 330-29 430 Triple Convoluted Air Spring Bellows Suspension Parts
CONTITECH FT 330-29 430 Air Bellows Suspension Parts Triple Convoluted Spring
Cross Reference
|
FIRESTONE: W01 358 8006 |
GOODYEAR : 3B12-301 |
| FIRESTONE : W01-358-8006 | GOODYEAR :3B12 301 |
| FIRESTONE : W013588006 | GOODYEAR: 3B12301 |
| CONTITECH FT : 330 29 430 | Goodyear:578 93 3 100 |
| CONTITECH FT: 33029430 | Goodyear:578933100 |
| CONTITECH FT :330-29 430 | Goodyear:578-93-3-100 |
| FIRESTONE : FLEX 38R/38D | WEFORMA WBD 500-E2 |
| BOSCH : 822419081 | WEFORMA WBD 500 E2 |
Specifications and Detailed Technical Parameters: 3B8006
Nut/blind nut
The top/bottom cover plate screw: 2×M10×1.5
The screw center distance of the Top cover plate: 157.5mm
The screw center distance of the bottom cover plate: 157.5 mm
Screw And Gas Hole Distance of Top Cover Plate:73mm
Rubber Bellows
Top plate diameter (width): 231 mm
Diameter (width) of the bottom cover plate: 231 mm
Rubber Bellows MAX Diameter: 295mm
The Working Stroke: 297mm
Bumper block/bumper block
Without bumper block
Belt loop/Belt loop
With belt loop: Two belt loop
Min. pressure: 0 bar
Return force to min.height: ≤400N
Overall weight with clamped plates: 5.9kg
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 380 | 8.8 | 11.9 | 15.1 | 18.4 | 21.7 | 25.1 | 23.6 |
| 340 | 10.7 | 14.4 | 18.2 | 22.0 | 25.9 | 29.8 | 21.6 | |
| 300 | 12.3 | 16.5 | 20.8 | 25.1 | 29.5 | 33.7 | 19.2 | |
| 260 | 13.7 | 18.2 | 22.9 | 27.6 | 32.3 | 36.9 | 16.6 | |
| 220 | 14.8 | 19.5 | 24.6 | 29.6 | 34.6 | 39.5 | 13.8 | |
| 180 | 15.9 | 21.1 | 26.5 | 31.8 | 37.2 | 42.4 | 10.7 | |
| 140 | 17.0 | 22.4 | 28.1 | 33.6 | 39.1 | 44.7 | 7.5 | |
Other Types Of Continental Air Spring Replacement We Could Offer:
| FS 120-9 3/4 M8 | FD 200-25 427 | FD 530-35 545 |
| FS 120-9 1/4 M8 | FD 200-25 454 | FD 530-35 720 |
| FS 200-10 3/4 M8 | FD 200-25 | FD 120-17 509 |
| FS 200-10 1/4 | FD 200-19 | FD 40-10 |
| FS 200-10 | FD 200-25 453 | FD 70-13 |
| FS 70-7 1/4 M8 | FD 200-25 426 | FD 120-17 |
| FS 330-11 474 | FD 200-25 427 | FD 200-22 510 |
| FS 330-11 | FD 200-25 463 | FD 200-22 706 |
| FS 330-11 468 | FD 200-25 429 | FT 330-29 546 |
| FS 330-14 | FD 200-25 507 | FT 330-29 547 |
| FS 330-11 647 | FD 200-25 511 | FT 330-29 520 |
| FS 40-6 1/8 M8 | FD 200-25 717 | FT 330-29 430 |
| FS120-10 | FD 330-22 363 | FT 330-29 431 |
| 1B8-580 | FD 330-22 472 | FT 330-29 432 |
| FD 200-19 504 | FD 330-22 471 | FT 330-29 433 |
| FD 200-19 | FD 330-22 500 | FT 330-29 469 |
| FD 200-19 724 | FD 330-22 313 | FT 330-29 466 |
| FD 200-19 539 | FD 330-22 337 | FT 330-29 498 |
| FD 200-19 505 | FD 330-22 318 | FT 412-323 |
| FD 200-19 319 | FD 330-22 346 | FT 210-32 |
| FD 200-19 310 | FD 330-22 364 | FD 330-22 364 |
| FD 200-19 315 | FD 330-22 365 | |
| FD 200-19 362 | FD 330-22 366 | |
| FD 200-19 320 | FD 330-22 367 | |
| FD 200-19 504 | FD 330-22 331 | |
| FD 200-19 452 | FD 330-22 368 | |
| FD 200-19 499 | FD 330-22 327 | |
| FD 200-19 450 | FD 330-22 343 | |
| FD 200-19 448 | FD 330-22 334 | |
| FD 200-19 506 | FD 330-22 363 | |
| FD 200-19 510 | FD 530-22 321 | |
| FD 200-22 524 | FD 330-30-371 | |
| FD 200-19 P04 | FD 331-26-514 | |
| FD 200-19 315 | FD 331-26-541 | |
| FD 120-20 | FD 331-26-480 | |
| FD 120-20 509 | FD 530-35 545 | |
| FD 120-20 509 | FD 530-35 543 | |
| FD 200-25 | FD 530-35 530 |

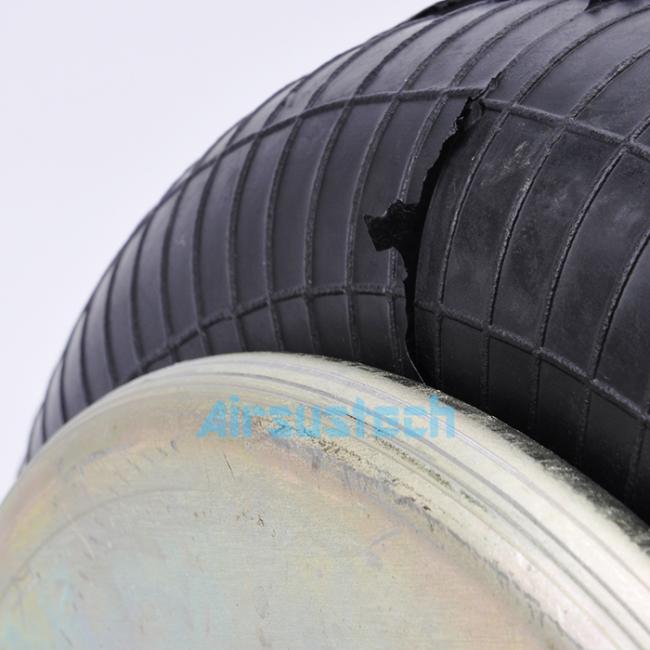

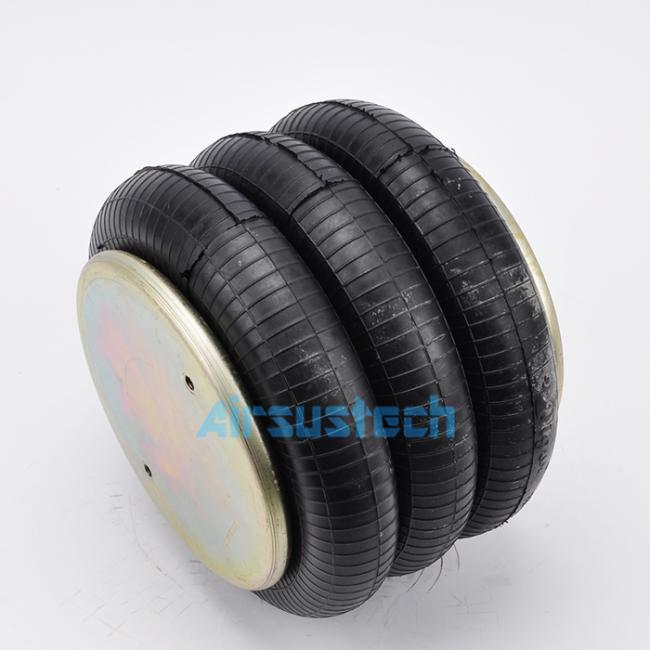

The related picture of 3B8006
