AIRSUSTECH Rubber Air Spring Cross Yokohama S-500-4 Industial Quadruple Air Bag
F-500-4 AIRSUSTECH Air Spring Cross Yokohama S-500-4 Rubber Industial Quadruple Air Bag
OEM Cross reference:
AIRSUSTECH Part No.: F-500-4
YOKOHAMA S-500-4R
YOKOHAMA S 500 4R
YOKOHAMA S-500-4
YOKOHAMA S 500 4
YOKOHAMA S500-4R
Specifications and Detailed Technical Parameters: F-500-4
| Model Size | Height H(mm) | Common Maximum Travel(mm) | Compression Max. Outside Diameter (mm) | Standard height, approximate value at 0.49MPA internal pressure | Maximum Internal Pressure (MPA) | Internal Pressure Failure(MPA) | ||||||
| Design Height | Max. Height | Min Height | Effective Area(cm2) | Volume(L) | Load(KN) | Dynamic Spring Constant(n/mm) | Natural Vibration Frequency(Hz) | |||||
| S-500-5R | 276 | 456 | 156 | ±113 | 560 | 1965 | 54.0 | 96.3 | 706 | 1.4 | 0.69 | 3.9-4.9 |
| S-500-4R | 218 | 363 | 123 | ±90 | 560 | 1965 | 41.9 | 96.3 | 912 | 1.5 | 0.69 | 3.9-4.9 |
| S-500-3R | 160 | 270 | 90 | ±68 | 560 | 1965 | 30.3 | 96.3 | 1255 | 1.8 | 0.69 | 3.9-4.9 |
| S-500-2R | 102 | 172 | 57 | ±45 | 560 | 1965 | 18.5 |
96.3 | 2020 | 2.3 | 0.69 | 3.9-4.9 |
Other types
| GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. | GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. |
| F-600-1 | S-600-1R | S 600 1R | F-240-4 | S-240-4R | S 240 4R |
| F-600-2 | S-600-2R | S 600 2R | F-240-3 | S-240-3R | S 240 3R |
| F-600-3 | S-600-3R | S 600 3R | F-240-2 | S-240-2R | S 240 2R |
| F-600-4 | S-600-4R | S 600 4R | F-240-1 | S-240-1R | S 240 1R |
| F-600-5 | S-600-5R | S 600 5R | F-220-4 | S-220-4R | S 220 4R |
| F-550-2 | S-550-2R | S 550 2R | F-220-3 | S-220-3R | S 220 3R |
| F-550-3 | S-550-3R | S 550 3R | F-220-2 | S-220-2R | S 220 2R |
| F-500-2 | S-500-2R | S 500 2R | F-200-2 | S-200-2R | S 200 2R |
| F-500-3 | S-500-3R | S 500 3R | F-200-3 | S-200-3R | S 200 3R |
| F-500-4 | S-500-4R | S 500 4R | F-200-4 | S-200-4R | S 200 4R |
| F-500-5 | S-500-5R | S 500 5R | F-160-1 | S-160-1R | S 160 1R |
| F-450-1 | S-450-1R | S 450 1R | F-160-2 | S-160-2R | S 160 2R |
| F-450-2 | S-450-2R | S 450 2R | F-160-3 | S-160-3R | S 160 3R |
| F-450-3 | S-450-3R | S 450 3R | F-160-4 | S-160-4R | S 160 4R |
| F-450-4 | S-450-4R | S 450 4R | F-120-4 | S-120-4R | S 120 4R |
| F-450-5 | S-450-5R | S 450 5R | F-120-3 | S-120-3R | S 120 3R |
| F-400-2 | S-400-2R | S 400 2R | F-120-2 | S-120-2R | S 120 2R |
| F-400-3 | S-400-3R | S 400 3R | F-100-4 | S-100-4R | S 100 4R |
| F-400-4 | S-400-4R | S 400 4R | F-90-3 | S-90-3R | S 90 3R |
| F-400-5 | S-400-5R | S 400 5R | F-90-2 | S-90-2R | S 90 2R |
| F-350-1 | S-350-1R | S 350 1R | F-90-1 | S-90-1R | S 90 1R |
| F-350-2 | S-350-2R | S 350 2R | F-300-1 | S-300-1R | S 300 1R |
| F-350-3 | S-350-3R | S 350 3R | F-300-2 | S-300-2R | S 300 2R |
| F-350-4 | S-350-4R | S 350 4R | F-300-3 | S-300-3R | S 300 3R |
| F-300-4 | S-300-4R |
S 300 4R |
Features
This air spring is a special air bag for punching equipment, and also a self-sealing air bag. Self-sealing is named for its self-sealing without external force. Its shock absorption principle is to use compressed air to reduce the impact, excellent performance, vibration reduction frequency can reach more than one Hertz. Air pressure inside the air spring can also be by adjusting the shock absorption measures to achieve higher precision, and because of its unique shock absorption principle, has great advantages in equipment maintenance, because the traditional steel spring in impact will produce certain damage to equipment, and the air spring can achieve full suspension, which greatly reduce the maintenance cost of punching equipment, Thus prolong the service life of punch equipment.
●Low cost and wide range of specifications
Long service life, no maintenance and lubrication, no internal levers or pistons
●No friction effect, soft medium
●Bending capacity, side load capacity, compact original height

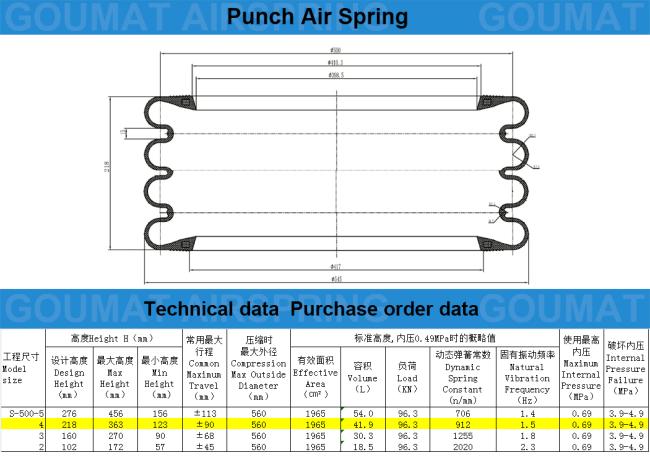

The related picture of F-500-4
