Firestone W013587598 Goodyear 1B8 580 Industrial Air Springs One Convoluted

Firestone W013587598 Goodyear 1B8 580 Rubber Industrial Air Springs One Convoluted

Cross Reference

Specifications and Detailed Technical Parameters:AIRSUSTECH 1B7598

Nut/blind nut

Top plate screw (nut) teeth:2X3/8

The screw center distance of the top cover plate: 70mm

Screw (nut) teeth of the bottom cover plate: 2X3/8

The screw center distance of the bottom cover plate: 70 mm

Air hole/air inlet/air fittings

Air hole/air inlet: 1 / 4-18NPTF

The screw center distance between the air hole and the nut: 35mm

Cover plate

Top plate diameter: 135 mm

Diameter of the bottom cover: 135 mm

Bell rubber bellows

Maximum diameter of rubber bellows: 240 mm

Natural diameter of rubber bellows: 215 mm

Working stroke: minimum 60 mm to maximum 180 mm

Maximum height: 180 mm

Minimum height: 60mm

Bumper block/bumper block

No bumper block

Belt loop/Girdle hoop/Girdle ring

Without belt loop/girdle hoop/girdle ring

Common Faults and Cause Analysis of Rubber Air Springs

1.The air spring is collapsed

The air pressure of the air tank is too low to open the pressure protection valve
Air control line manifold leaking or clogged
Failed height control valve or loose flexible link

2. The surface of the air spring is worn or worn through

There is insufficient clearance around the air spring and friction occurs with its parts
Damaged shock absorbers, loose pipelines, etc. cause interference and friction with airbags
There are sand and gravel, glass slag, etc. on the outside of the piston of the air spring base.

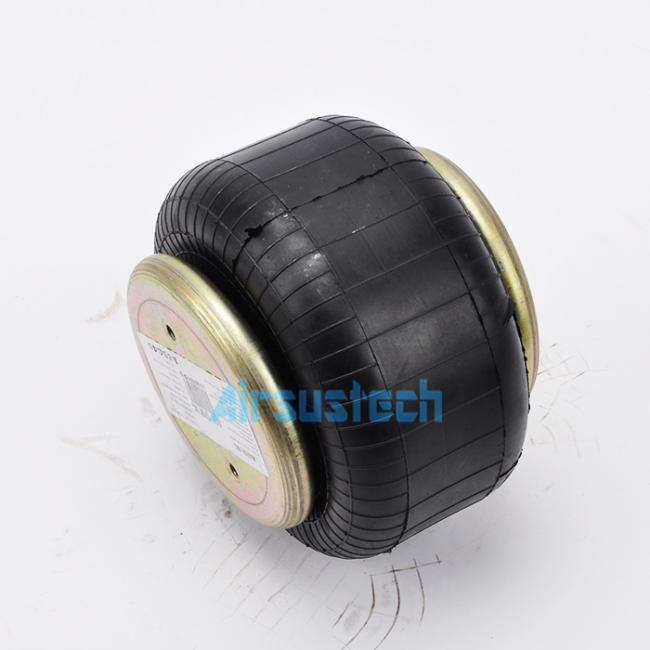

The related picture of 1B7598
