2 Convoluted Industrial Air Springs Goodyear 2B9-218 578923206/2 Replacement
AIRSUSTECH Goodyear 2B9-218 578923206/2 Replacement 2 Convoluted Industrial Air Springs
OEM NO.
Goodyear 2B9-218
Goodyear 2B9 218
Goodyear 2B9218
Goodyear 578923206/2
Firestone W01-358-6927
Firestone W01 358 6927
Firestone W013586927
Firestone WO1-358-6927
Firestone WO1 358 6927
Firestone WO13586927
Contitech FD 200-25 453
Contitech FD 200 25 453
Contitech FD200-25 453
Contitech FD200 25 453
Contitech FD 20025 453
Contitech 161366
Triangle 6332
Triangle 4453
Reyco 12906-01
Reyco 12906 01
SAF Holland 57006927
Tuthill Technology 1290601
Specifications and Detailed Technical Parameters:AIRSUSTECH 2B6927
Nut/blind nut

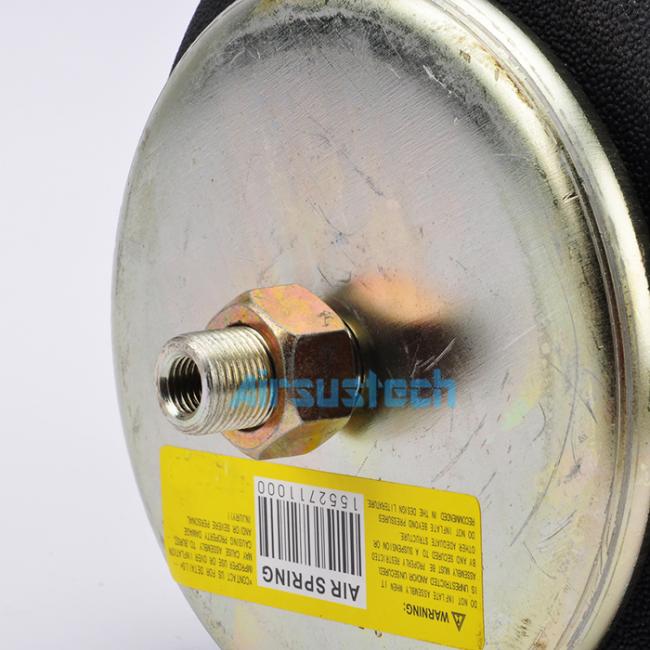

Top plate screw (nut) teeth: 1X3/4-16UNF
The screw center distance of the top cover plate: In the middle

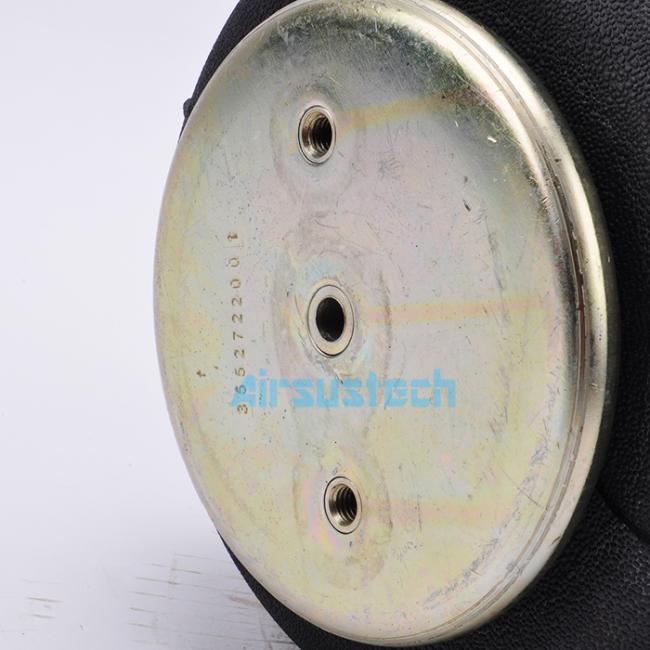

Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
The screw center distance of the bottom cover plate: 89 mm
Air hole/air inlet/air fittings
Air hole/air inlet: 1/4NPTF
The air hole/air inlet is combined with the screw nut
Cover plate
Top plate diameter: 160 mm
Diameter of the bottom cover: 160mm
Bell rubber bellows
Maximum diameter of rubber bellows: 262 mm
Natural diameter of rubber bellows:240 mm
Working stroke: minimum 81 mm to maximum 325 mm
Maximum height: 325mm
Minimum height: 81 mm
Stroke height: 244mm
Bumper block/bumper block
Without bumper block
Belt loop/Girdle hoop/Girdle ring
One piece of belt loop/girdle hoop/girdle ring
Min. pressure: 0bar
Return force to min.height: ≤250N
Overall weight with clamped plates: 3.5kg
Vibration isloation-dynamic characteristic values
Design height H: recommended 254mm, minimum 230mm
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Force (Load) [KN] | 6.0 | 8.1 | 10.2 | 12.3 | 14.4 | 16.5 | 8.6 |
| Spring rate [N/cm] | 730 | 930 | 1200 | 1390 | 1660 | 1840 | |
| Natural frequency [Hz] | 1.8 | 1.8 | 1.7 | 1.7 | 1.7 | 1.7 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 290 | 4.1 | 5.6 | 7.3 | 9.0 | 10.5 | 12.4 | 9.4 |
| 260 | 5.6 | 7.3 | 9.4 | 11.3 | 13.4 | 15.4 | 8.9 | |
| 230 | 6.6 | 8.8 | 11.1 | 13.4 | 15.8 | 18.1 | 8.4 | |
| 200 | 7.5 | 9.9 | 12.5 | 15.0 | 17.6 | 20.2 | 7.7 | |
| 170 | 8.3 | 11.0 | 13.8 | 16.6 | 19.4 | 22.2 | 7.0 | |
| 140 | 8.9 | 11.8 | 14.8 | 17.7 | 20.7 | 23.6 | 6.1 | |
| 110 | 9.3 | 12.3 | 15.6 | 18.7 | 21.9 | 24.6 | 5.1 | |
This rubber air spring can be used in many industrial equipment. It plays an indispensable role in industrial equipment.
Improve the isolation and shock absorption capacity of the equipment: Industrial air springs can provide the best degree of isolation and shock absorption that any other shock absorber can't match. A lower natural frequency can be provided by attaching an external gas storage device.
Industrial air springs enable precise height control: AIRSUSTECH Air springs adjust the operating height through internal air pressure. Industrial air springs do not generate static friction with other components. In the case of changes in bearing capacity, the automatic adjustment of system pressure can ensure a stable operating height.
Effectively prevent resonance: The air spring damping system can be designed with two natural frequencies, so resonance can be prevented by switching the natural frequency.
Improve horizontal stability: The air spring has good horizontal stability. Effectively reduce noise: Industrial air springs can reduce structure-transmitted noise. Since it does not have the spring vibration generated in ordinary coil springs, it does not generate noise by itself.
The related picture of 2B6927
