Product Description

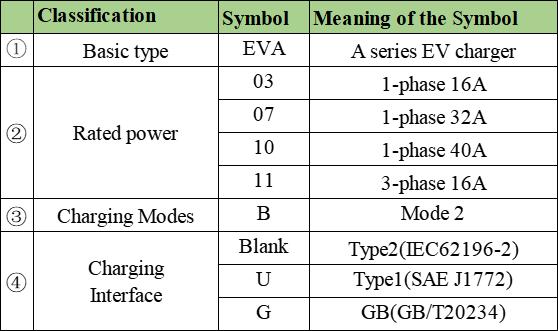

Model Definition

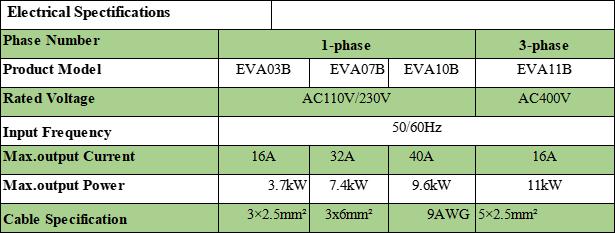

Specification
Main features
Universality
Supports Type 1 (SAE J1772), Type 2 (IEC62196-2), and GB (GB/T20234) connectors.
Suitable for single-phase (110-230V) and high-frequency (400V) power supplies.
Powerful and efficient
Models: 3.7kW (16A), 7.4kW (32A), 9.6kW (40A), 11kW (16A).
Adjustable current: Optimizes charging speed according to your power supply.
Delayed charging: Set charging time via intrusive touch controls.
Robust Safety Protection:
Seven-layer safety system: Overvoltage/undervoltage, short circuit, leakage current, overload, overtemperature, lightning strike, and RCD Type B protection.

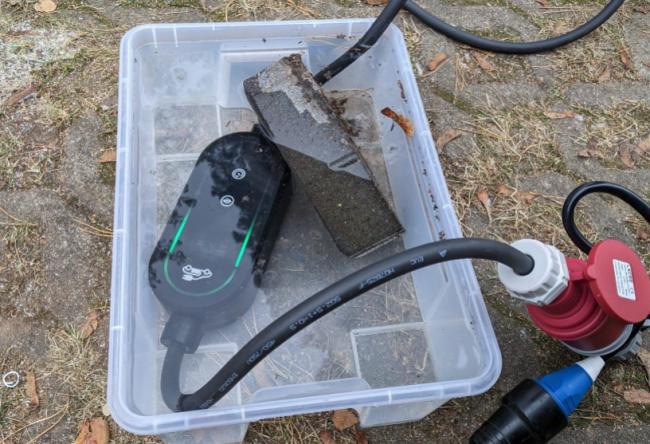

IP67 protection rating: Completely waterproof, suitable for all weather conditions.
Temperature monitoring (optional):
If the plug overheats (>95°C), charging will automatically pause; charging will resume after cooling down.
Intelligent User Experience:
- 1.3-inch OLED Display: Real-time data display (voltage, current, kilowatt-hours, charging time).
- RGB LED Indicators: Visual status indicators (occurring, charging, fault).
- Resume Operation: Easily set current/delay.

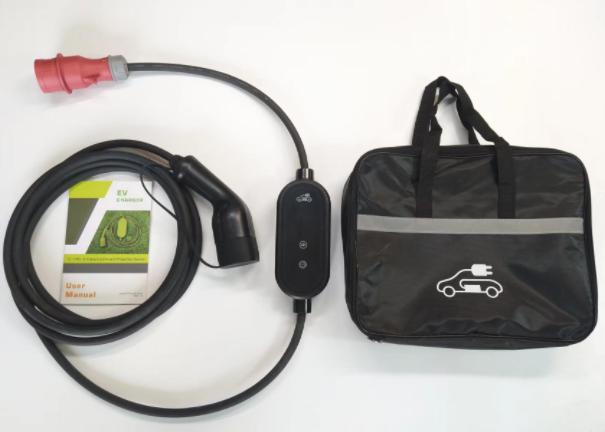

Package contents (basic version):
- EVA portable charger (including 5-meter cable, Type 2 interface) *1;
- User manual *1;
- Hook with stand + storage bag (optional)
