Lightweight 3.7kW Portable EV Charger with IP67 Protection for Residential Charging
Product Overview
This lightweight 3.7kW EV charger is designed specifically for residential AC charging applications. Based on the EVX03B platform, it delivers stable single-phase charging performance while maintaining a compact and portable structure. With a maximum output of 3.68kW and adjustable current from 6A to 16A, it adapts easily to different household electrical systems.
The compact control box and 5-meter charging cable make it convenient for daily garage use. Its flame-retardant and UV-resistant PC housing ensures durability for long-term indoor or semi-outdoor environments. The built-in LCD screen displays charging current, voltage, energy consumption, and time, providing clear monitoring throughout the charging process.
With IP67 protection and natural air cooling, this charger offers reliable performance with minimal maintenance, making it ideal for home EV users.
Key Features
-
3.68kW single-phase AC charging
-
Adjustable current 6A–16A
-
Compact and lightweight design
-
1.47-inch LCD display
-
IP67 protection rating
-
Low standby power (<1W)
Applications
Home charging, garage installation, residential EV charging.

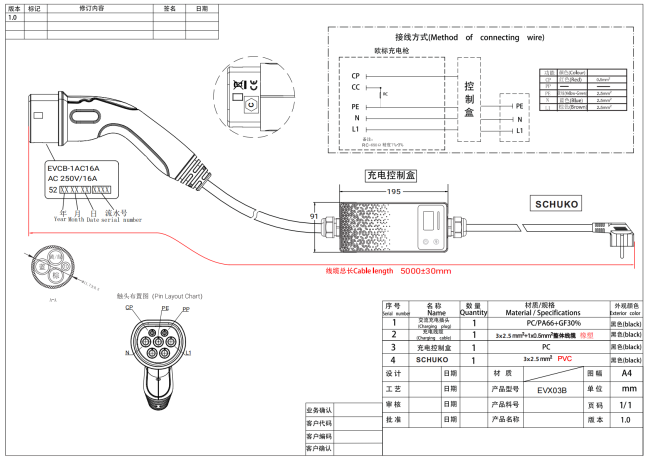

Charger Drawing
Charging time, Consumption(kWh)
Charging voltage /current/ power, Total electricity(kWh),Temperature
Current adjustable from 6A to 16Ain steps of 1A
Delay charging setting
The screen and LED can automatically turn off according to the set time
Optional
Appointment forcharging (based on data and time on the APP)
APP remote control (Bluetooth and WlFl)
Chargingmode (APP/Plug and Play)
View charging records on the APP
Product Model: EVX03B – Specifications
| Category | Item | Specification |
|---|---|---|
| Electrical Parameters | Input / Output Voltage | AC 110V / 230V |
| Input Frequency | 50 / 60 Hz | |
| Max. Output Power | 1-Phase up to 3.68 kW (230V, 16A) | |
| Max. Output Current | 16A for 1-Phase | |
| Standard | EN IEC 62752:2024 | |
| Certificate | CE, RoHS | |
| Protection | Over Voltage Protection | Yes |
| Under Voltage Protection | Yes | |
| Over Load Protection | Yes | |
| Short Circuit Protection | Yes | |
| Leakage Protection | Yes | |
| Over-Temp Protection | Yes | |
| Function & Accessory | LED Indicators | Yes |
| LCD Screen | 1.47-inch | |
| RCD | Type A (Type B optional) | |
| Current Adjustment | Yes | |
| WiFi / Bluetooth | Optional | |
| Relay Adhesion Detection | Yes | |
| RFID Manageable | No | |
| Working Environment | Protection Degree | IP67 |
| Operation Temperature | -30℃ ~ +55℃ | |
| Relative Humidity | ≤95% RH | |
| Operating Elevation Limit | ≤2000 m | |
| Cooling | Natural Air Cooling | |
| Standby Power Consumption | < 1 W | |
| Mechanical Parameters | Charging Cable | 5 m (Standard configuration) |
| Control Box | H × W × D = 195 × 91 × 49 mm | |
| Weight | ≤ 3.0 kg | |
| Colour | Black | |
| Material | PC (Flame retardant, UV resistant) |
