IEC 62196 Type 2 Portable Charger 16A 250V 3.6kW with schuko Plug Duosida Portable EV Charger

Product Description
The Electric Vehicle Charging cable is a portable 16Amp chargingcable. lt has a schuko plug - no assembly required. Just plugin and start charging.

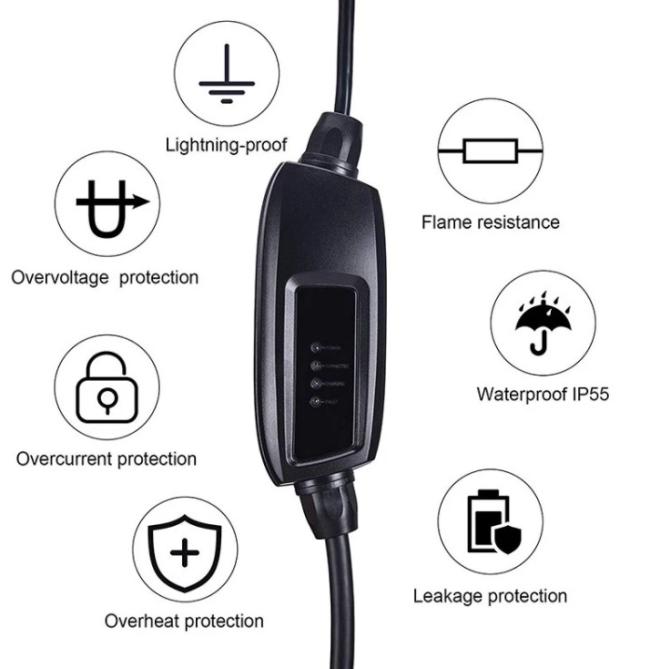

• Waterproof IP55
• Leakage protection
• Overheat protection
• Flame resistance
• Lightning-proof
• Overcurrent protection
• Overvoltage protection

Features
- Input : 110-220V AC 50/60HZ.
- Output: 110-220V AC 10 Amps 50/60HZ
- Charg ing plug meet 62196-2 IEC 2010 SHEET 2-lle standard- Power plug meet AS/NZS 3112:2011 standard
- Control box meet lEC 61851-1 2010 standards
·Excellent protection performance,protection grade lP55-Working condition

Environmental Performance
- Operating temperature: -30℃ to 50℃

Warranty

• All our products are produced under strict quality Inspection·
• 12 Month warranty and life time has free technical support
• Professional aftersales team to make things right within 24hrs

Precautions for use

1. Connection charging: when charging, it is necessary to couple the plug and socket in place. lf there is a crisp sound in thelocking state,it will be locked in place;
2. Note: pull out the charging gun in parallel with the interface.Do not shake the gun when pulling out the charging gun;
3. Use the triangle hook of the control box: after charging,please hang the hook on the fi xed hook to prevent the chargingwire from being damaged;
4. Do not touch metal conductor when working under high current toprevent electric shock accident.
5. The shell of the product is thermoplastic plastic. Do not beimpacted by external force to avoid affecting the use.
6. Charging: first connect the small plug at the tail and thenplug in the charging gun. After charging: first pull out thecharging gun and then disconnect the small plug at the tail.

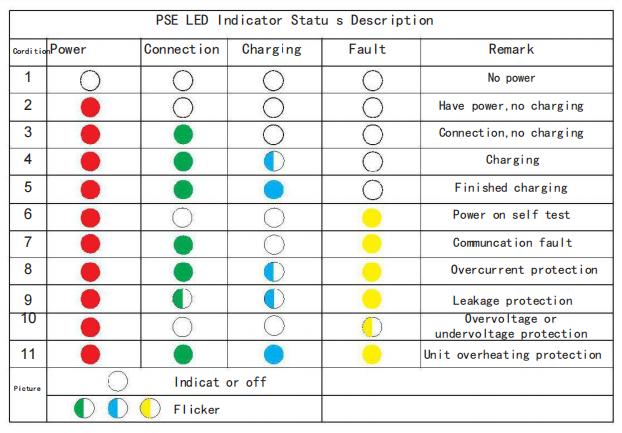

Function description:

Certification: CE
