ESS Electric Car 3.2v 50ah CATL Lifepo4 Battery Long Cycle Life
ESS Electric Car 3.2v 50ah CATL Lifepo4 Battery Long Cycle Life
CATL Lifepo4 Battery Long Cycle Life CATL 3.2v 50ah For EV ESS Electric Car
Key Features of CATL Lifepo4 Battery 3.2v 50ah
♦ Longer Cycle Life : Offers up to 6000 times longer cycle life and 8 times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership.
♦ Lighter Weight : About 35% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries.
♦ Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity.
♦ Wider Temperature Range : -20℃~60℃.
♦ Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation.
♦ Environment friendly: Clean and Green energy poses no pollution on our environment.
Products Descriptions of CATL Lifepo4 Battery 3.2v 50ah:
CATL 3.2v 50ah Lithium Lifepo4 Battery
|
No. |
Items |
Specifications |
|
1 |
Nominal Voltage |
3.2V |
|
2 |
Nominal Capacity |
50Ah |
|
3 |
Standard Charge Current |
10A-25A (0.2C-0.5C rate) |
|
4 |
Max. Charge Current |
50A (1C rate) |
|
5 |
Continuous Discharge current |
2C (120A) |
|
6 |
Peak Discharge Current |
3C(180A) |
|
7 |
Charge Cut-off Voltage |
3.9V |
|
8 |
Discharge Cut-off Voltage |
2.0V |
|
9 |
Inner Resistance (Impedance) |
≤ 1mΩ (At 0.2C rate, 2.0V cut-off) |
|
10 |
Weight |
1.42Kg |
|
11 |
Dimensions |
Length: 133mm Width: 174mm Thickness: 32mm |
|
12 |
Operating Temperature |
Charging: 0°C ~ 45°C Discharging: -20°C ~ 60°C (The cell surface temperature cannot exceed 70°C) |
|
13 |
Storage Temperature/Humidity |
Temperature: -10°C ~ +35°C Humidity:65%±20%RH (optimal store temperature of 23 ± 5°C for long term storage) |
|
14 |
Cycle Life |
≥2000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard) |

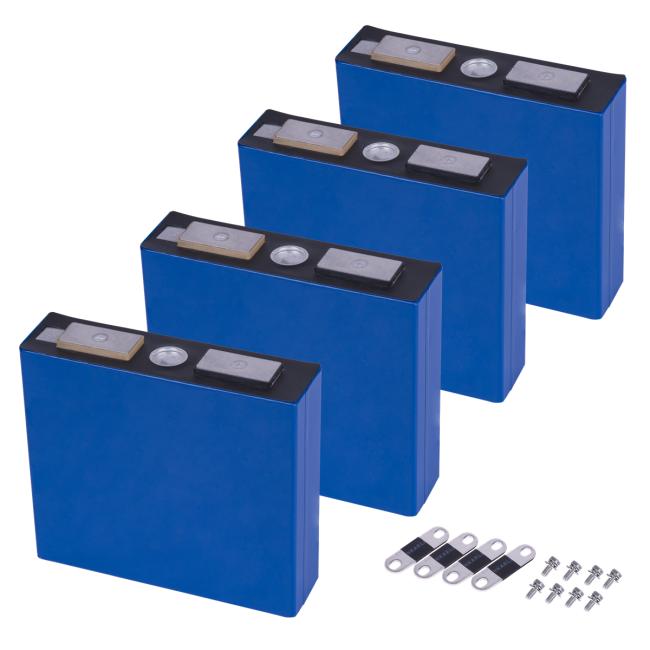

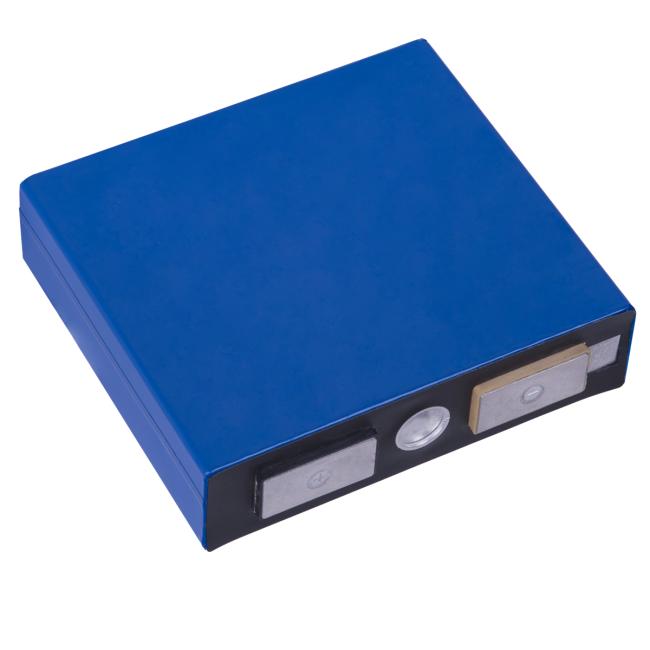

Images of CATL Lifepo4 Battery 3.2v 50ah
Packaging & Delivery for CATL Lifepo4 Battery
1. Standard exporting packing way,according to different battery size and Types of battery we can do customization service for package.
2. Port:Shenzhen
Product market of CATL Lifepo4 Battery 3.2v 50ah
The rising global demand for solar,wind and other clean energy has seen the market grow exponentially over the last few years, with the trend predicted to continue. Due to the inherent limitations of renewable energy, the lithium battery energy storage industry develop rapidly.
Long cycle life high quality CATL 3.2v 50ah Lithium Lifepo4 Battery for EV ESS golf cart
1. More than 3500 cycles under the designed working condition
2. Anti-explosion safety valve applied
3. Aluminum shell for better cooling
4. Ceramic membrane technology applied to enhance safety
5. Wild applications :UPS ,Solar Storage ,EV etc.application
Aplication for CATL Lifepo4 Battery 3.2V 50Ah
Passenger and commercial plug-in hybrid electric vehicles (PHEVs).
· Passenger and commercial battery electric vehicles (BEVs).
· Mild and micro hybrid vehicles.
· Long-Duration (LD) grid energy storage systems.
1) Electric vehicles and charging stations, tourist coaches, yachts, wind and solar energy storage power, traffic signals.
2) Solar hybrid street lighting, UPS power supply, home storage.
3) Coal, disaster relief emergency, weather radar, electricity, smart grid, communication base stations.
4) Hospitals, finance, telecommunications , system critical backup power systems.
Why Choose us
1. Rich Experience: Professional Manufacturer in lithium-ion battery for many years
2. Low MOQ: It can meet your business very well.
3. OEM/ODM accepted: Please send us your requirements
4. Good Service: We treat clients as friend with quickly action & respond
5. High quality:100% tested in production, mass production are start after your confirmation received.
6. Fast & Safe Delivery: We are in Shenzhen, with convenient transportation
Package & Shipping for CATL Lifepo4 Battery Cell
