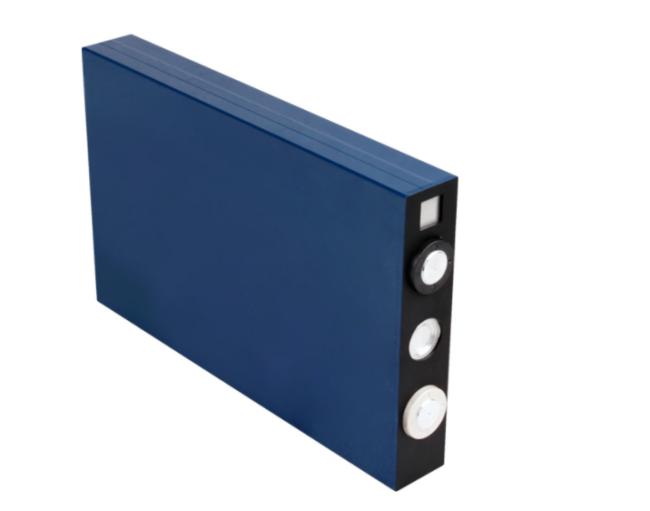

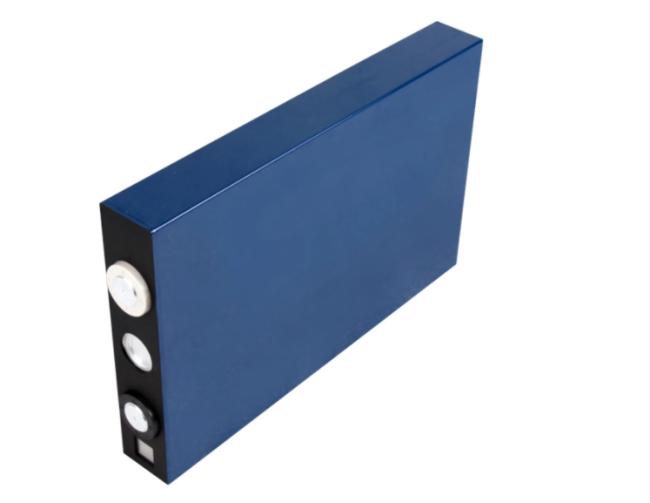

3.2V 68AH L135F68 Deep Cycle Lifepo4 Battery Pack CALB Brand New
3.2V 68AH L135F68 Deep Cycle Lifepo4 Battery Pack CALB Brand New
CALB Brand New With QR Code 68AH L135F68 Energy Power Deep Cycle Battery
What Amazing Energy can ganrantee & provide you?
1. Officially authorized by CALB
2. All CALB batteries are authentic with full capacity in A Grade
3. Complete export certification qualifications,
CE/UL/FCC/MSDS/UN38.3
4. We provide 3 years warranty.
5. Goods in Stock,ready to ship
Parameter-68AH L135F68 Energy Power Deep Cycle Battery
|
Nominal Voltage
|
3.2V
|
|
Nominal Capacity
|
68Ah
|
|
Standard Charge Current
|
13.6A (0.2C rate)
|
|
Max. Charge Current
|
68A (1C rate)
|
|
Charge Cut-off Voltage
|
3.65V
|
|
Standard Constant Discharge current
|
68A/1C
|
|
Max Constant Discharge current
|
136A/2C
|
|
Discharge Cut-off Voltage
|
2.5V
|
|
Inner Resistance
|
≤ 1mΩ (At 0.2C rate, 2.5V cut-off)
|
|
Weight
|
1.65Kg
|
|
Dimensions
|
Length: 199mm
Width: 135.2mm
Thickness: 29.5mm
|
|
Operating Temperature
|
Charging: 0°C ~ 45°C
Discharging: -20°C ~ 60°C
(The cell surface temperature cannot exceed 70°C)
|
|
Storage Temperature/Humidity
|
Temperature: -10°C ~ +35°C
Humidity:65%±20%RH
(optimal store temperature of 23 ± 5°C for long term storage)
|
|
Cycle Life
|
≥2000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard)
|
How you can connect?
*Option 1-laser-beam welding
Connect the cell by the bolts,,much more easy
no need the welding machine ,more suitable for the DIY
We offer the related connector and screw
Note:
Application
Widely used in electric sprayer, solar power general, energy storage devices, telecom base station, solar street light, UPS, ESS and so on.
