IP56 ESS 12 Volt Lifepo4 Battery 100ah 3000 Cycles For Boat Marine RV

Price Negotiable
Price: Negotiable
MOQ: 10 packs
Delivery Time: 10-15 days
Brand: Amazing Energy
Product Description

ESS 12 Volt Lifepo4 Battery 12v 100ah For Boat Marine RV 3000 Cycles



Specification of ESS 12 Volt Lifepo4 Battery 12v 100ah

Electrical
Characteristics
Nominal Voltage
12.8V
Nominal Capacity
100Ah@0.2C
Energy
1280Wh
Internal Resistance
≤50mΩ
Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
Self Discharge
≤3.5% per month at 25℃



Standard Charging
Max.Charging Voltage
14.0~14.6V


Charging Mode
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not
more than 0.02C
Charging Current
20A
Max.Charging Current
50A



Standard Discharging
Discharging Current
50A
Max. Continuous Current
80A
Max.Pulse Current
200A(<3S)
Discharging Cut-off Voltage
10.0




Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance
IP56



Structure
Cell & Format
IFR32700 N65,4S16P
Casing
Plastic
Dimension(L*W*H*TH)
328*172*216*216
Weight
Approx. 12.5Kg
Terminal
M8

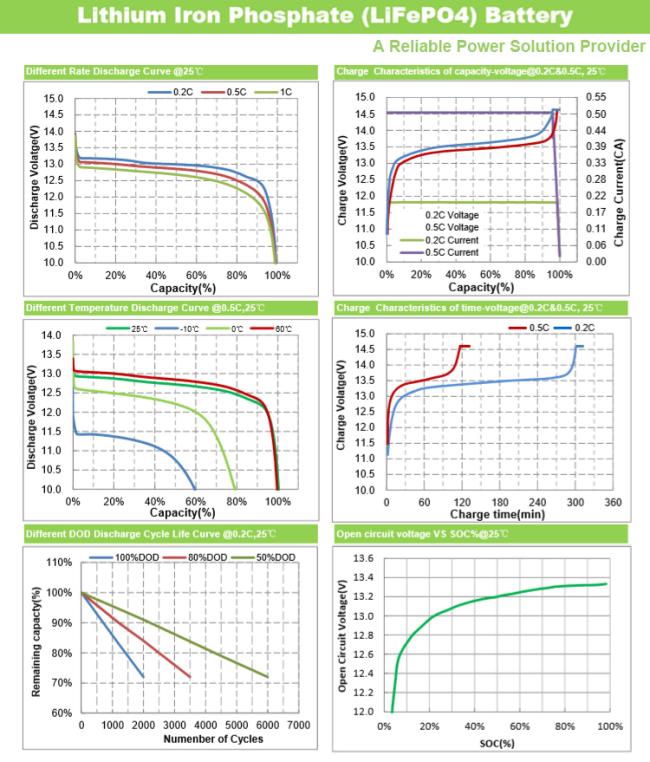

The Test data of ESS 12 Volt Lifepo4 Battery 12v 100ah

Capacity under different discharge rate

Capacity different temperature

Cycle life under different deep of discharge



Features of ESS 12 Volt Lifepo4 Battery 12v 100ah
1. Under normal conditions, using lithium iron phosphate battery technology, with excellent safety, thousands of cycles, 100% DOD.

2. Built-in automatic protection function to prevent overcharging, overdischarging, overcurrent and overheating.

3. Maintenance free.

4. Internal battery balance.

5. Light weight: about 40%~50% of the weight of lead-acid batteries.

6. Can be charged using most standard lead acid charge (set).

7. Wide temperature range: -20 ° C ~ 60 ° C.

8. Support for series application extensions (up to 51.2V) and two parallels.



Applications of ESS 12 Volt Lifepo4 Battery 12v 100ah
