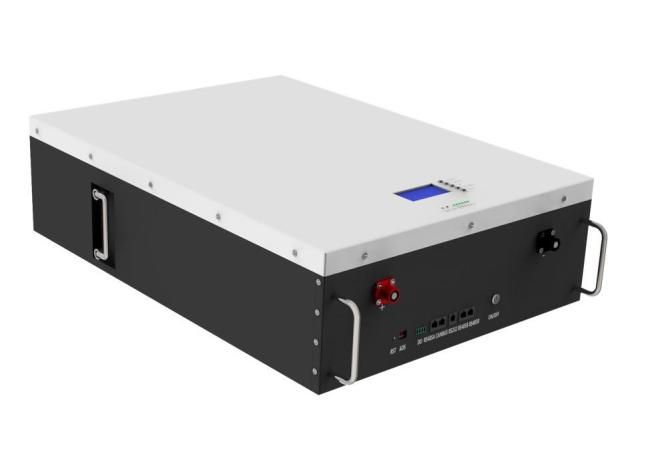

10KW lifepo4 Battery For Home Energy Storage Power Storage Wall mount solar battery
10KW Lifepo4 Battery For Home Energy Storage Power Storage Wall Mount Solar Battery
The Advantages of 10KW Lifepo4 Battery For Home Energy Storage Power Storage Wall
1. High Energy: 10KWh energy storage, can meet 1-2 days electricity usage of Home.
2. Bank-up function: no need worry of out of electricity when any emergency situation.
3. Solar system. can work with Solar panels to storage Solar energy. save money and eco friendly
4. Save electricity fee. can adjust electricity usage when high price, and save more money.
5. Long service life: Lifepo4 battery Prismatic cell, can service 3000 times when left 80% energy, that is mean can service 10~15 years when High frequency of use.
6. Safe. Lifepo4 battery has no possibility of explosion when any usage condition, it is very safe to place it in house.
7. Save space . Wall mounted design, don't take up space.
Basic specification of 10KW Lifepo4 Battery For Home Energy Storage Power Storage Wall
| NO. | Item | General Parameter | Remark |
| 1 | Combination method | 15S4P | |
| 2 | Typical Capacity | 200Ah |
Standard discharge after Standard charge
|
| 3 | Factory Voltage | 49V-51.0V(40-60%) | Mean Operation Voltage |
| 4 |
Voltage at end of
Discharge
|
40-44V
|
Discharge Cut-off Voltage |
| 5 | Charging Voltage | 53-55V | |
| 6 | Internal Impedance | ≤60mΩ |
Internal resistance measured at AC 1KHZ
after 50% charge
The measure must uses the new batteries
that within one week after shipment and
cycles less than 5 times
|
| 7 | Standard charge |
Constant Current 40A
Constant Voltage see No.5
0.02CA cut-off
|
Charge time : Approx 6 h Limiting current 20A |
| 8 | Standard discharge |
Constant current:40A
|
end voltage see NO.4 |
| 9 |
Maximum Continuous
Charge Current
|
100A
|
≥10ºC |
| 10 |
Maximum Continuous
Discharge Current
|
100A
|
≥10ºC |
| 11 |
Operation Temperature
Range
|
Charge: 0~45℃ Discharge: -20~55℃ |
60±25%R.H.
Bare Cell
|
| 12 |
Storage Temperature
Range
|
Less than 12 months : -10~35℃ less than 3 months: -10~45℃ Less than 7 day : -20~65℃ |
at the shipment state |
| 13 | Dimensions |
680*485*180 (220)mm
Include Bracket
|
|
| 14 | Weight | 103KG |
The BMS function introduction of 10KW Lifepo4 Battery For Home Energy Storage Power Storage Wall
Case Stracture of 10KW Lifepo4 Battery For Home Energy Storage Power Storage Wall
The connection image of RS485 Parallel Communication
Address Switch function ( only in Parallel)
The Package of 10KW Lifepo4 Battery For Home Energy Storage Power Storage Wall
The Wooden package of 4 sets
The Wooden package of 6 sets
FAQ
Q1: Before order, can I have samples for testing?
A: Yes, we can provide you samples for testing firstly.
Q2: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3: How to proceed an order?
A: 1. Contact our service & let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
Q4: What kind of environment should lithium batteries store?
A: -40°C~50°C, 65±20%RH storage for a long time(>3 months)
and the storage condition shall be:<35°C , 65±20%RH
Q5: What is MOQ?
A: Low MOQ, 1pc for sample checking is available.
