Double Acting Sheet Drawing Stretcher Machine Multi Bottom Cylinder YH27-315t Hydraulic Press
Price:
As discuss
MOQ:
One set
Delivery Time:
It depends on the actual situation
Brand:
Gracias
Product Description

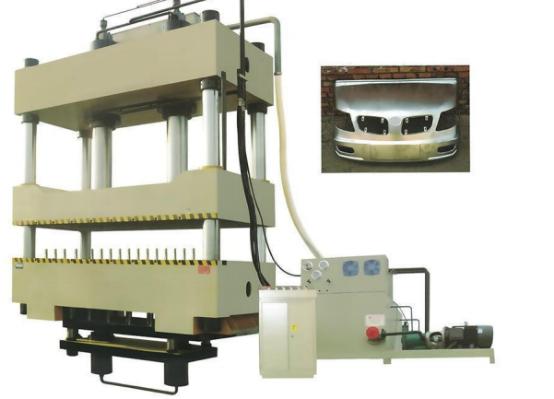

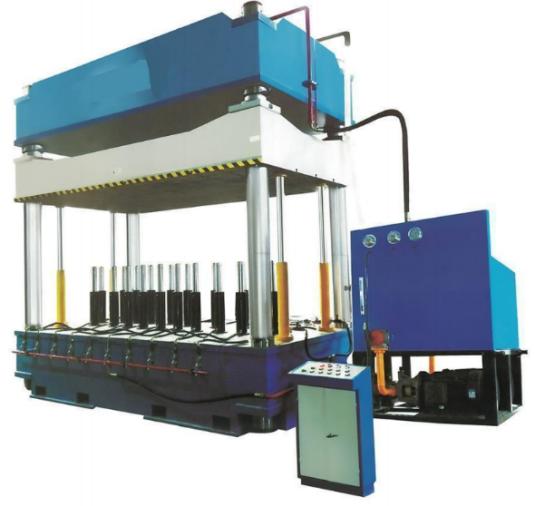

Multi Bottom Cylinder Double Acting Sheet Drawing Machine
YH27-315T Dingle Acting Stretcher(Double Cylinder Hydraulic Stretcher)
Feature:
- the use of advanced PLC hydraulic transmission technology, high science and technology, low failure rate, high degree of automation, high work efficiency.
- the main engine structure is compact, covers an area of small, easy to move and transport.
- four groups of oriented structure, forming pressure, high compactness of pressed products, not easy to break.
- the hydraulic pump station structure design is reasonable, highly centralized hydraulic control valve block and unique oil circuit design make the hydraulic system perfect, effectively achieve continuous normal production.
- electrical control program to achieve man-machine interaction, simple operation, convenient and fast.
- low rate, small calorific value, high working efficiency, power saving and durable.
Parameter:
| Specification | Unit | 63T | 100TA | 100TB | 160TA | 160TB | 200TA | 250TA | 250TB | 315TA |
| Capacity | KN | 630 | 1000 | 1000 | 1600 | 1600 | 2000 | 2500 | 2500 | 3150 |
| Pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Travel | mm | 400 | 300 | 500 | 500 | 400 | 500 | 500 | 600 | 500 |
| Max Open height | mm | 600 | 600 | 800 | 800 | 800 | 900 | 900 | 1100 | 900 |
| Table Size | mm*mm | 520*520 | 640*550 | 700*620 | 700*700 | 800*800 | 800*800 | 800*800 | 1200*1000 | 800*800 |
| Down Speed | mm/s | 54 | 80 | 54 | 30 | 30 | 30 | 32 | 32 | 60 |
| Press Speed | mm/s | 15-24 | 16-24 | 16-24 | 8-15 | 8-15 | 8-12 | 6-12 | 8-12 | 6-12 |
| Up Speed | mm/s | 46 | 80 | 46 | 28 | 30 | 20 | 20 | 20 | 60 |
| Motor Power | Kw | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 11 | 15 |
| Weight | Kg | 1400 | 1900 | 2400 | 2700 | 3500 | 4000 | 5300 | 6900 | 6200 |
| Machine height | mm | 2300 | 2300 | 2700 | 3000 | 2800 | 2835 | 3200 | 3280 | 3500 |
| Specification | Unit | 315TB | 400TA | 400TB | 500T | 630T | 1000T | 1200T | 1600T | 2000T |
| Capacity | KN | 3150 | 4000 | 4000 | 5000 | 6300 | 10000 | 12000 | 16000 | 20000 |
| Pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Travel | mm | 600 | 600 | 700 | 900 | 900 | 900 | 700 | 900 | 900 |
| Max Open height | mm | 1100 | 1000 | 1200 | 1500 | 1500 | 1500 | 1100 | 1600 | 1600 |
| Table Size | mm*mm | 1260*1160 | 1000*1000 | 1400*1250 | 1400*1400 | 1600*1200 | 2000*1500 | 2100*1600 | 2000*1600 | 2000*2000 |
| Down Speed | mm/s | 60 | 130 | 130 | 100 | 130 | 150 | 150 | 150 | 150 |
| Press Speed | mm/s | 6-12 | 8-12.5 | 8-12.5 | 12-15 | 12-15 | 12-15 | 6-12 | 8-12 | 6-12 |
| Up Speed | mm/s | 60 | 80 | 80 | 100 | 120 | 100 | 120 | 120 | 120 |
| Motor Power | Kw | 15 | 18.5 | 18.5 | 15*2 | 18.5*2 | 30*2 | 30*2 | 37*2 | 45*2 |
| Weight | Kg | 11000 | 9200 | 12500 | 18000 | 23000 | 39000 | 41000 | 68000 | 75000 |
| Machine height | mm | 4200 | 3800 | 4200 | 4350 | 4550 | 6000 | 5500 | 6400 | 7000 |
