Back Sealing Granule Packaging Machine Stainless Steel 1.0kw / Yh-QBK50 / BK50
Price:
As discuss
MOQ:
One set
Delivery Time:
25-30 work days
Brand:
Gracias
Product Description

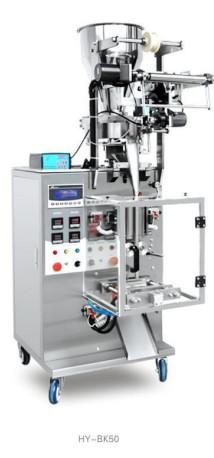

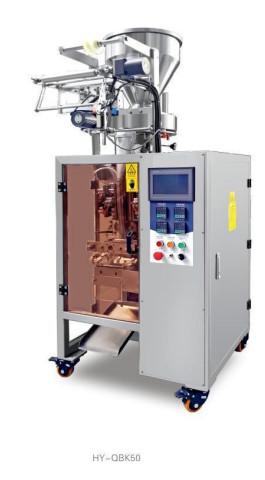

YH-QBK50/BK50 Back Sealing Granule Packaging Machine
Mechanical characteristics and product characteristics:
1. The equipment is easy to operate and easy to maintain.
2. The whole bracket is made of all stainless steel, non-outsourced stainless steel.
3. The equipment is compatible, and different specifications can be realized by changing the mold.
Parameter:
| Modelnumber | YH-QBK50 | YH-K50 |
| Filling range | 1-50ml | 1-50ml |
| Sachet size | W:30-100mm L:30-150mm | W:30-100mm L:30-150mm |
| Max.film width | 220mm | 220mm |

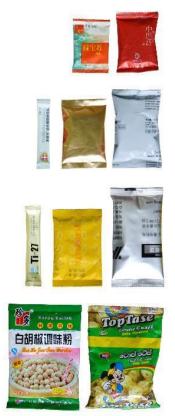

| Sachet type | Stick | |
| Control | SIEMENS PLC + TOUCH SCREEEN | EASY PACK CONTROL |
| Filling method | Volumetric cups | Volumetric cups |
| Capacity | 30-50 bags/min PPM | 30-50 bags/min PPM |
| Power voltage and consumption | 220V50-60HZ/1.0KW | 220V50-60HZ/1.0KW |
| Air pressure and consumption | 0.3m³/min 0.6-0.8Mpa | 0.3m³/min 0.6-0.8Mpa |
| Dimension(L*W*H) | 880*700*1850mm | 670*850*1755mm |
| Weight | 250KG | 200KG |
