PLC Combination Linear Scale Packaging Machine 50Hz 3Kw YH - 320
Price:
As discuss
MOQ:
One set
Delivery Time:
25-30 work days
Brand:
Gracias
Product Description

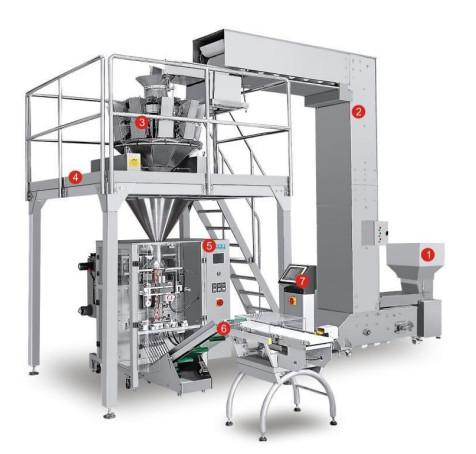

YH-320/420/520/620KT Combination Scale Packaging Machine
Applications:

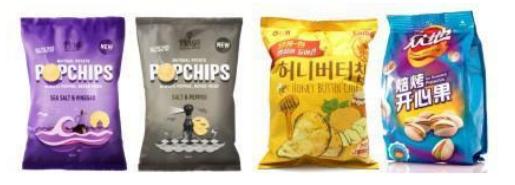

- Applicable to the automatic packaging of granular, flake,blockand other products with a diameter of not more than 6cm in thechemical, food, health care and pharmaceutical industries,such as: washing powder, plastic granules, sugar, salt, spiceseasoning, soybean,corn kernel, peanut , melon seeds, broadbeans, nuts, potato chips, Chinese herbal medicines, etc.
Parameter:
| Model number | YH-320KT | YH-420KT | YH-520KT | YH-620KT |
| Filling range | 5-200ml | 10-1000ml | 10-1500ml | 100-3000ml |
| Sachet size | W:100-150mm L:100-200mm | W:150-200mm L:160-250mm | W:200-250mm L:210-300mm | W:200-300mm L:210-380mm |
| Max,film width | 320mm | 420mm | 520mm | 620mm |
| Sachet type | Back seal serrated/back seal gusset bag/back seal with bag /back seal punching bag | |||
| Filling method | Combination scale/linear scale | |||
| Capacity | 20-50bag/min | 20-50bag/min | 20-45bag/min | 20-45bag/min |
| Power | 220V50-60HZ/3KW | 220V50-60HZ/3.5KW | 220V50-60HZ/4KW | 220V50-60HZ/4.5KW |
| Dimension(L*W*H) | 1000*1160*2800mm | 1250*1160*3200mm | 1550*1160*3500mm | 1650*1160*3500mm |
| Weight | 600KG | 800KG | 900KG | 950KG |
