3 - 4ton / H PLC Aquatic Pets Feed Production Line 35 * 6 * 7M Commercial Use

Price Negotiable
Price: As discuss
MOQ: One set
Delivery Time: 25-30 work days
Brand: Gracias
Product Description



3-4ton/h Commercial Use Aquatic/Pets Feed Production Line











Applications:





  • Fish feed pellet machine using for aquaculture and pet food.For example: fish,shrimp ,dog,cat and so on.Just change mould can make different size and shape







Freature:





  • The screw is made of chromium alloy steel and undergoes special heat treatment. long service life and wear-resistant.
  • The motor uses a standard pure copper motor that is stable and durable, and Siemens motors can be customized.
  • The fuselage uses environmentally friendly spray technology to resist corrosion and not easy to rust.
  • Machine body made of high-thickness steel plate, strong and stable, not easy to damage.
  • Can make different size from 1mm-12mm ,suitable for different stage of fish.





Parameter:





Capacity 3-4ton/h
Range of application Suitable for large commerical Aquatic/pets feed factory
Product advantage Long working life,make high protein feed , Stable output, high efficiency,continuous work, labor saving, can pack directly,pellet size could be chosenfrom 1-12mm

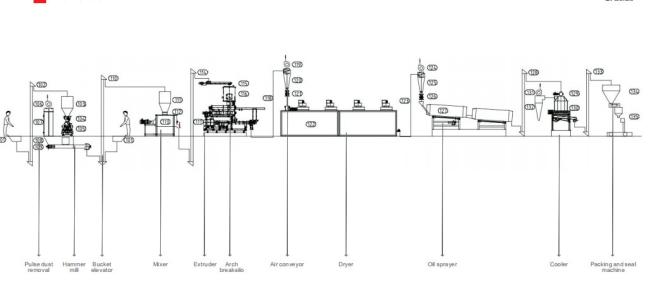

Precess flow 1.bucket elevator-2.buffer bin-3.impeller feeder with iron removal device-4.hammer mill with dust collector-5.bucket elevator -6.buffer bin-7.mixer-8..bucket elevator-9.Broken arch bin-10.wet way feed pellet extruder-11.air conveyor-12.dryer -13.bucket elevator-14.seasoning machine-15.bucket elevato -16.cooler-17.bucket elevator-18. finished product silo-19.packing and seal machine
Size for whole line 35*6*7m
Workers requirments 2-3peoples
Shipment requirments 4*40ft container
