Pillow Bag Weighing And Packing Machine Seal Type Bag 65bags / Min Series 2 In 1
Price:
As discuss
MOQ:
One set
Delivery Time:
25-30 work days
Brand:
Gracias
Product Description

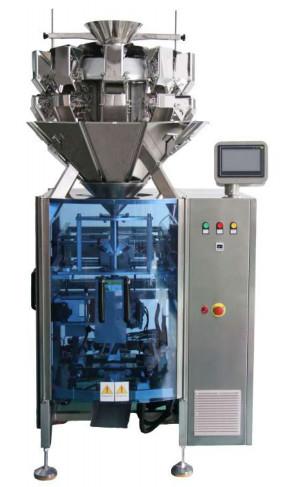

YH-MC series weighing andpacking 2 in 1 machine
Applications:

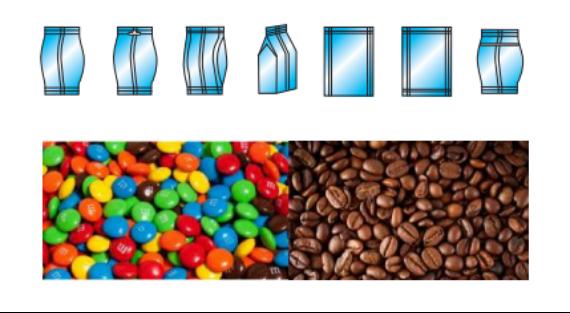

- Applicable bag type: Pillow bag,Gusset bag,Seal type bag.
- Applicable film materials:A variety of laminated films,single-layerPE film,Film thickness range 0.04mm~0.15mm.
- Applicable packing materials:A variety of recreation food,frozenfood,coffee beans,oatmeal,granulated sugar,salt,rice,pet food,small hardware etc.
Freature:
- PLC control,man-machine interface,easy to operate andmaintaince.
- Equiped with double servo motor and optical tracking devices to keep accuracy and high speed.
- Automatic multihead weighing and vertical packaging combinein one unit(2 in 1 technology).
Parameter:
| Model | YH-MC361003 | YH-MC361005 | YH-MC361016 |
| Weigher Heads | 10 heads | 10 heads | 10 heads |
| Max single dump cap(g) | 3-50g | 3-200g | 10-2000g |
| Weighing accuracy | ±0.1-0.5g | ±0.1-1.0g | ±0.1-1.5g |
| Maximum weighing speed | 60WPM | 65WPM | 70WPM |
| Volume | 300ml | 500ml | 1600ml |
| Film Width | 140-360ml | 140-360ml | 160-460ml |
| Bag size | L*W=(60-250)mm*(50-170)mm | L*W=(60-250)mm*(50-170)mm | L*W=(60-300)mm*(60-220)mm |
| Maximum packing speed | 65bags/min | 65bags/min | 60bags/min |
| Film pulling driven system | servo motor | servo motor | servo motor |
| Horizontal sealing driven system | cylider | cylider | cylider |
| Voltage | 3.8KW/220V/50(60)Hz | 3.8KW/220V/50(60)Hz | 4.6/220V/50(60)Hz |
| Gas pression | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| Gas consumption | 0.4m³/min | 0.4m³/min | 0.6m³/min |
| Machine dimension | L*W*H=1306*1059*2002mm | L*W*H=1306*1059*2002mm | L*W*H=1645*1140*2509mm |
| Machine weight | 530kg | 550kg | 750kg |
