Single Layer Economic Vertical Packing Machine Pe Film 0.6mpa 2.15 - 5.5kw YH-E Series

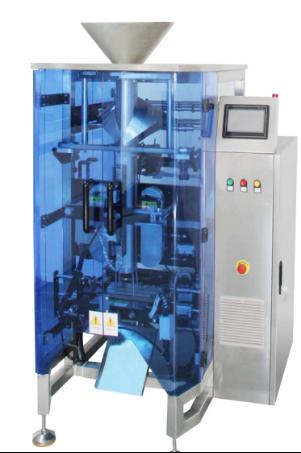

YH-E series Economic vertical packing machine
Applications:
1.Applicable bag type: Pillow bag, Gusset bag,Seal typebag.
2.Applicable film material: a variety of laminated films,single-layer PE film. Thickness range 0.04mm~0.15mm.
3.Applicable packing material: a variety of recreation food,frozen food, coffee beans, oatmeal, granulated sugar,rice, pet food, small hardware etc.
Freature:
1.PLC control,man-machine interface,easy to operate andmaintaince.
2.Driven by double servo motor and optical tracking devices to keep high packing speed and high accuracy.
3.The frame of machine is made of #304 stainless steel,equipedwith auto-stop protection function when open the door.
Parameter:
| Model | YH-E3220 | YH-E4230 | YH-E5235 |
| Film Width | 140-320mm | 160 ~420mm | 180-520mm |
| Bag Size | L*W=(60 ~ 200)mm*(50-150)mm | L*W=(60 ~ 300)mm*(60 ~200mm | L*W=(60 ~ 350)mm*(70 ~250mm |
| Maximum Packing speed | 70bags/min | 65bags/min | 60bags/min |
| Voltage | 2.15KW/220V/50(60)Hz | 3.4KW/220V/50(60)Hz | 3.4KW/220V/50(60)Hz |
| Gas Pression | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| Gas Consumption | 0.5m³/min | 0.6m³/min | 0.7m³/min |
| Machine Dimension | L*W*H=1158mm*930mm*1213mm | L*W*H=1455mm*1040mm*1470mm | L*W*H=1540mm*1160mm*1600mm |
| Machine Weight | 350Kg | 400Kg | 450Kg |
| Model | YH-E6240 | YH-E7245 |
| Film Width | 160 ~620mm | 200 ~720mm |
| Bag Size | L*W=(70 ~ 400)mm*(80 ~300mm | L*W=(70~ 450)mm*(80-350)mm |
| Maximum Packing speed | 50bags/min | 0-70bags/min |
| Voltage | 3.6KW/220V/50(60)Hz | 5.5KW/220V/50(60)Hz |
| Gas Pression | 0.6Mpa | 0.6Mpa |
| Gas Consumption | 0.8m³/min | 0.4m³/min |
| Machine Dimension | L*W*H=1640mm*1226mm*1709mm | L*W*H=1748mm*1344mm*1965mm |
| Machine Weight | 550Kg | 630Kg |
