YH-HP Series Horizontal Packing Machine Highly Sensitive Photoelectric High Accuracy
Price:
As discuss
MOQ:
One set
Delivery Time:
25-30 work days
Brand:
Gracias
Product Description

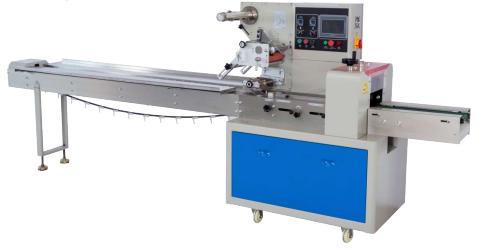

YH-HP series horizontal packing machine
Applications:
1.Applicable Packing Materials: biscuit, bread, moon cake,candy, medicine, hardware, meat,
vegetable or loaded by box/tray, etc.
Freature:
1.Automatic bag length detecting and setting while machine running.
2.Double frequency converter to control bag length and packing speed.
3.Highly sensitive photoelectric device to keep high accuracy.
4.lndependent temperature control for each sealer to make
tight sealing and suit for variety of flexible packing material.
Parameter:
| Model | WP-HP250B | WP-HP250D | WP-HP320B |
| Max. Film Width | 250mm | 250mm | 320mm |
| Bag Length | 60-190mm/120-280m | 90-220mm/150-330m | 65-190mm/120-280m |
| Bag Width | 50~110mm | 50~110mm | 50-160mm |
| Max.Product Height | 40mm | 60mm | 40mm |
| Max. Roll Film Diameter | 350mm | 350mm | 320mm |
| Packing Speed | 40~180bags/min | 40~180bags/min | 40~180bags/min |
| Power Requirement | 2.6KW/220V/50N(60)Hz | 2.6KW/220V/50N(60)Hz | 2.6KW/220V/50N(60)Hz |
| Machine Size | L*W*H=3770*720*1450mm | L*W*H=3770*720*1450mm | L*W*H=3770*720*1450mm |
| Machine Weight | 450KG | 450KG | 460KG |
| Model | WP-HP400D | WP-HP450D | WP-HP600D |
| Max. Film Width | 400mm | 450mm | 600mm |
| Bag Length | 150-400m | 150-450m | 150-450m |
| Bag Width | 30-190mm | 50-210mm | 50-280mm |
| Max.Product Height | 80mm | 100mm | 100mm |
| Max. Roll Film Diameter | 350mm | 350mm | 350mm |
| Packing Speed | 40-180bags/min | 40-150bags/min | 40-150bags/min |
| Power Requirement | 2.8KW/220V/50N(60)Hz | 2.8KW/220V/50N(60)Hz | 2.8KW/220V/50N(60)Hz |
| Machine Size | L*W*H=4020*800*450mm | L*W*H=4020*800*1450mm | L*W*H=4020*900*1450mm |
| Machine Weight | 500KG | 580KG | 600KG |
