YH-SL Series Sleeve Label Machine Adjustable Cutter Head 3KW / 220V / 50Hz

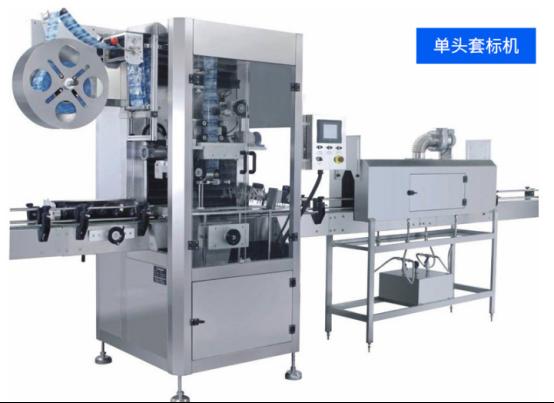

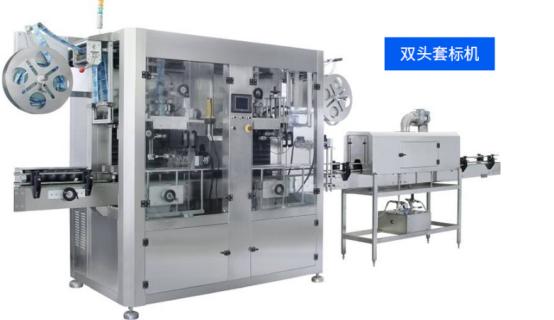

YH-SL series sleeve label machine
Freature:
1.Adjustable cutter head: unique cyclotron cut-off.
2.Double positioning central column for the stable label conveying. 3.Synchronous bottle distributor: No sloshing in conveying the bottles.Label grouping: higher labeling accuracy.
4.Label control electronic eye stand: unique empennage and electronic eye combination to enhance the film cutting accuracy.
5.Bottle type and size need replacing the central column and the bottle distributing screw and cutter head.
6.Section of the conveyor belt in the labeling machine and its driving force is controlled by the labeling machine.
7.Touch screen control cabinet: more custom-fit operation.
Parameter:
| Model | YH-SL250 | YH-SL350 | YH-SL400 | YH-SL450 |
| Amount Of Working Position | 1 | 1 | 1 | 1 |
| Applicable Bottle Diameter Range | X50~X125mm | X50~X125mm | X50~X125mm | X50~X125mm |
| Bottle Height | 100~-320mm | 100~-320mm | 100~-320mm | 100~-320mm |
| Applicable Bottle Types | round, square, irregular | round, square, irregular | round, square, irregular | round, square, irregular |
| Label Thickness | 0.03~0.08mm | 0.03~0.08mm | 0.03~0.08mm | 0.03~0.08mm |
| Speed | 250bottles/min | 350bottles/min | 400bottles/min | 450bottles/min |
| Applicable Label Material | PVC/PET/OPS | PVC/PET/OPS | PVC/PET/OPS | PVC/PET/OPS |
| Label Length | 30~190mm(Max) | 30~190mm(Max) | 30~190mm(Max) | 30~190mm(Max) |
| Power Requirement | 3KW/220V/50(60)Hz | 3KW/220V/50(60)Hz | 3KW/220V/50(60)Hz | 3KW/220V/50(60)Hz |
| Machine Size | L*W*H=2100*1150"2000mm | L*W*H=2100*1150"2000mm | L*W*H=2100*1150"2000mm | L*W*H=2100*1150"2000mm |
| Machine Weight | 400KG | 400KG | 400KG | 400KG |
