Welded Down Pipe Roll Forming Machine 10m/min Cr12 Cutting
Welded Down Pipe Roll Forming Machine 10m/min Cr12 Cutting
Summary:

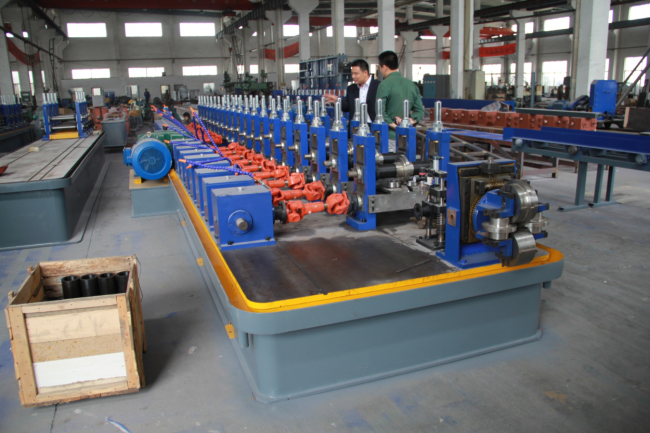

The mill is intended for manufacturing of round pipe of Φ12mm-Φ76mm with thickness of 0.5mm–2.5 mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder,longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths. Finished product will be of round, square or rectangular pipe.
Main equipment:
Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.
Technical parameters
inner tight decoiler
| coil inner diameter | 450mm--700mm |
| max width of coiling | 1250mm |
| max weight of loading | 5000kg |
main forming machine
| Shaft material | 45# steel,bearing steel outer diameter 85mm |
| Main motor power | 5.5kw |
| Forming speed | 8--10m/min |
| Voltage | 380v,50hz |
| Roller station | 15 |
cutting system
A. hydraulic cutter
B. Blade and mould material:Cr12 steel with quenched treated 60-62°
C. Cutting system advanced hydraulic drive,after automatic cutting after forming.
control system
A. PLC: taida form Taiwan
B. Coder:from south korea
hydraulic system
A. advanced hydraulic system from taiwan
B. Power:3kw
Spare Parts
1) Easy damaged parts: conk 2 pcs, fuse-link 4 pcs
2) Rubber mat 1 pcs;
3) Bolt spanner 1 pcs
