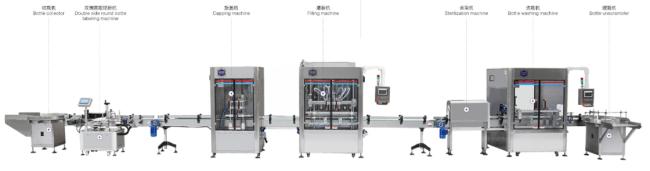

1000ml Liquid Filling Capping And Labeling Machine Production Line
1000ml Liquid Filling Capping And Labeling Machine Production Line
Brief Introduction of Equipment
This machine is a quantitative automatic liquid filling machine,which can be used for filling liquids, thin, viscous and thick bodies.It is suitable for all kinds of round bottles, flat bottles andother special-shaped bottles.The design of this machine adoptslinear motion.The PLC logic controller and various detection andinduction devices and the
retracting and unfolding of the cylinderachieve the purpose of automatic control, with bottle filling, nobottle filling, filling without foam and dripping, and the mostadvanced touch screen operation screen It is at the touch of abutton and fully complies with GMP standards.
Main configuration
| Program Controller | Siemens, Germany |
| Touch screen | German Siemens 7-inch color |
| Pneumatic components | Taiwan AIRTAC/Japan SMC |
| Capping motor | Servo motor |
| Photoelectric sensor | Germany LEUZE or Germany SICK,Japan Panasonic |
| The beginning of relay and air | French spinner, Shenle, Delixi |
| Suction pump | customer's choice |
| Motor inverter | Siemens, Germany |
| Conveying speed motor | 750W domestic frequency conversion motor |
| Bottle unscramble method | bottle feeder |
| Flling equipment type | linear |
| Flling quantitative principle | piston type |
| Conveyor belt material | 82.6mm wide POM chain belt, speed0-15/min, height above ground 750mm± 25mm |
| Number of filling heads | 8 Heads |
| Filling range | 500ml-1000ml |
| Filling speed | 200-2500 bottles/hour |
| Filling machine sealing ring material | PTFE, fluorine rubber |
| Machine cover | 304# stainless steel, material tank, filling nozzleand liquid contact parts are made of 316# stainless steel,foodgrade PP |
| Exposed parts | 304# stainless steel, anodized aluminum alloy,electroplated 45# steel, plastic parts |
| Power | about 4.2KW/220V |
| Air pressure | 0.6-0.8MPa |
◆ lt can be compatible with a certain range of bottles of different shapes and
specifications.The specific bottle must be placedon the machine to pass the test.
