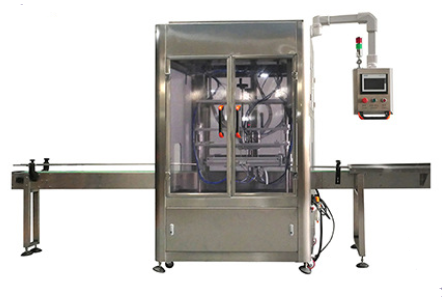

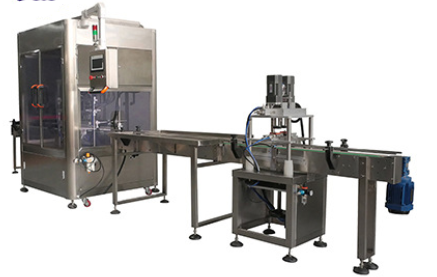

Peanut Oil Automatic Packaging Machine , 1800bph Oil Bottle Filling Cap Machine
Peanut Oil Automatic Packaging Machine 1800bph Oil Bottle Filling Cap Machine
Brief lntroduction of Equipment
This series of filling machines are designed based on the principle of fixed liquid volume. They are especially suitable forfilling liquid or high-foam, high-viscosity products.lt is an idealfilling machine for high-viscosity products in the pharmaceuticaland food industries. This model has simple structure, stableperformance, economical and practical. The circuit and gas circuit system selects high-quality components from well-knownbrands to ensure its excellent product quality. It is equipped withthree filling modes: straight—through, anti-drip, and lifting.
Technical parameters of 6-heads self-flow filling machine
| Number of filling head | 6 Heads |
| Filling capacity | 1000-5000ml |
| Filling form | Multiple nozzle into bottle fast and slow filling |
| Filling speed | 1200-1800bottles/hour |
| Filling accuracy |
+-1% |
| Air pressure | 0.6-0.8MPa |
| Power | Approximately 2.2Kw/380V Three-phasefive lines |
| Main tank capacity | 220 liters(with liquid level switch,feeding pipe inserted aat bottom,material coverto prevent foam overflow) |
| Lid putting form | Vibration plate cover |
| Gland form | Belt gland |
| Material | The rack is made of 304 SS |
| Control system | PLC+Touch screen |
