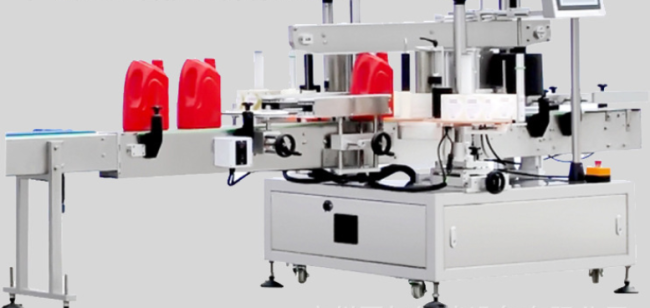

Silver Plastic Bottle Labeling Machine Cap Sealer 20bpm
Price:
Negotiable
MOQ:
one set
Delivery Time:
25-50 work days
Brand:
Gracias
Product Description
Silver Plastic Bottle Labeling Machine Cap Sealer 20bpm
Technical parameters of capping machine
| Lid feeding form | Elevator |
| Suitable for specifications | According to the model provided by the customer |
| Capped form | Gripper take cap pneumatic screw cap(different specifications need to change the head and other accessories) |
| Speed | 20 bottles/min |
| Material | The rack is made of stainless steel |
| Program control | Share with filling machine |
| Power | 500W |
| Pressure | 0.6-0.8MPa |
| Conveyor | Shared with filling machine |
| Voltage | 220V single phase |
Technical parameters of filling machine
| Filling heads | 4 heads |
| Filling capacity | 500-5000ml |
| Filling form | Servo piston filling |
| Speed | 5-8 bottles/min(5L bottle) |
| Accuracy | +-1% |
| Material | Filling rack with stainless steel |
| Control system | PLC+Touch screen |
| Contact with liquid parts | 304 SS,PVC |
| Pressure | 0.6-0.8MPa |
| Conveyor | 152mm chain with a height of 750 +- 25mm |
| Transport motor | 370W frequency control motor |
| Power | 2KW/380V 3 phase 5line |
| Trough capacity | 50L |
| Protective device | Storage tank shutdown alarm |
