5000ML Single Head Liquid Piston Filling Machine 30bpm 10W
Price:
As discuss
MOQ:
One set
Delivery Time:
7-10 work days
Brand:
Gracias
Product Description
Feature:

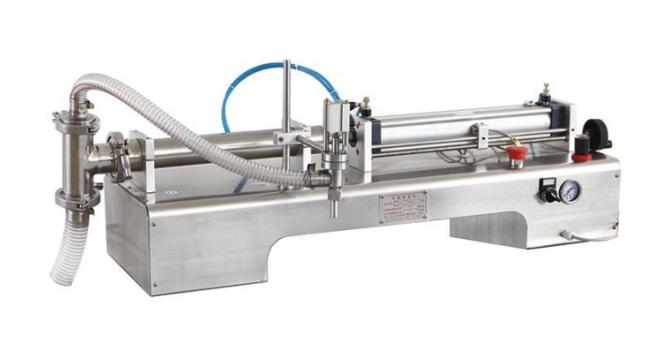

The single-head liquid filling machine is a semi-automatic piston filling machine.A
piston is driven by the cylinder to extract and eject the material, the one-way valve is
used to control the flow of the material, and the reed switch is used to control the stroke
of the cylinder to adjust the filling volume. Mainly used for oral liquid, disinfectant, eye
wash, nutrient solution, perfume and liquid packaging in special industries.
Parameter:
| Model |
DY-1 |
| Filling head | 1-4 |
| Filling volume | 5-5000ML |
| Filling capacity | 10-30b/m |
| Filling accuracy | <±1% |
| Power | 10W |
| Air pressure | 0.4-0.6MPa |
