PV-16A10F85L PV-20A10F85L PV-25A10F85L PV-30A10F85L SPXV Series Solar 1500V DC 10x85mm PV Cylindrical Ferrule Fuse

PV-16A10F85L PV-20A10F85L PV-25A10F85L PV-30A10F85L SPXV Series Solar 1500V DC 10x85mm PV Cylindrical Ferrule Fuse

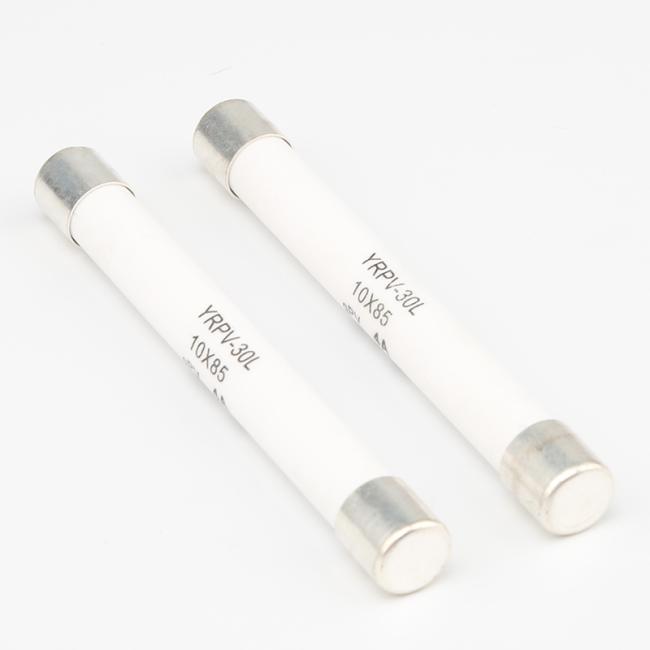

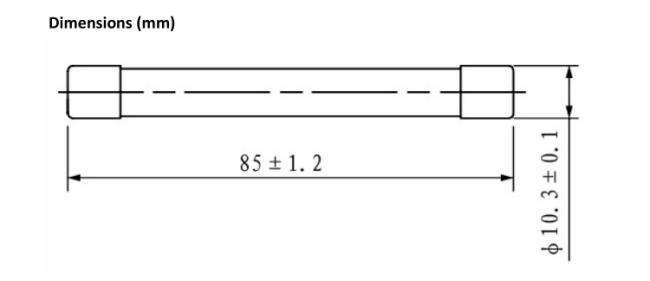

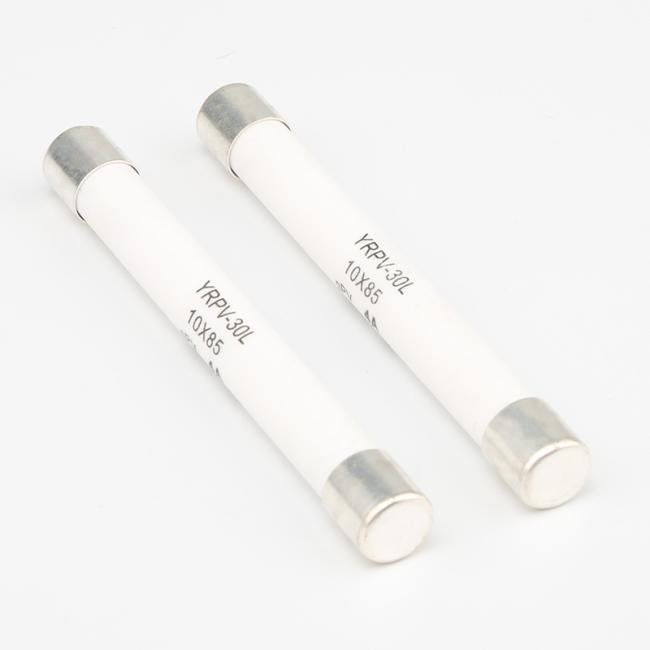

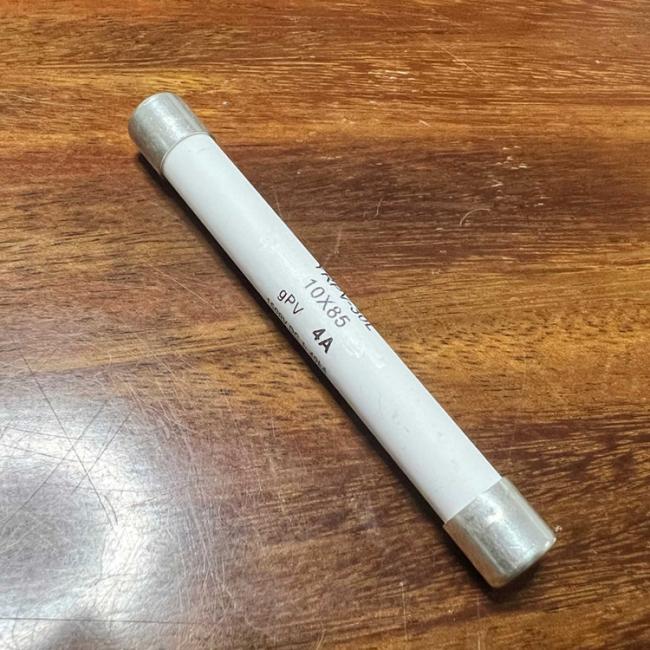

This photovoltaic (PV) fuse is a 10x85mm fuse designed specifically for protecting PV string wiring in utility scale photovoltaic systems operating at 1500VDC. With a minimum breaking capacity of 2xIn, the fuse ensures safe circuit interruption even under low fault current conditions commonly found in PV arrays. This fuse is suitable for all photovoltaic applications, including PV string and array level protection.

• Rated voltage: 1500 V d.c.
• Rated current: 2A, 3A, 4A, 5A, 6A, 8A, 10A,12A, 15A, 20A, 25A, 30A
• Breaking capacity: 20 kA d.c. 1 ms
• Class of operation: gPV

Features of PV-16A10F85L PV-20A10F85L PV-25A10F85L PV-30A10F85L SPXV Series Solar 1500V DC 10x85mm PV Cylindrical Ferrule Fuse

•Fuse is made of high quality ceramic and metal.
•Easy to Identify: Fuse can be easily identified by carved amp rating are figures on the top of the fuse for easy identification.

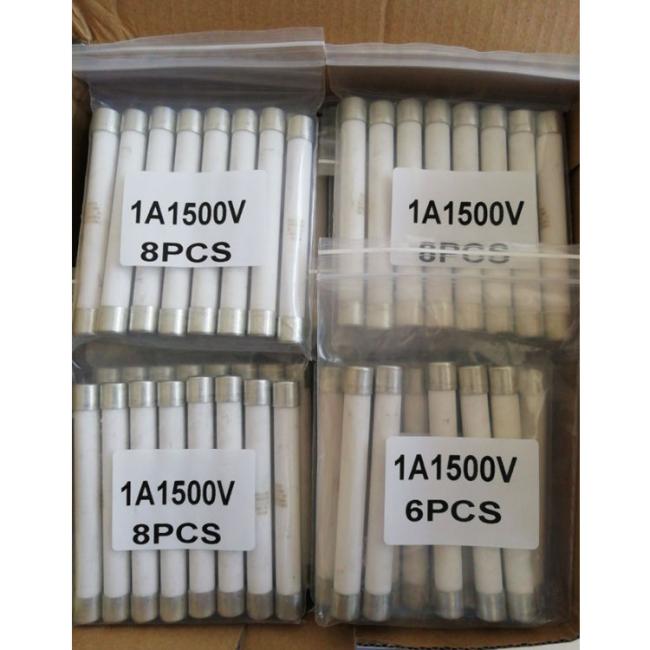

•Easy to Carry & Store All the ceramic fuses are sorted , super easy for you to carry and store.
•Great Compatibility: which makes your circuit connections more secure and reliable.
Please carefully swap the broken fuse of your appliance and replace with our fuse and make sure everything is tight and safe to be re-plug.

Application of PV-16A10F85L PV-20A10F85L PV-25A10F85L PV-30A10F85L SPXV Series Solar 1500V DC 10x85mm PV Cylindrical Ferrule Fuse

•Inverters
•Combiner boxes
