High Amp 100A 120A 200A 250A 300A 350A 400A 450A 500A 80V Ceramic AMG ANM MEGA Fuse
High Amp 100A 120A 200A 250A 300A 350A 400A 450A 500A 80V Ceramic AMG ANM MEGA Fuse

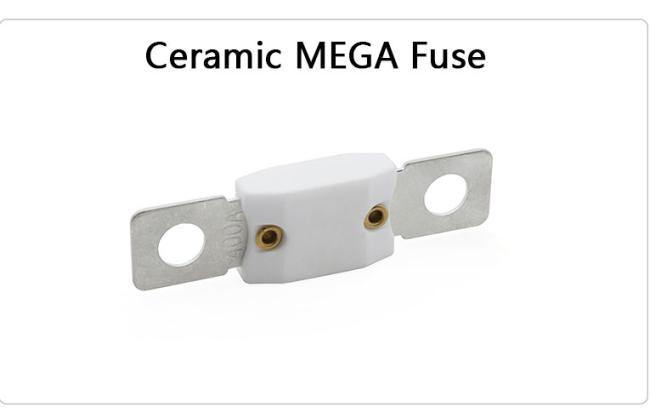

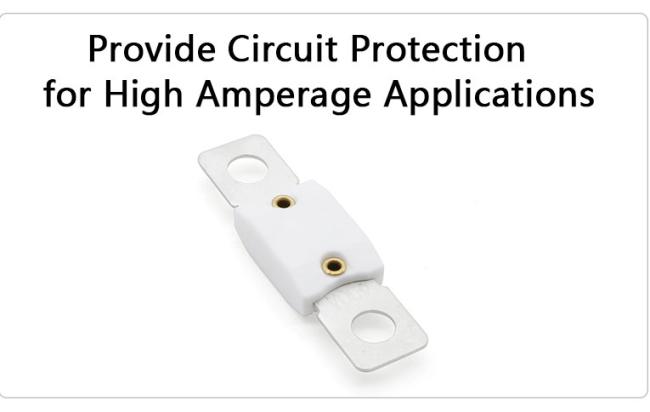

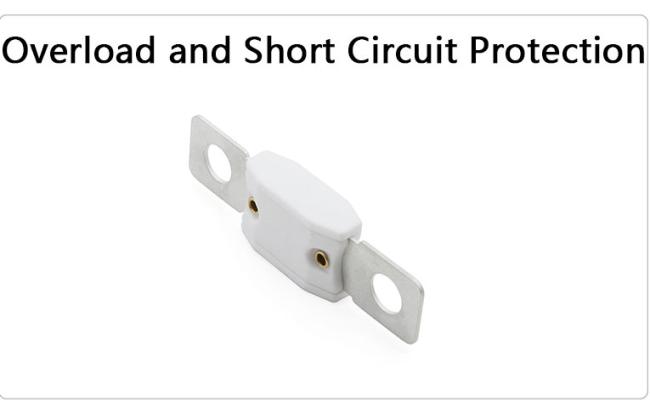

ANM-C Ceramic Fuse is designed for high current circuit protection up to 500A. ANM-C Fuse also provides time delay characteristics. This fuse is ideal for battery and alternator protection application and other heavy gauge cables requiring ultra-high current protection.
Specifications
ANM Ceramic Auto Fuse
Model: Middle stud fuse

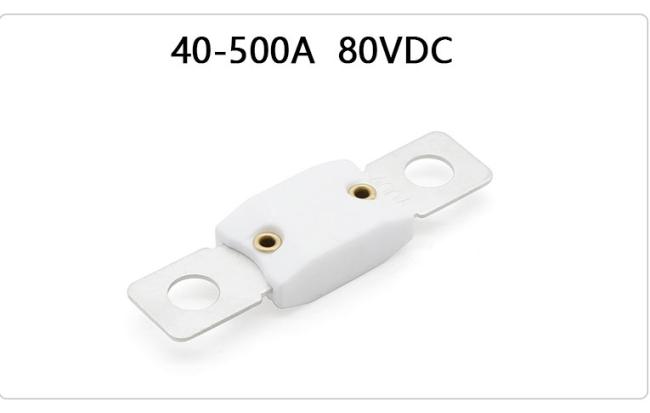

Rated current : 40A to 500A
Rated voltage : 80V DC
Breaking capacity: 2000A@80V DC
Material: Ceramic+Copper
Color: White
Operating temperature: -40℃～+125℃
Executive standard: ISO 8820-5
Certification: ROHS

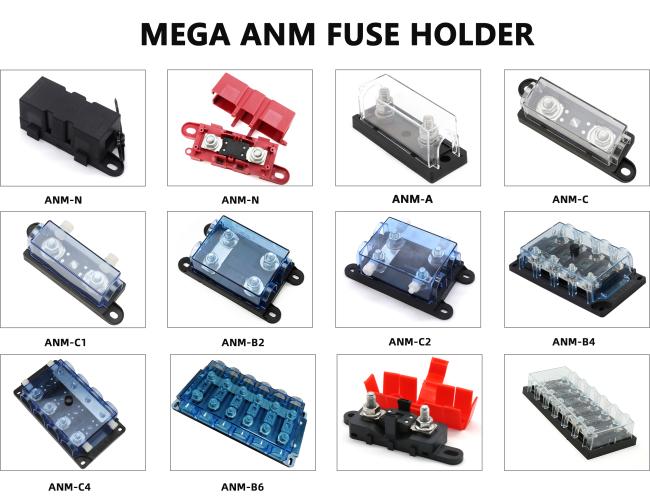

Recommended fuse holder: ANM-H, ANM-B, ANM-C, ANM-B2, ANM-C2, ANM-B4, ANM-C4, etc
Fusing Characteristics
%Rating current | Fusing time | |
Min | Max | |
100% | 4 h | ---- |
135% | 120 s | 1800 s |
200% | 1 s | 15 s |
350% | 0.3 s | 5 s |
600% | 0.1 s | 1 s |
Fuse List
Part Number | Rated Current(A) |
ANM-C-40A | 40 A |
ANM-C-50A | 50 A |
ANM-C-60A | 60 A |
ANM-C-70A | 70 A |
ANM-C-80A | 80 A |
ANM-C-100A | 100 A |
ANM-C-125A | 125 A |
ANM-C-150A | 150 A |
ANM-C-175A | 175 A |
ANM-C-200A | 200 A |
ANM-C-225A | 225 A |
ANM-C-250A | 250 A |
ANM-C-300A | 300 A |
| ANM-C-350A | 350 A |
| ANM-C-400A | 400 A |
| ANM-C-450A | 450 A |
| ANM-C-500A | 500 A |
Dimension(Unit:mm)

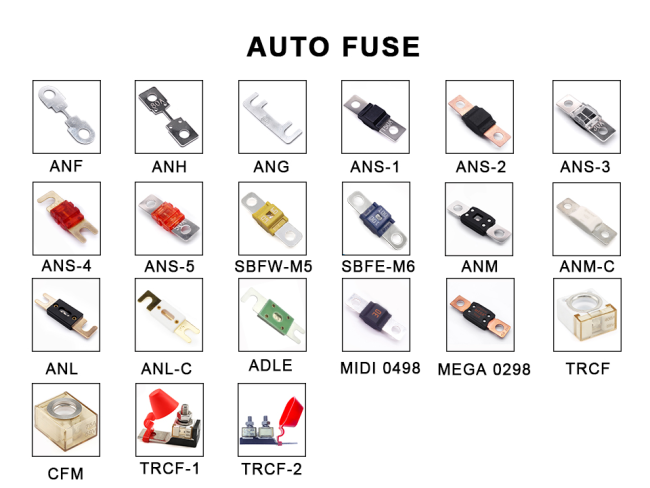

More Products for Options
