Glass Fiber DC 80V AC 125V 500A 600A 675A 700A 750A 800A CNL ANL ANL CNN ANN Fuse

Price Negotiable
Price: Negotiable
MOQ: 1000PCS
Delivery Time: 5-7 Days
Brand: Tian Rui
Product Description



Glass Fiber DC 80V AC 125V 500A 600A 675A 700A 750A 800A CANL ANL ANL CNN ANN Fuse





Non-time-delay low voltage limiter for use in isolating faults in battery operated systems,Lift trucks, scissor lifts, pallet movers, and other low voltage battery operated equipment used to move hazardous materials.

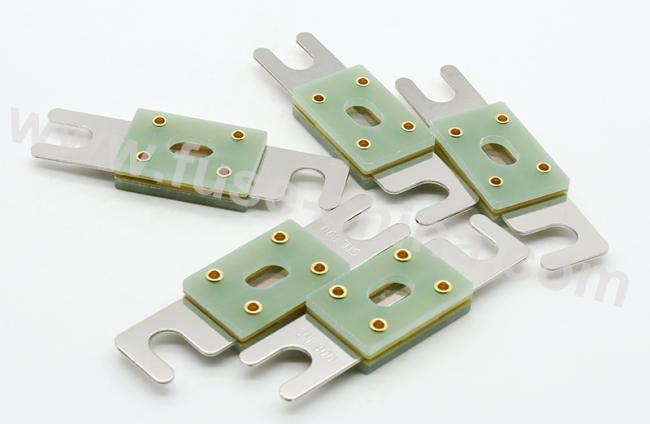

CANL Fuse



Specification



ANL Bakelite Auto Fuse


Model: Large stud fuse

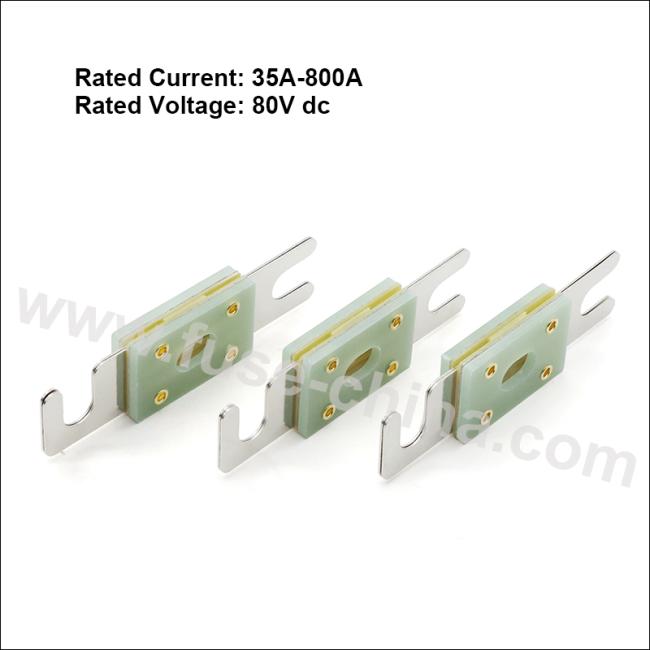

Rated current : 35A to 800A


Rated voltage : 80V


Material: Glass Fiber+Zinc Alloy


Color: Green

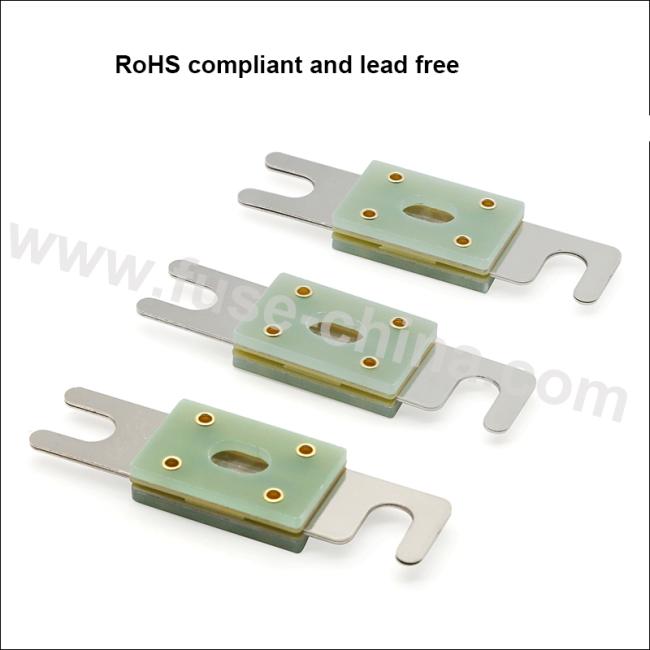

Certification: ROHS



Standard: DIN43560/1







Insulating body

Glass Fiber

Terminal

Brass Alloy

Finishing

Nickel -plated



Electrical Characteristic



% of Rated Amp

Clearing Time

250%

Max 300 s

100%

Min 4h



Rated Amp

Rated Voltage

                                      35A

80V

40 A

50 A

60 A

80 A

100 A

125 A

130 A

150 A

175 A

180 A

200 A

225 A

250 A

275 A

300 A

400 A

500A
600A
675A
700A
800A
