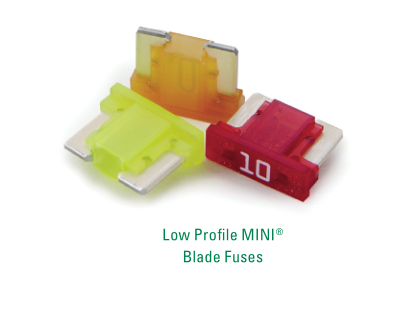

The Low Profile MINI fuse has similar performance characteristics as the standard MINI fuse. The lower overall height allows for more space and weight savings. The Low Profile MINI fuse is designed to mate with tuning-fork terminals, which provides additional weight and material savings in fuse box designs by eliminating the need for female box terminals.
Specification
| Voltage Rating: | 58 VDC |
| Interrupting Ratings: | 1000A @ 58 VDC |
| *Recommended Environmental Temperature: | -40°C to +125°C |
| Terminals Material: | Silver plated zinc alloy |
| Housing Material: | PA66 |
| Complies with: | ISO 8820-9 |
Ordering Information
|
Part Number |
Ratings |
Package Size |
| 0891xxx.NXS | 2 - 30 | 5000 |
| 0891xxx.U | 2 - 30 | 500 |
| 0891xxx.H | 2 - 30 | 100 |
Ratings
| Part Number | Current Rating (A) | Housing Material Color | Test Cable Size (mm2) |
Typ. Voltage Drop (mV) |
Typ. Cold Resistance (mΩ) |
Typ.I2t (A2s) |
| 0891002._ | 2 | 0000 | 0.5 | 151 | 54.2 | 3 |
| 0891005._ | 5 | 0000 | 0.5 | 114 | 17.21 | 22 |
| 089107.5_ | 7.5 | 0000 | 0.75 | 105 | 10.65 | 53 |
| 0891010._ | 10 | 0000 | 1 | 97 | 7.59 | 102 |
| 0891015._ | 15 | 0000 | 1.5 | 75 | 4.7 | 198 |
| 0891020._ | 20 | 0000 | 2.5 | 99 | 3.35 | 420 |
| 0891025._ | 25 | 0000 | 2.5 | 96 | 2.56 | 613 |
| 0891030._ | 30 | 00000 | 4 | 96 | 2.06 | 1100 |
The typical I2t is an average value calculated from the breaking capacity tests by using the melting time before the arcing occurs.

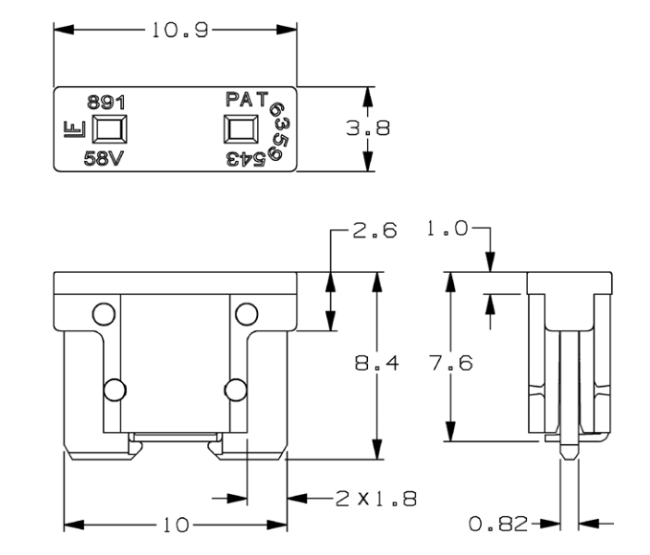

Dimensions
Time-Current Characteristics
| % of Rating | Opening Time Min / Max (s) |
| 110 | 360,000 / ∞ |
| 135 | 0.75 / 120 |
| 200 | 0.15 / 5 |
| 350 | 0.08 / 0.25 |
| 600 | 0.03 / 0.1 |

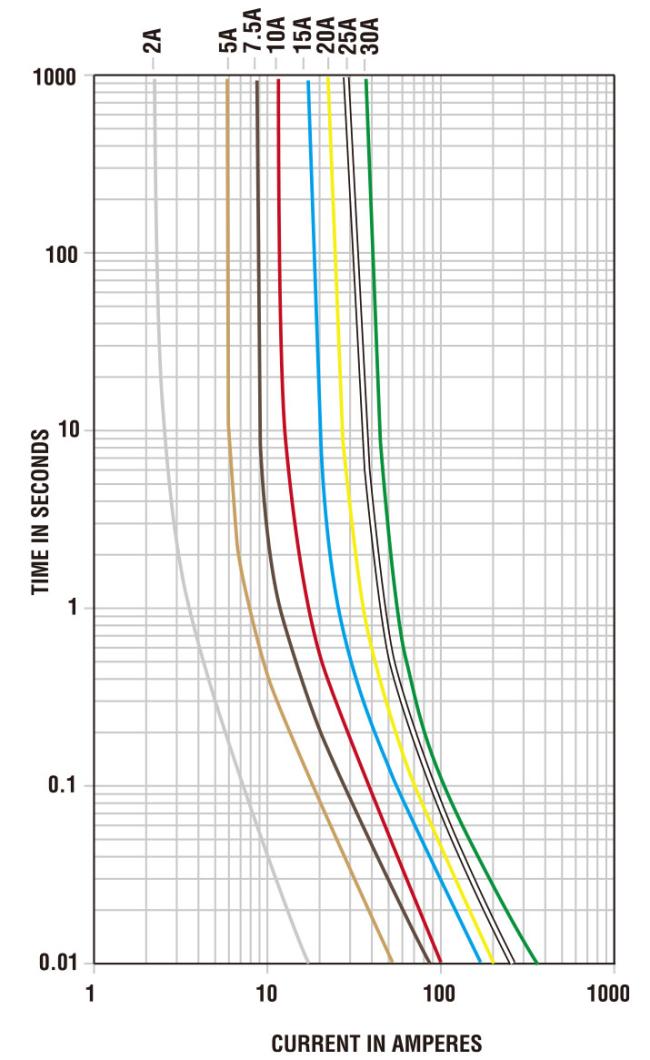

Time-Current Characteristic Curves
0891002.NXS, 0891005.NXS, 089107.5NXS, 0891010.NXS, 0891015.NXS, 0891020.NXS, 0891025.NXS, 0891030.NXS
0891002.U, 0891005.U, 089107.5U, 0891010.U, 0891015.U, 0891020.U, 0891025.U, 0891030.U
0891002.H, 0891005.H, 089107.5H, 0891010.H, 0891015.H, 0891020.H, 0891025.H, 0891030.H
