Littelfuse Car Mini Blade Fuse 997 0997 Series 58V DC 0997005WXN 0997010WXN 0997015WXN
Littelfuse Car Mini Blade Fuse 997 0997 Series 58V DC 0997005WXN 0997010WXN 0997015WXN

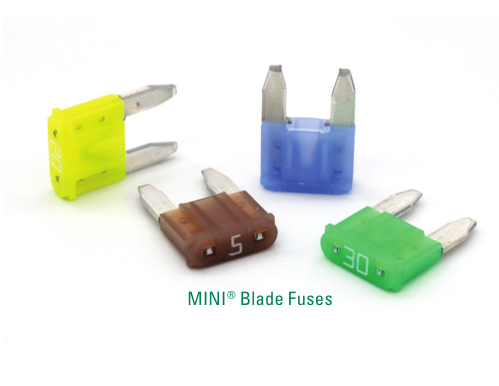

MINI Blade Fuses Rated 58V
MINI style fuse for use in 42V Systems. Same Time-Current characteristic as the 32V MINI fuse. Fits into standard MINI® fuse sockets. Has a rejection feature to prevent fuses with lower voltage rating from being wrongfully inserted into the circuit. Current rating 2A - 30A @58 VDC max.
Specification
| Interrupting Rating: | 1000A @ 58 VDC |
| Voltage Rating: | 58 VDC |
| *Component Level Temperature Range: | -40°C to +125°C |
| Terminals: | Silver plated zinc alloy |
| Housing Material: | PA66 |
| Complies with: | SAE J2077, SAE 2576 ISO 8820 UL 248 Special Purpose Fuses |
Ordering Information
| Part Number | Rating | Package Size |
| 0997xxx.WXN | 2 - 30 | 3000 |
Ratings
| Part Number | Current Rating (A) | Housing Material Color | Test Cable Size (mm2) |
Typ. Voltage Drop (mV) | Cold Resistance (mΩ) | I2t(A2s) |
| 0997002_ | 2 | 0000 | 0.5 | 171 | 55.60 | 2.8 |
| 0997003_ | 3 | 0000 | 0.5 | 153 | 33.75 | 9.4 |
| 0997004_ | 4 | 0000 | 0.5 | 121 | 23.48 | 17 |
| 0997005_ | 5 | 0000 | 0.5 | 129 | 17.75 | 25 |
| 099707.5_ | 7.5 | 0000 | 0.75 | 135 | 10.85 | 68 |
| 0997010_ | 10 | 0000 | 1 | 108 | 7.42 | 93 |
| 0997015_ | 15 | 0000 | 1.5 | 98 | 4.58 | 270 |
| 0997020_ | 20 | 0000 | 2.5 | 96 | 3.21 | 380 |
| 0997025_ | 25 | 0000 | 2.5 | 86 | 2.36 | 625 |
| 0997030_ | 30 | 0000 | 4 | 87 | 1.85 | 1100 |
Time-Current Characteristics
| % of Rating | Opening Time Min/ Max (s) |
| 110 | 360,000s/- |
| 135 | 0.75s/ 600 s |
| 200 | 0.15s/5s |
| 350 | 0.080s/0.500 S |
| 600 | 0.030s/0.100s |

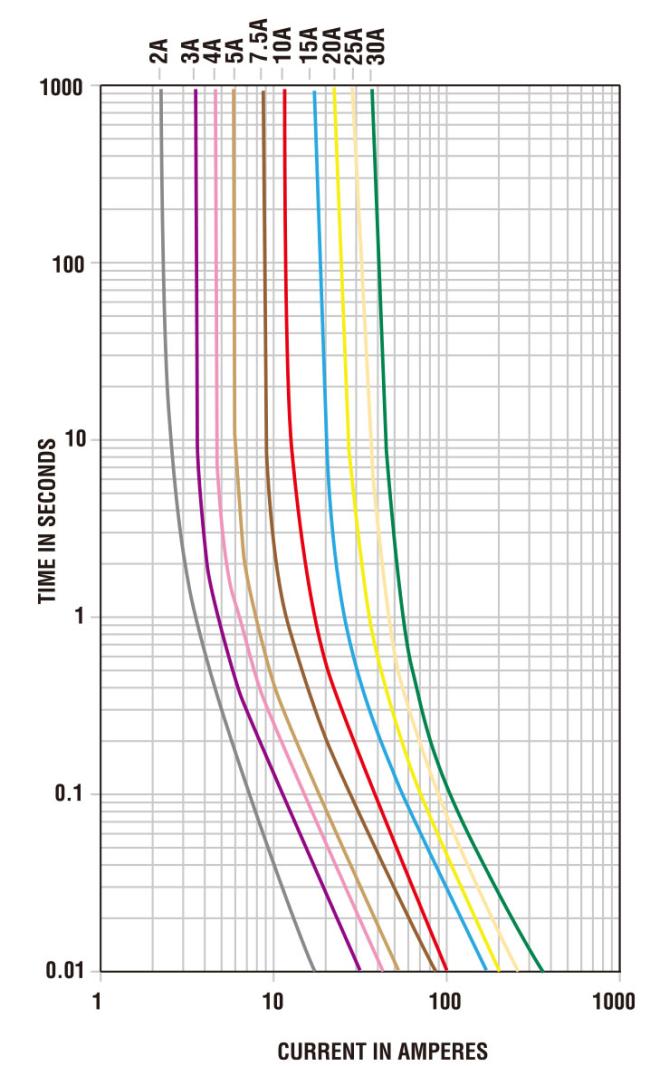

Time- Current Characteristic Curves
0997004.WXN, 0997005.WXN, 099707.5WXN, 0997010.WXN, 0997015.WXN, 0997020.WXN, 0997025.WXN, 0997030.WXN
