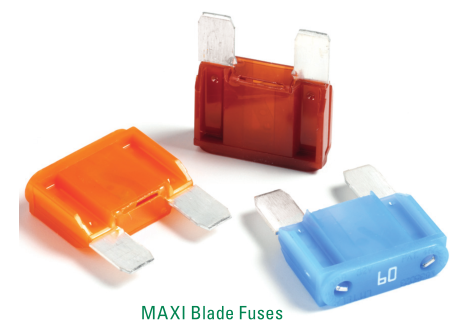

MAXI Blade Fuses Rated 32V
The MAXI fuse uses “Diffusion Pill Technology” to provide predictable time delay characteristics and low heat dissipation.
|
Specification |
MAXI (Silver Plated) |
MAXI Sn(Tin Plated) |
| Interrupting Rating: | 1000A @ 32 VDC | 1000A @ 32 VDC |
| Voltage Rating: | 32 VDC | 32 VDC |
| *Component Level Temperature Range: | -40°C to +125°C | -40°C to +125°C |
| Terminals: | Silver plated zinc alloy | Tin plated zinc alloy |
| Housing Material: | PA66 | PA66 |
| Complies with: | SAE J 1888, SAE 2576, ISO 8820-3:2002(E) | SAE J 1888, SAE 2576, ISO 8820-3:2002(E) |
Ordering Information
|
Part Number |
Ratings |
Package Size |
| 0299xxx.ZXNV | 20 - 80 | 1200 |
| 0299xxx.L | 20 - 80 | 50 |
| 0299xxx.TXN | 20 - 80 | 10 |
| 0299xxx.ZXT | 20 - 80 | 1200 |
Ratings
| Part Number | Current Rating (A) | Housing Material Color | Test Cable Size (mm2) |
Typ. Voltage Drop (mV) |
Typ. Cold Resistance (mΩ) |
Typ.I2t (A2s) |
| 0299020._ | 20 | 0000 | 4 | 76 | 3.1 | 1100 |
| 0299025._ | 25 | 0000 | 4 | 75 | 2.39 | 2100 |
| 0299030._ | 30 | 0000 | 4 | 77 | 1.95 | 4100 |
| 0299035._ | 35 | 0000 | 4 | 75 | 1.71 | 6000 |
| 0299040._ | 40 | 0000 | 4 | 75 | 1.42 | 8500 |
| 0299050._ | 50 | 0000 | 6 | 73 | 1.10 | 11300 |
| 0299060._ | 60 | 0000 | 6 | 77 | 0.89 | 15300 |
| 0299070._ | 70 | 0000 | 10 | 61 | 0.64 | 21200 |
| 0299080._ | 80 | 0000 | 10 | 62 | 0.54 | 43600 |
The typical I2t is an average value calculated from the breaking capacity tests by using the melting time before the arcing occurs.

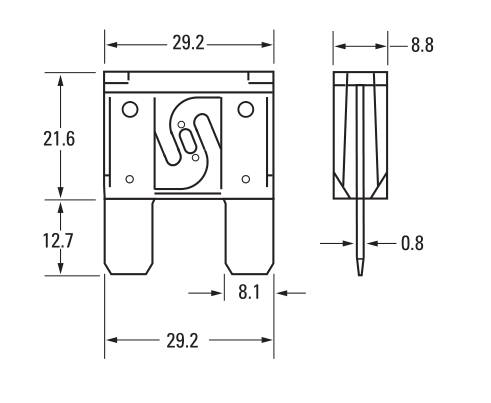

Dimensions
Time-Current Characteristics
| % of Rating | Opening Time Min / Max (s) |
| 100 | 360,000 / ∞ |
| 135 | 60 / 1800 |
| 200 | 2 / 60 |
| 350 | 0.02 / 7 |
| 600 | 0.04 / 1 |

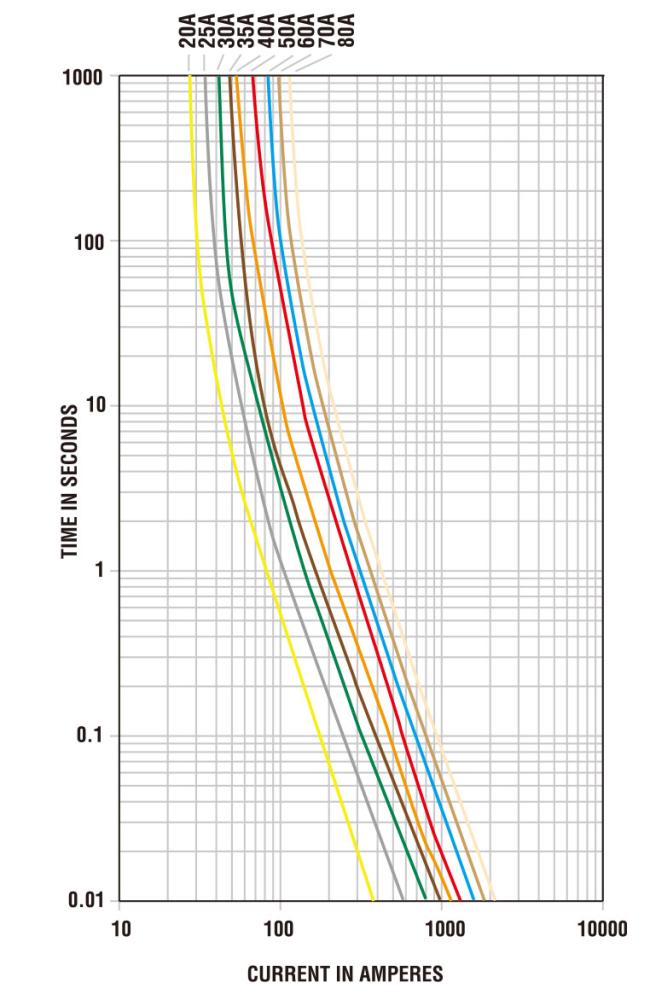

Time-Current Characteristic Curves
0299020.ZXNV, 0299025.ZXNV, 0299030.ZXNV, 0299035.ZXNV, 0299040.ZXNV, 0299050.ZXNV, 0299060.ZXNV, 0299070.ZXNV, 0299080.ZXNV
0299020.L, 0299025.L, 0299030.L, 0299035.L, 0299040.L, 0299050.L, 0299060.L, 0299070.L, 0299080.L
0299020.TXN, 0299025.TXN, 0299030.TXN, 0299035.TXN, 0299040.TXN, 0299050.TXN, 0299060.TXN, 0299070.TXN, 0299080.TXN
0299020.ZXT, 0299025.ZXT, 0299030.ZXT, 0299035.ZXT, 0299040.ZXT, 0299050.ZXT, 0299060.ZXT, 0299070.ZXT, 0299080.ZXT
