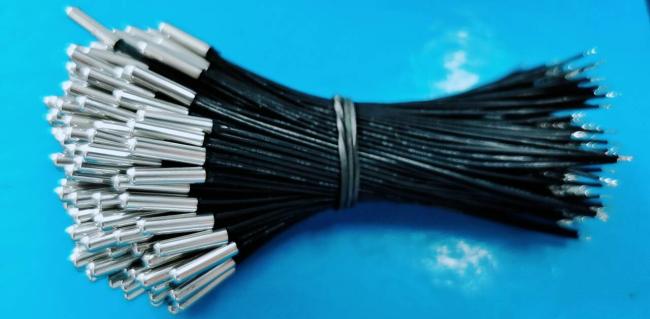

3x12mm Stainless Steel Probe NTC Thermistor Sensor 10K OHM 3435K 1%
3x12mm Stainless Steel Probe NTC Thermistor Sensor 10K OHM 3435K 1%
This temperature Sensor is made with high precision, reliable NTC Thermistor connected to qualified wire, which is wrapped with insulated, heat conductive and stainless steel materials into desired shapes, so as to facilitate long-distance temperature measurement and control and installation.
Cylinder Head Temperature Sensor
Resistance at 25C: 10KΩ±1%
B value: 3435K±1%

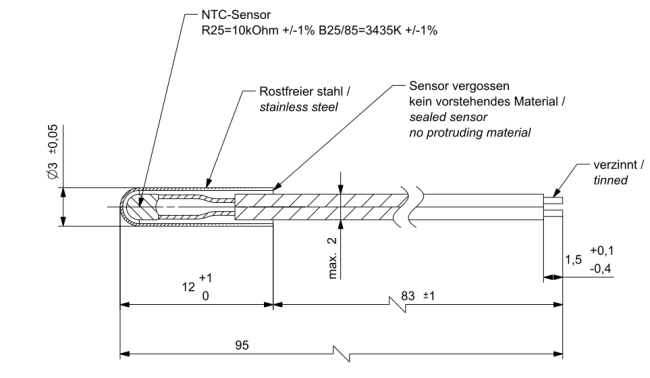

Probe size: 3x12mm
Housing material: Stainless Steel
Cable: PVC wire, customized length
Withstand Voltage: 1500V/3mA/5s
Rated Power: 10mW
Response Time: 3 ~ 20s
Specifications
| Resistance | R25℃=10K Ω±2% |
| B Value | B25/85=3435K±1% |
| Operating temperature | -30~100℃ |
| Application | water heater,wall hanging stove,electric kettle, coffee maker, etc |
