Replacement Littelfuse 245050 Series Manual Battery Disconnect Switch Chrome Lockout Lever Kit for Heavy Duty Trucks

Replacement Littelfuse 245050 Series Manual Battery Disconnect Switch Chrome Lockout Lever Kit for Heavy Duty Trucks

Description000000000000000000000000000000000000000000000000000

The 24505 Series Battery Disconnect Switch Lockout Lever Kit allows you to use a padlock (not included) to securely lock a lever-actuated metal case master battery disconnect switch in the OFF position. Disconnect switch lockout is required for certain applications to comply with lockout/tagout safety regulations.

These lockout/tagout kits include a steel switch lockout bracket and a die-cast lever. They are available in a metallic version as well as red, yellow, and chrome powder-coated finishes, which makes it simple to color-code switches by function or application by using different-colored lockout
lever kits.

In addition, these manual battery disconnect lockout/tagout kits are available in versions that accommodate a 7 mm or 7.9 mm lock shackle size for different-sized padlocks.


Features00000000000000000000000000000000000000000000000000000

• Compatible with lever-actuated master disconnect switches with a 3/4” diameter (19.1 mm) mounting stem, including 75900 Double Pole series,
2484 series, M-284 series, and M-290 series switches

• Each lockout/tagout kit includes a steel switch lockout bracket and die-cast lever

• Available in a metallic version as well as red, yellow, and chrome powder-coated finishes, enabling the color-coding of switches by function or application

• Available to accommodate a 7 mm or 7.9 mm lock shackle size, which allows you to choose the lockout/tagout kit that matches your preferred padlock (not included)

Application000000000000000000000000000000000000000000000000000

• Heavy-Duty Trucks

• Construction

• Agriculture

• Mining

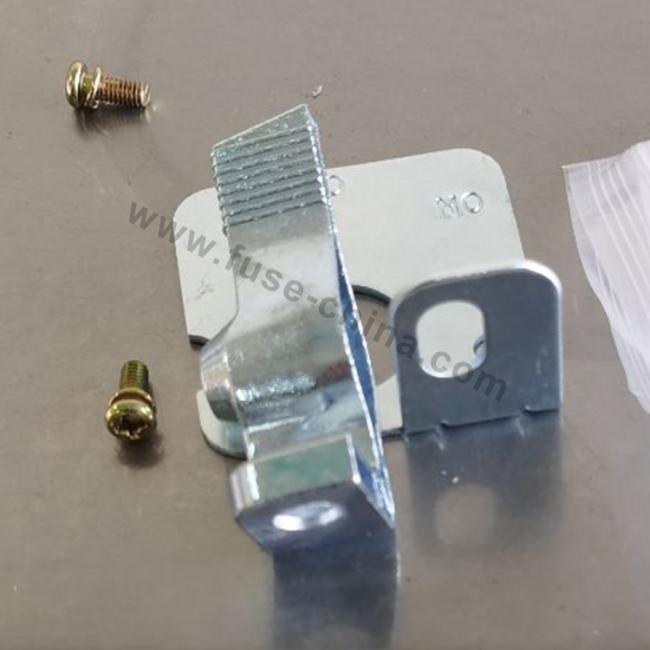

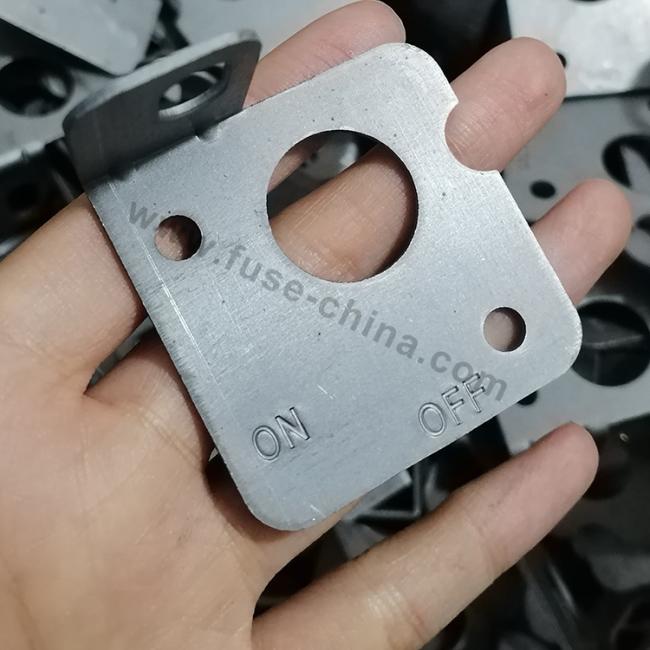

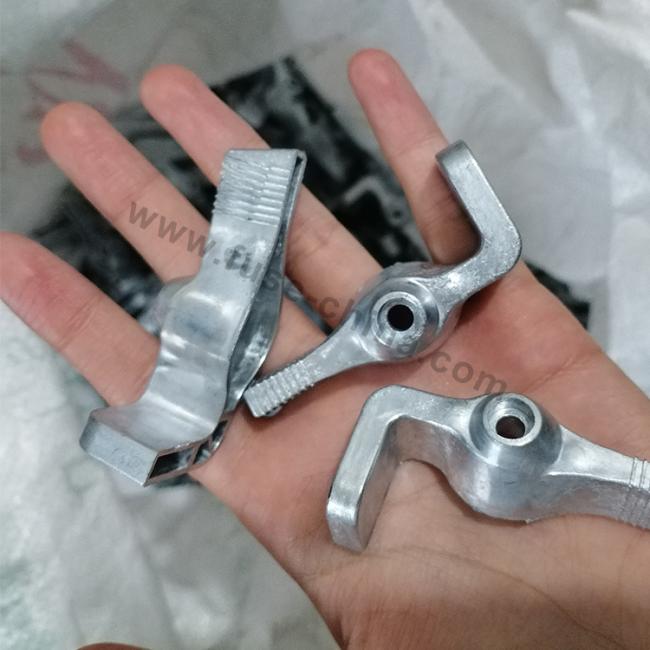

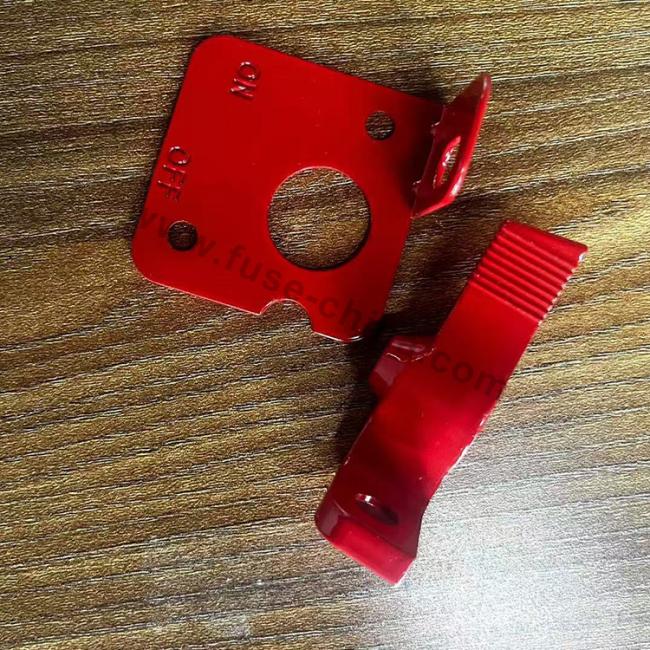

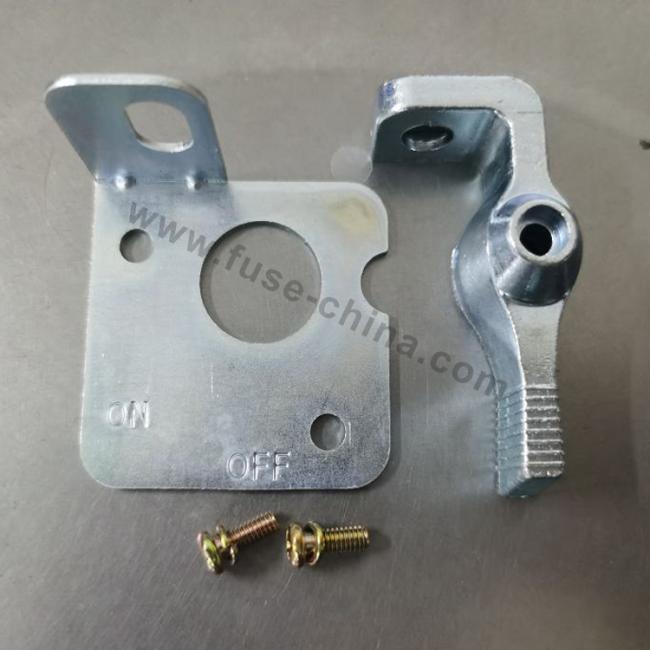

Product Show0000000000000000000000000000000000000000000000000

Product Show0000000000000000000000000000000000000000000000000
