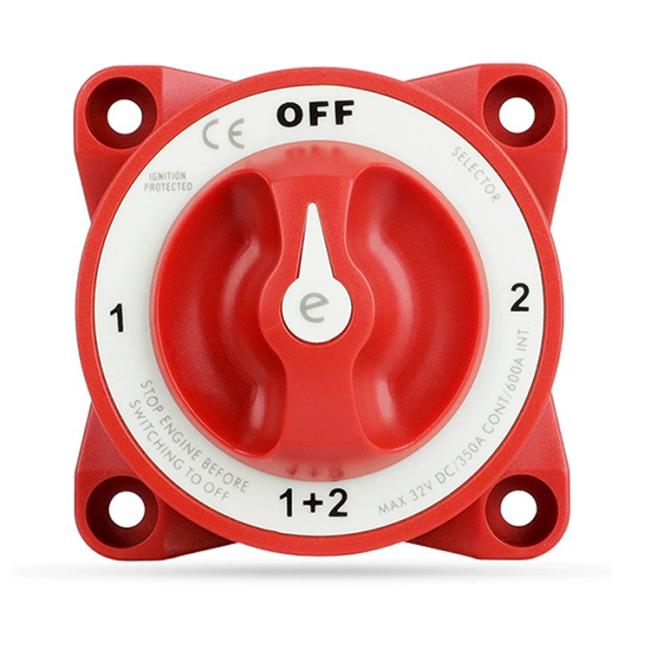

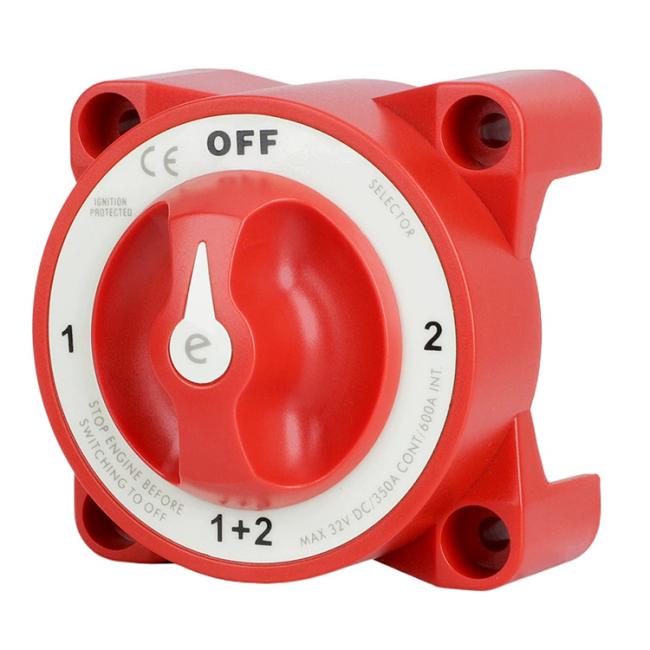

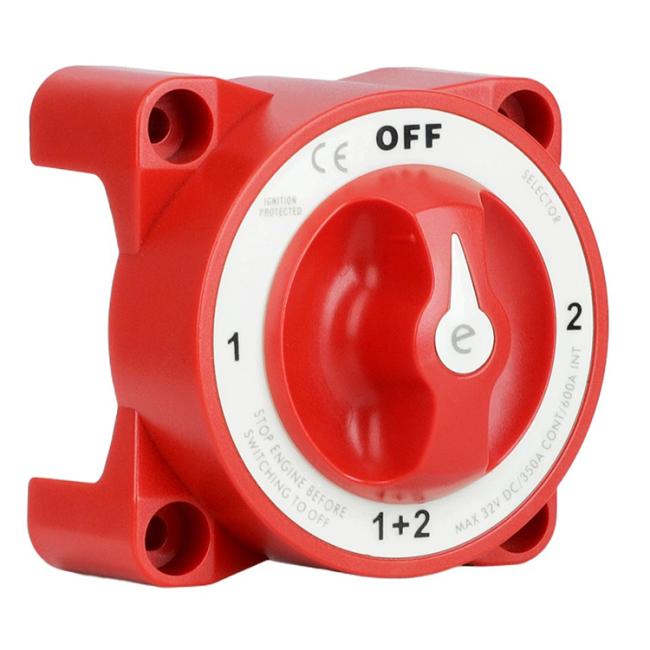

32V DC 350A Marine Battery Switch 4 Position Red Tinned Copper
9002E E Series 32V DC 325A Selector 4 Position Red Battery Switch
This product is suitable for passenger cars, trucks, tractors, professional racing cars, and now it has been applied to many ordinary RVs abroad. At present, this kind of modification combination switch is used in many coastal cities in China, and the installation is simple.
Specification
|
Switch Type
|
Battery Switch
|
| Continuous Rating | 350Amps DC |
|
Intermittent Rating
|
600Amps DC
|
|
Cranking Rating |
1200Amps DC
|
| Voltage Rating | 32V DC |
| Operation Type | On-Off |

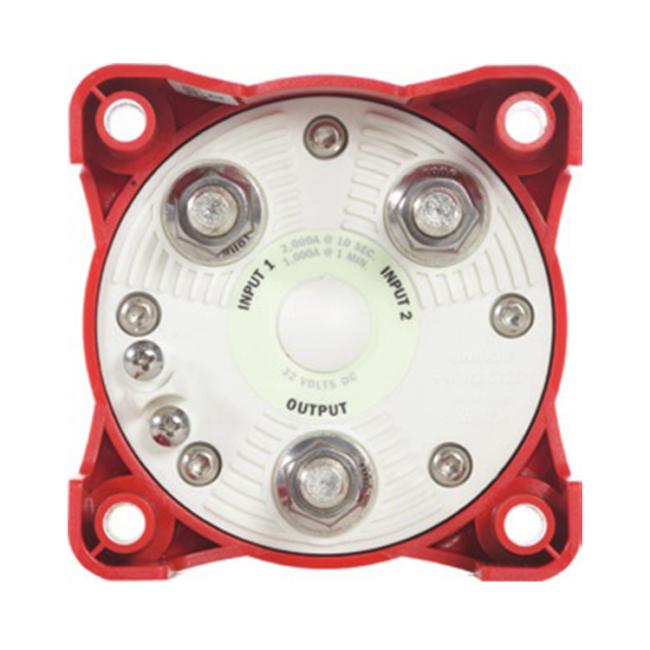

| Stud Material | Tinned Copper |
| Stud Size | 3/8''-16 |
|
Color
|
Red
|
|
Switch Type
|
Selector 4 Position
|
|
Switch Positions
|
4
|
|
Terminal Stud Torque
|
140 in-lb (15.82 Nm)
|
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |

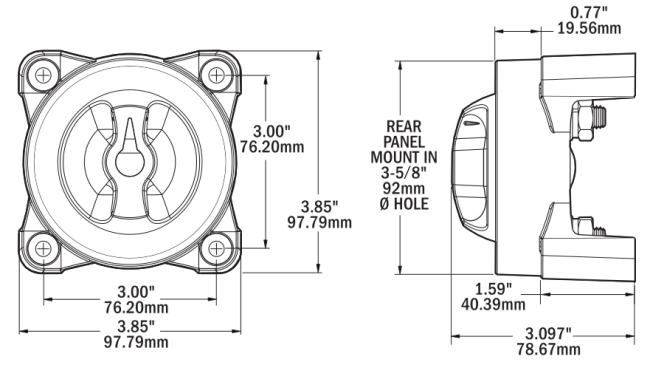

| Mounting Holes | Accept 1/4" (M6) Screw |
| Weight | 1.30lb (0.59 kg) |
Features
Includes AFD (Alternator Field Disconnect)

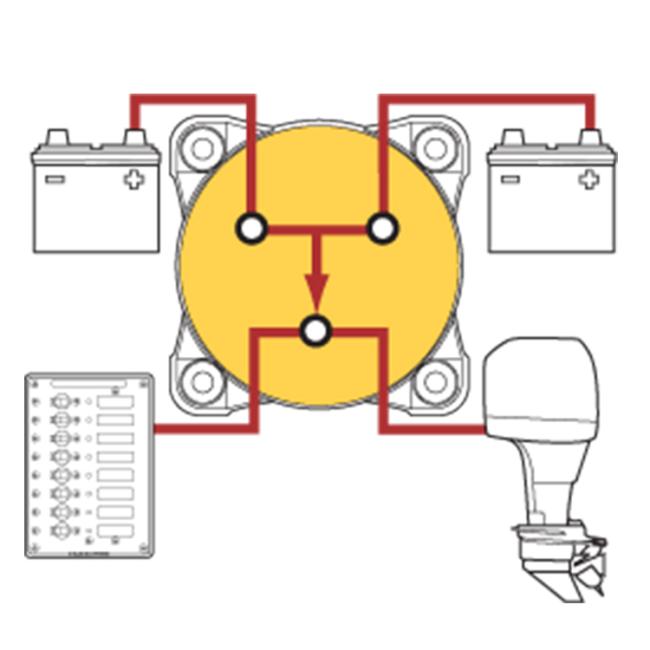

Make-before-break contact design allows switching between battery banks without power interruption
Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting
Function
Prevent leakage, protect the power supply, disconnect the battery safely.
Application
This battery master switch is widely used for Car, Marine, Boat, RV, Camper, Travel Trailer, Truck, ATV, UTV, Battery banks and other 0-48V Devices
